TMI Products Aegis 134W Programming Instructions

Digital movement

The Aegis 134W digital movement is designed to provide the ultimate in security with the

combined ease of operation and durability. The digital liquid crystal display and quartz

technology provides simplicity of operation with exceptional readability and opening accuracy

not obtainable in mechanical movements. The movement features instant open, which means the

unlocking pin does not release the lock until exactly 0 hour.

The movement is programmed using the winding

assembly.

Setting Real Time

After installation of the power cell (either to address inadequate power or to reinitiate

programming) the display on the movement will appear as in Fig 2

Corporate Headquarters: 127 SE 29

WWW.tmilock.com

Programming Instructions

Aegis 134W Digital

Movement

Fig 1

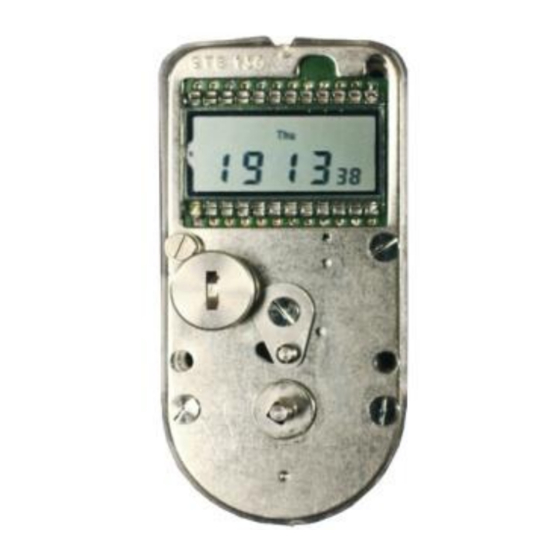

The display above shows that 7:13:38 PM

has been set as Real-Time and that the

day of the week is Thursday

Fig 2

St Topeka, Kansas 66605 USA Tel. 785-232-8705 Fax 785-232-2603

key supplied with the timelock

Table of Contents

Do you have a question about the Aegis 134W and is the answer not in the manual?

Page 1 Real-Time and that the day of the week is Thursday The Aegis 134W digital movement is designed to provide the ultimate in security with the combined ease of operation and durability. The digital liquid crystal display and quartz technology provides simplicity of operation with exceptional readability and opening accuracy not obtainable in mechanical movements.
Page 2 Begin installing the day of the week and the exact time of day in military format, by insert the winding key onto the winding arbor and rotate counter clockwise until you no longer feel any resistance on the winding key. Immediately, Mon will begin to flash. Refer to Fig 3 below. Fig 3 If Mon is not the current day of the week, rotate the winding key very slowly clockwise until the current day of the week is blinking.
Page 3 When all the days of the week are programmed, a verifying program takes effect automatically. The entire program sequence will step through each day of the week allowing you to verify the accuracy of your programmed opening days and times. If the days and times are correct, take no action, allowing the verifying program to run its course.
