Summary of Contents for TMI Products VH31

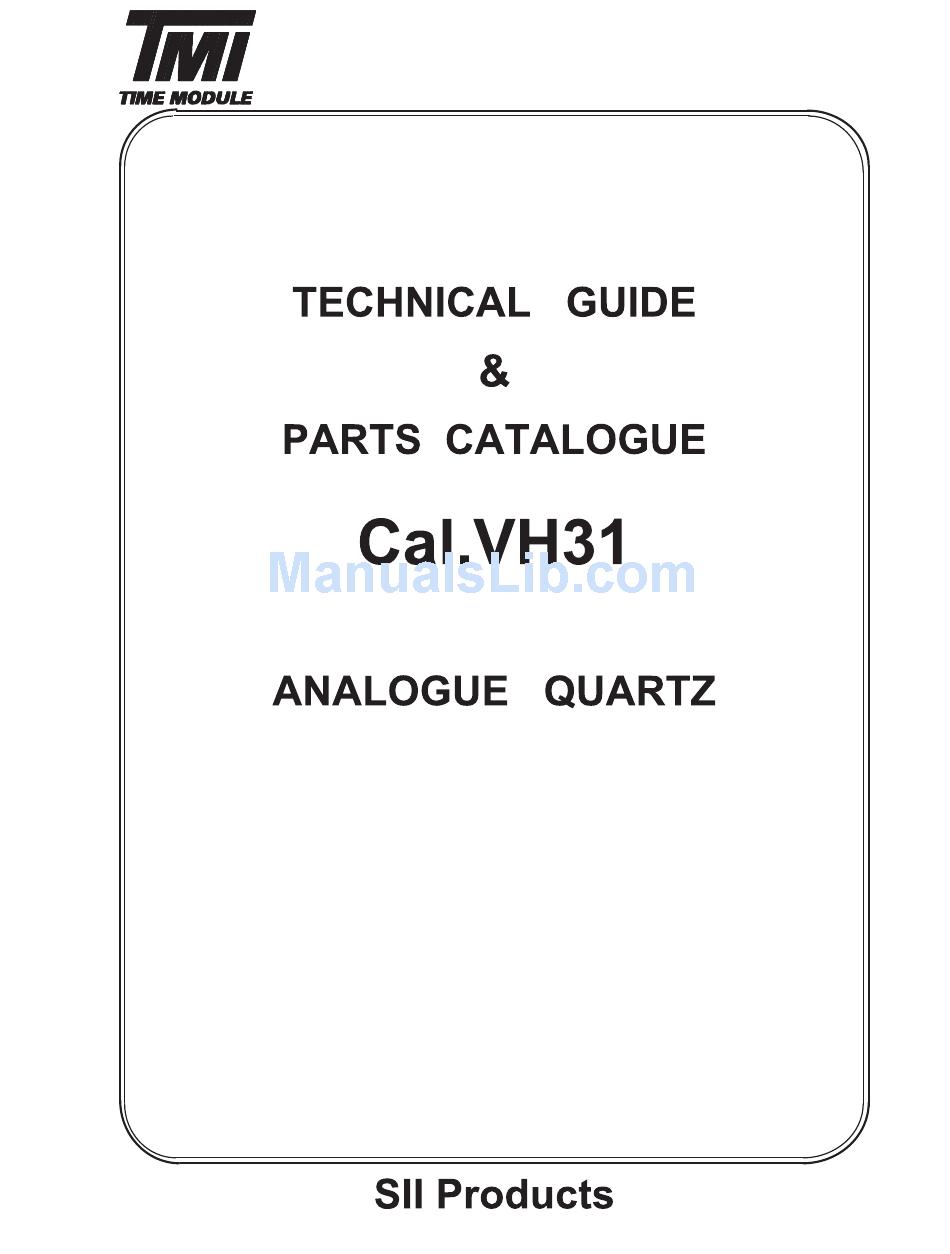

- Page 1 ¡ ¡ ¢ £ ¤ ¥ ¦ § ¨ © ¢ ¦ ¨ ©...

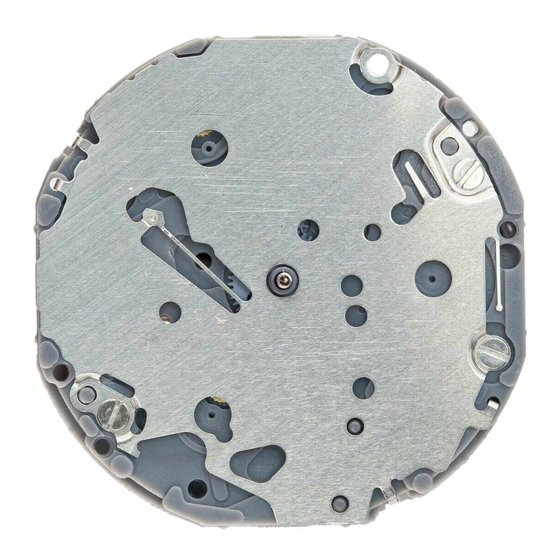

- Page 2 PARTS CATALOGUE / TECHNICAL GUIDE Cal.VH31 Version-01 [SPECIFICATION] Cal. No. VH31A Item Movement φ23.70 mm 22.60 mm ： between 12 o'clock and 6 o'clock sides Outside diameter 22.60 mm ： between 3 o'clock and 9 o'clock sides Movement φ23.30 mm size...
- Page 3 Version-01 MOVEMENT VARIATION VH31A VH31 SII Products...
- Page 4 Version-01 PARTS CATALOGUE VH31A ⇒ ５ Disassembling procedures Figs. ５ ⇒ Reassembling procedures Figs. <<VH31A>> ① Hour , Minute ,Second hands ② Dial ③ 0012 354 Support for dial side parts screw ④ 0604 150 Support for dial side parts ⑤ 0273 046 Hour wheel SII Products...
- Page 5 Version-01 PARTS CATALOGUE VH31A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ Liberal quantity 7 0144 006 1 Battery Fourth wheel and pinion 2 0012 168 Battery connection (+) screw 8 0560 005 3 4268 080 Friction spring for...
- Page 6 Version-01 TECHNICAL GUIDE VH31A ・The explanation here is only for the particular point of Cal.VH31A 1.REMARKS ON DISASSEMBLING AND REASSEMBLING (1)HAND ・How to install hands: Place the movement directly on a flat metal plate or such a hard plate when you install the hands. Necessary procedure to setting hands: Metal plate ①Set the dial.
- Page 7 Version-01 TECHNICAL GUIDE VH31A ・How to set the support of dial side parts: There are two hooks on the support for dial side parts. (Fig.1) First , assemble the two hooks on the support for dial side parts to the position of the built-in height A of the base plate. (Fig.2) Second , assemble the two hooks on the position of the built-in height B of the base plate.
-
Page 8: Display And Crown Operation
Version-01 OPERATION VH31A DISPLAY AND CROWN OPERATION ≪VH31A≫ Note: *1: Hour hand *3: Second hand *5: First click ・Time setting *2: Minute hand *4: Crown at normal position TIME SETTING 1.Pull out the crown to the first click 2.Push the crown back into the normal position when the second hand is at the in signal.
