AMP-021
Amplificador portátil
Bluetooth de 350 W PMPO
Manual de instrucciones
V0.0
0817A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMP-021 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steren AMP-021

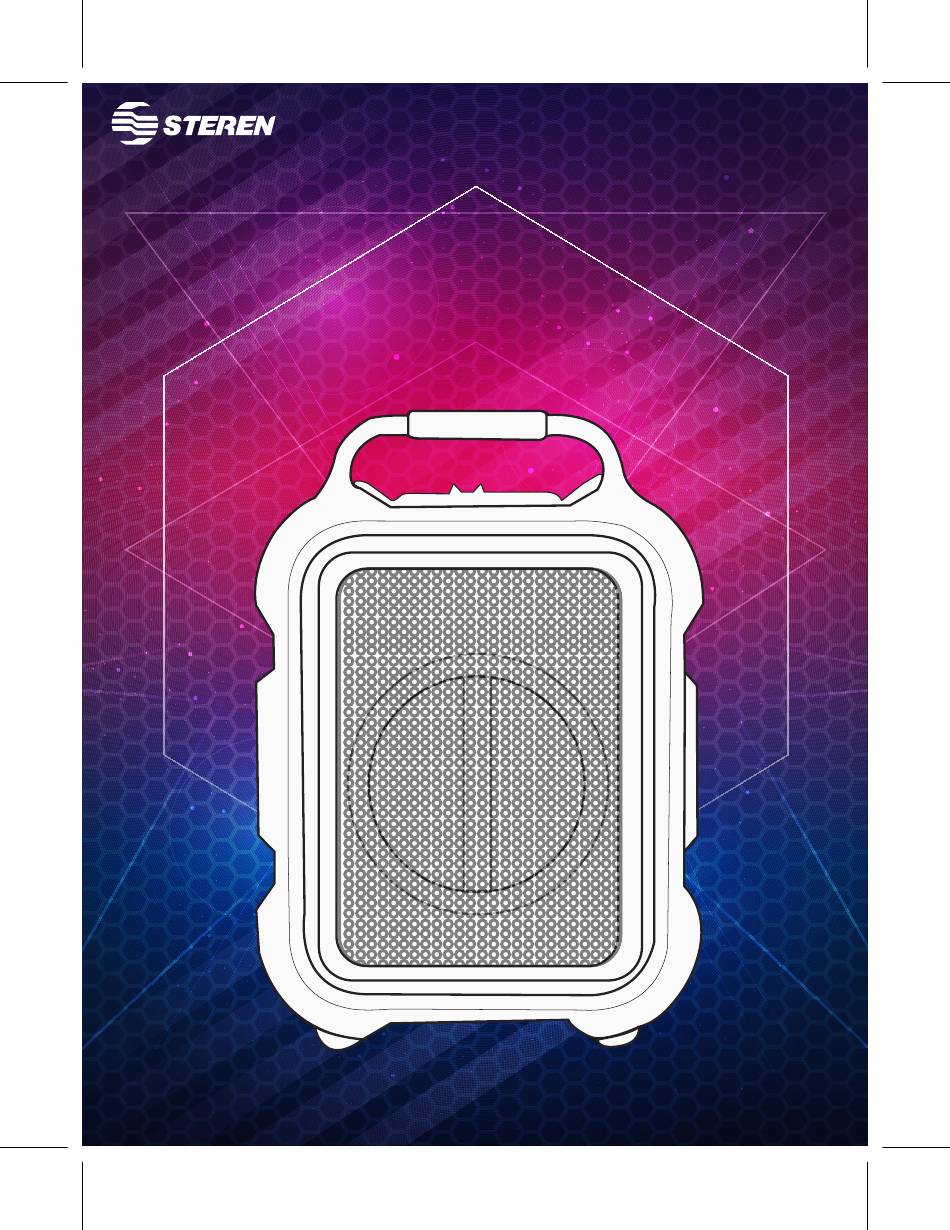

  • Page 1 AMP-021 Amplificador portátil Bluetooth de 350 W PMPO Manual de instrucciones V0.0 0817A...
  • Page 2 Antes de utilizar el producto, lea cuidadosamente este instructivo para evitar cualquier mal funcionamiento. La información presentada sirve únicamente como referencia sobre el producto. Debido a actualizaciones pueden existir diferencias. Consulte nuestra página web www.steren.- com para obtener la versión más reciente de este manual. PRECAUCIONES •...
  • Page 3 Convertidor de voltaje Amplificador Micrófono Cable cannon Cable auxiliar Cinta porta amplificador 3,5 mm CONTENIDO...
  • Page 4: Descripción General

    a) Amplificador A) Altavoz B) Reproductor MP3 C) Controles y conectores D) Argollas para cinta porta amplificador LIGHTS POWER LIGHTS POWER DESCRIPCIÓN GENERAL...
  • Page 5: Controles Y Conectores

    b) Reproductor MP3 1) Reproducir / pausar 2) Pista anterior 3) Pista siguiente 4) Cambiar modo de uso (AUX, BT, FM, USB, SD) 5) Botón de prioridad del micrófono 6) Grabar 7) Pantalla 8) Ranura para tarjeta SD 9) Puerto USB c) Controles y conectores 3 4 5 1) Volumen maestro...
  • Page 6 LIGHTS POWER CONEXIONES...
  • Page 7 Cargar la batería (con Uso con batería de 12 V convertidor de voltaje) 1. Apague el amplificador antes de iniciar el Antes de utilizar el amplificador por procedimiento. primera vez, cargue la batería durante 12 2. Conecte firmemente los cables como se muestra en el siguiente diagrama: horas continuas, subsecuente 4 horas.
  • Page 8: Modo Bluetooth

    1. Presione el botón INPUT para cambiar al modo Bluetooth, en el display aparecerá la leyenda “bLUE”. 2. Active el bluetooth en su dispositivo. 3.Busque y seleccione Steren AMP-021. 4. Controle la música desde su dispositivo. Modo auxiliar 1. Conecte un dispositivo externo (smartphone, tablet, PC, etc.) mediante un cable de audio 3,5 mm en insértelo en la entrada AUX del amplificador.
  • Page 9 Modo radio FM 1. Presione el botón INPUT para cambiar al modo radio. Reproductor MP3 Funciones Búsqueda automática de estaciones. Las estaciones encontradas quedarán registradas en la programación. Cambiar la estación programada (Anterior/siguiente) Modo USB / SD (reproductor MP3) Inserte una memoria USB / SD con archivos de audio en la ranura correspondiente. Oprima el botón para iniciar la reproducción .
  • Page 10: Función De Grabación

    Función de grabación 1. Inserte una memoria SD o USB (que contenga al menos un archivo de audio) para empezar a almacenar grabaciones. 2. Conecte y encienda el micrófono. 3. Presione el botón INPUT para cambiar a modo auxiliar. 4. Ajuste el volumen del micrófono con la perilla MIC VOL. 5.
  • Page 11: Problemas Y Soluciones

    Problemas y Soluciones • Compruebe el estado del cable de alimentación. • Si lo conectó a una batería externa, verifique que la polaridad sea la correcta. El amplificador no enciende • Probablemente no tiene la carga suficiente; déjelo cargando hasta que el LED de carga encienda en azul.
  • Page 12: Especificaciones

    Alimentación: 9 V - - - 1,5 A 12 V - - - (terminales para batería) Batería: 7,4 V - - - 2 200 mAh Potencia rms: 15 W (350 W PMPO) Respuesta en frecuencia: 20 Hz a 20 kHz *Autonomía: hasta 5 horas (volumen moderado) Consumo: 10 W/h Consumo en espera: No aplica...
  • Page 13: Póliza De Garantía

    CONDICIONES 1.- Para hacer efectiva la garantía, presente esta póliza y el producto, en donde fue adquirido o en Electrónica Steren S.A. de C.V. 2.- Electrónica Steren S.A de C.V. se compromete a reparar el producto en caso de estar defectuoso sin ningún cargo al consumidor.
  • Page 15 AMP-021 350 W PMPO portable Bluetooth amplifier Instructions manual V0.0 0817A...
  • Page 16 Before using the product, carefully read this instruction manual to avoid any malfunction. The information presented serves only as a reference on the product. Due to updates there may be differences. See our website www.steren.com for the latest version of this manual. CAUTIONS •...
  • Page 17 Power converter Amplifier Microphone Cannon Auxiliary cable Strap cable CONTENT...
  • Page 18: General Description

    a) Amplifier A) Speaker B) MP3 player C) Controls and connectors D) Clamps for strap amplifier LIGHTS POWER LIGHTS POWER GENERAL DESCRIPTION...
  • Page 19: Connectors And Controls

    b)MP3 Player 1) Play / Pause 2) Previous track 3) Next track 4) Change mode of use (AUX, BT, FM, USB, SD) 5) Microphone priority button 6) Record 7) Screen 8) SD card slot 9) USB port c) Connectors and controls 3 4 5 1) Master volume 2) Treble (amplifier)
  • Page 20 LIGHTS POWER CONNECTIONS...
  • Page 21 Charge the battery (with Use with 12 V battery voltage converter) 1. Turn off the amplifier before beginning Before using the amplifier for the first the procedure. time, charge the battery for 12 2. Connect the cables securely as shown in the following diagram: continuous hours, subsequent 4 hours.
  • Page 22: Bluetooth Mode

    Bluetooth mode 1. Press the INPUT button to switch to Bluetooth mode, the display will read "bLUE". 2. Activate the bluetooth on your device. 3.Search and select Steren AMP-021. 4. Control the music from your device. AUX mode 1. Connect an external device (smartphone, tablet, PC, etc.) using a 3.5 mm audio cable into the AUX input of the amplifier.
  • Page 23 Radio FM mode 1. Press the INPUT button to switch to radio mode. MP3 Player Functions Automatic station search. The stations found will be Recorded in the programming. Change the preset station   (Previous next) USB / SD mode (MP3 player) Insert a USB / SD memory card with audio files into the corresponding slot.
  • Page 24: Record Function

    Record function 1. Insert an SD or USB memory (containing at least one audio file) to start storing recordings. 2. Turn the microphone on and off. 3. Press the INPUT button to switch to auxiliary mode. 4. Adjust the microphone volume using the MIC VOL knob. 5.
  • Page 25: Troubleshooting

    Trouble shooting • Check the status of the power cord. • If you connected it to an external battery, check that the polarity is correct. The amplifier does not • Probably does not have enough load; Let it charge turn on until the charging LED turns blue.
  • Page 26: Specifications

    Input: 9 V - - - 1.5 A 12 V - - - (battery ends) Battery: 7.4 V - - - 2 200 mAh RMS power output: 15 W (350 W PMPO) Frequency response: 20 Hz to 20 kHz *Battery life: up to 5 hours (moderate volume level) Consumption: 10 W/h Stand-by power consumption: Not applicable AC / DC power converter...
  • Page 27: Warranty

    Model: AMP-021 Brand: Steren WARRANTY This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for three months on the battery and one year on the other parts from the date of purchase.
