AMP-020
Amplificador para publidifusión
Manual de instrucciones
S6-B
V0611a

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMP-020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steren AMP-020

  • Page 1 AMP-020 Amplificador para publidifusión Manual de instrucciones S6-B V0611a...
  • Page 2 Amplificador para publidifusión Steren. Por favor revise este manual completamente para estar seguro de instalar y poder operar apropiadamente este producto. Para apoyo, compras y todo lo nuevo que tiene Steren, visite nuestro sitio Web en: www.steren.com...
  • Page 3 IMPORTANTE • No exponga el equipo a temperaturas extremas. • No use ni almacene este equipo en lugares donde existan goteras o salpicaduras de agua. Puede causar un mal funcionamiento o un choque eléctrico. • Siempre utilice un paño suave y seco para limpiar el equipo. •...

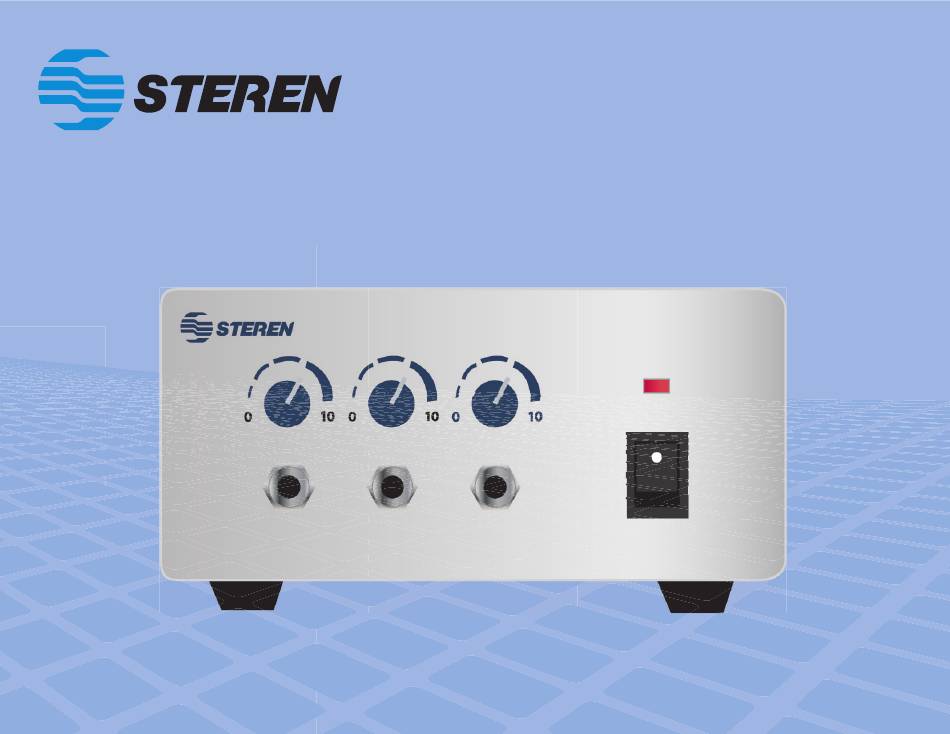

  • Page 4 CONTROLES VISTA FRONTAL 1.- Interruptor encendido ( l ) / apagado ( O ) 2.- Control de volumen Micrófono 1 3.- Control de volumen Micrófono 2 4.- Control de volumen Auxiliar 5.- Indicador de uso 6.- Entrada de 6mm para Micrófono 1 7.- Entrada de 6mm para Micrófono 2 VISTA TRASERA 8.- Entrada de 6mm Auxiliar...
  • Page 5 CONEXIONES DE SALIDA DE IMPEDANCIA Consideraciones: Bocinas de baja impedancia, salida 4 ohms. La terminal de 4, 8 y 16 ohms está provista para conexiones de pocas bocinas a menos de 50 metros. Se requiere que la carga total de impedancia en la bocina sea la misma que la impedancia de salida del amplificador, 4, 8 y 16 ohms para una mejor distribución de corriente.
  • Page 6: Especificaciones

    Si tiene: Dos altavoces de 8 ohms conectados en O dos altavoces de 8 ohms conectados en paralelo puede obtener una impedancia de serie puede obtener una impedancia de 4 ohms. 16 ohms. 4ohms 16ohms 8ohms 8ohms 8ohms 8ohms 8ohms 8ohms O cuatro altavoces de 8 ohms en serie/paralelo puede obtener una...
  • Page 7 1.- Para hacer efectiva la garantía, presente ésta póliza y el producto, en donde fue adquirido o en Electrónica Steren S.A. de C.V. 2.- Electrónica Steren S.A de C.V. se compromete a reparar el producto en caso de estar defectuoso sin ningún cargo al consumidor. Los gastos de transportación serán cubiertos por el proveedor.
  • Page 8 AMP-020 Audio amplifier Instruction Manual V0611a S6-B...
  • Page 9: Audio Amplifier

    Thank You on purchasing your new Steren product. This manual includes all the feature operations and troubleshooting necessary to install and operate your new Steren´s Audio amplifier. Please review this manual thoroughly to ensure proper installation and operation of this product.
  • Page 10 IMPORTANT • Do not expose the equipment to extreme weather. • Do not use or store the equipment near wet places. May cause malfunction or shock hazard. • Clean only with a soft, dry cloth. • Do not use this equipment if the power cord is broken or damaged. •...

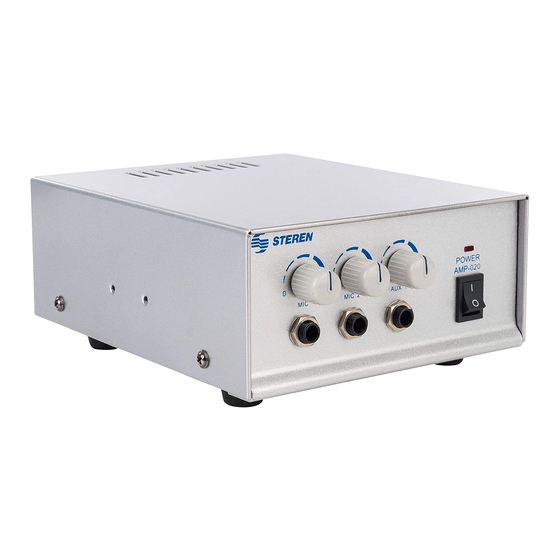

  • Page 11 CONTROLS FRONT VIEW 1.- On / Off 2.- Microphone 1 volume control 3.- Microphone 2 volume control 4.- Auxiliary volume control 5.- In-use indicator 6.- 6mm microphone 1 input jack 7.- 6mm microphone 2 input jack REAR VIEW 8.- 6mm auxiliary input jack 9 .- Fuse 10 .- Speaker connector 11 .- External power connector...
  • Page 12: Output Connections

    OUTPUT CONNECTIONS Output to low impedance speakers: This terminal has been made for low impedance speaker (4, 8 and 16 ohm) and connections with few speakers. Use this terminal with a cable not larger than 164ft. For a better current distribution, the amplifier requires that the total charge be the same as the amplifier’s output impedance (4, 8 and 16 ohm).
  • Page 13: Specifications

    If you have: Two 8 ohms speakers, connected in parallel, Two 8 ohms speakers, connected in serial, the output impedance will be 4 ohms. the output impedance will be 16 ohms. 4ohms 16ohms 8ohms 8ohms 8ohms 8ohms 8ohms 8ohms Two 8 ohms speakers connected serial/parallel, output 8ohms...
  • Page 14 NOTES / NOTAS...
  • Page 15 Part number: AMP-020 Brand: Steren WARRANTY This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase. CONDITIONS 1.- This warranty card with all the required information, invoice, product box or package, and product, must be presented when warranty service is required.
  • Page 16 Este instructivo puede mejorar con tu ayuda, llámanos a: Help us to improve this instruction manual, call us at: 01800 500 9000 Centro de Servicio a Clientes Customer Service Center...
