North Light ALF EL-S995DNA Quick Start Manual

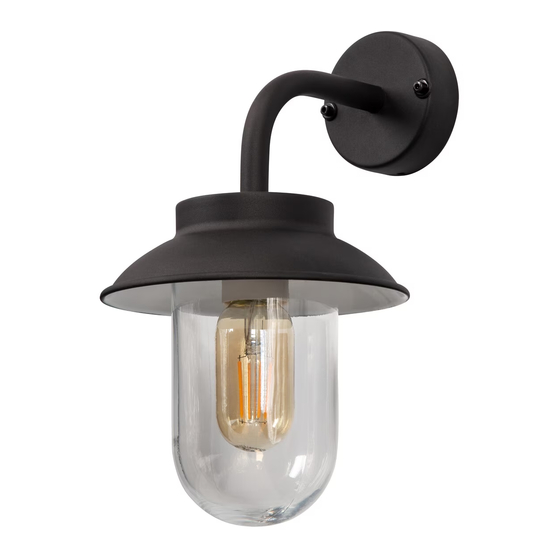

ALF Outdoor Light
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Safety
• This product must only be installed by a qualified electrician.
• The product is intended for fixed wall installation.
Installation
1. Warning: Before beginning
any electrical installation
always disconnect the power
to the circuit you are working
on, either by turning off
the main circuit breaker or
by removing the fuse from
the consumer unit.
A B
2. Remove the two screws from the light and carefully
separate the light (B) from the wall bracket (A).
Note: Handle the electrical wires carefully so as not to
damage them.
3. Pass the mains flex through the rubber grommet in
the wall bracket.
UNITED KINGDOM • CUSTOMER SERVICE
tel. 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk postal: 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
4. Screw the wall bracket to the wall. Use fasteners suitable
for the surface material and ensure that there are no
electrical wires or water pipes in the wall where you intend
to drill/screw.
5. Connect the electrical supply cable to the terminal block.
6. Align the holes in
the light with screw holes
in the wall bracket.
7. Fit the washers and
rubber seals onto
the screws (C) and screw
the light onto the wall
bracket.
8. Screw in a bulb:
1 × E27 bulb, max 60 W
C
(sold separately).
Art.no 36-7699 Model EL-S995DNA
9. Turn on the mains. The light is
now ready for use.
Responsible disposal
This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any harm to
the environment or health hazards caused by
incorrect waste disposal, the product must
be handed in for recycling so that the material
can be disposed of in a responsible manner.
When recycling your product, take it to your
local collection facility or contact the place of
purchase. They will ensure that the product is
disposed of in an environmentally sound manner.
Specifications
Voltage
Bulb
IP rating
Material
Measurement
Weight
ENGLISH
220–240 V AC, 50/60 Hz
1 × E27, max 60 W (sold separately)
IP44
Iron and Glass
Distance from wall 225 mm
Base/wall mount diam: 87 mm
Lampshade diam: 175 mm
640 g
