North Light UTV-070-SN Quick Start Manual

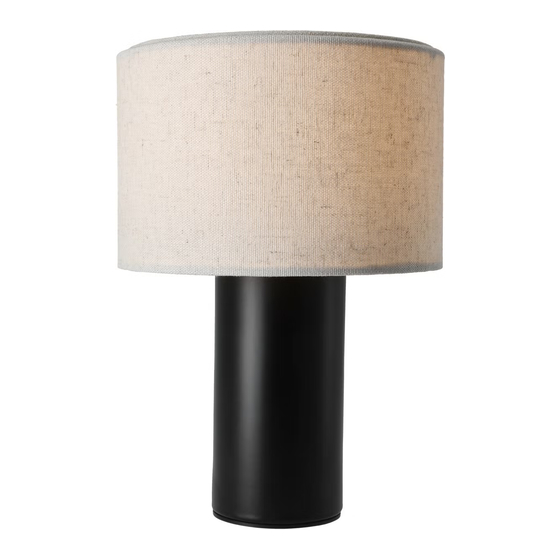

Rechargeable table lamp
Please read the entire instruction manual before using the
product and then keep it for future reference. We accept no
liability for any errors in the text or images and we reserve the
right to make any necessary changes to technical data. If you
have technical problems or other questions, please contact
our customer service team.
Safety
• Do not let children play with the product.
• The product must not be changed or modified in any way.
• Never charge the product in flammable environments or on
flammable surfaces.
• Never use a defective charging cable.
• Never expose the product to high temperatures or
naked flames.
Care and maintenance
Switch the light off and clean it using a soft, dry cloth.
Responsible disposal
This symbol indicates that the product should
not be disposed of with general household
waste. This applies throughout the entire EU. To
prevent any harm to the environment or health
hazards caused by incorrect waste disposal, the
product must be handed in for recycling so that
the materials can be disposed of in a responsible
way. To recycle the product, take it to your local
recycling facility or contact the retailer. They will
ensure that the product is disposed of in a way
that does not harm the environment.
Product description
1
2
3
4
1. Lamp shade topper
2. Lamp shade
3. LED light source
(non-replaceable)
4. Shade ring
5. On/off switch
5
6. Battery charge
6
status indicator
7
7. USB-C port
Use
1. Press the On/Off button (5) to switch the light on.
It will come on at about 10% brightness.
2. Press again for about 40% brightness and a third time
for 100%.
3. Press a fourth time to turn the light off.
Attaching a lamp shade
1. Unscrew the shade ring (4) and thread the lamp shade (2)
over the light source.
2. Screw the shade ring back to secure the lamp shade.
3. Place the lamp shade topper (1) on the brackets in
the lamp shade.
Art.no 36-9868 Model OCL-1137T Battery
Replacing the battery
Undo the screws that hold the
battery cover on the base of the
light in place so that you can
change the battery.
Note: The replacement battery
must be same type as the
original (Lithium 3.7 V 18650
with protection circuit). Follow
the markings in the battery
compartment to ensure correct polarity.
Charging
The battery charge status indicator (3) shows the status of
the battery in two modes:
• Flashing green light: The battery is being charged
• Fixed green light: The battery is fully charged
• Flashing red light: The battery needs charging.
Connect the charging cable supplied to the charging socket (7)
on the base and to a computer or other USB charger.
Specifications
Charging voltage
Battery
Cable
Charging time
Operating time
Light source
Luminous flux
Light temperature
Height
Base
Shade
Weight
ENGLISH
a
5 V DC adapter (sold separately)
1 × 18650, 2200 mAh, 3.7 V
USB-A to USB-C, 1 m (included)
approx. 3.5 h
Approx. 60 h at 10%, 15 h at 40%,
6 h at 100%
LED (non-replaceable)
10 lm at 10%, 40 lm at 40%,
100 lm at 100%
3000 K
210 mm
Diameter 60 mm
Diameter 150 mm
520 g
