Self-closing patch kit
Ensemble de plaque de suspension à fermeture automatique
Instruction Manual · Instructions d'installation
max 1.000 mm
(39-3/8")
max 2.590 mm
(102")
8 - 12,7 mm
(5/16 - 1/2")
max 100 kg
- Do not use with laminated
safety glass
(220 lbs)
- Ne pas utiliser avec du verre
feuilleté (laminé)
Advertisement
Related Manuals for Richelieu Bohle Alva
Summary of Contents for Richelieu Bohle Alva

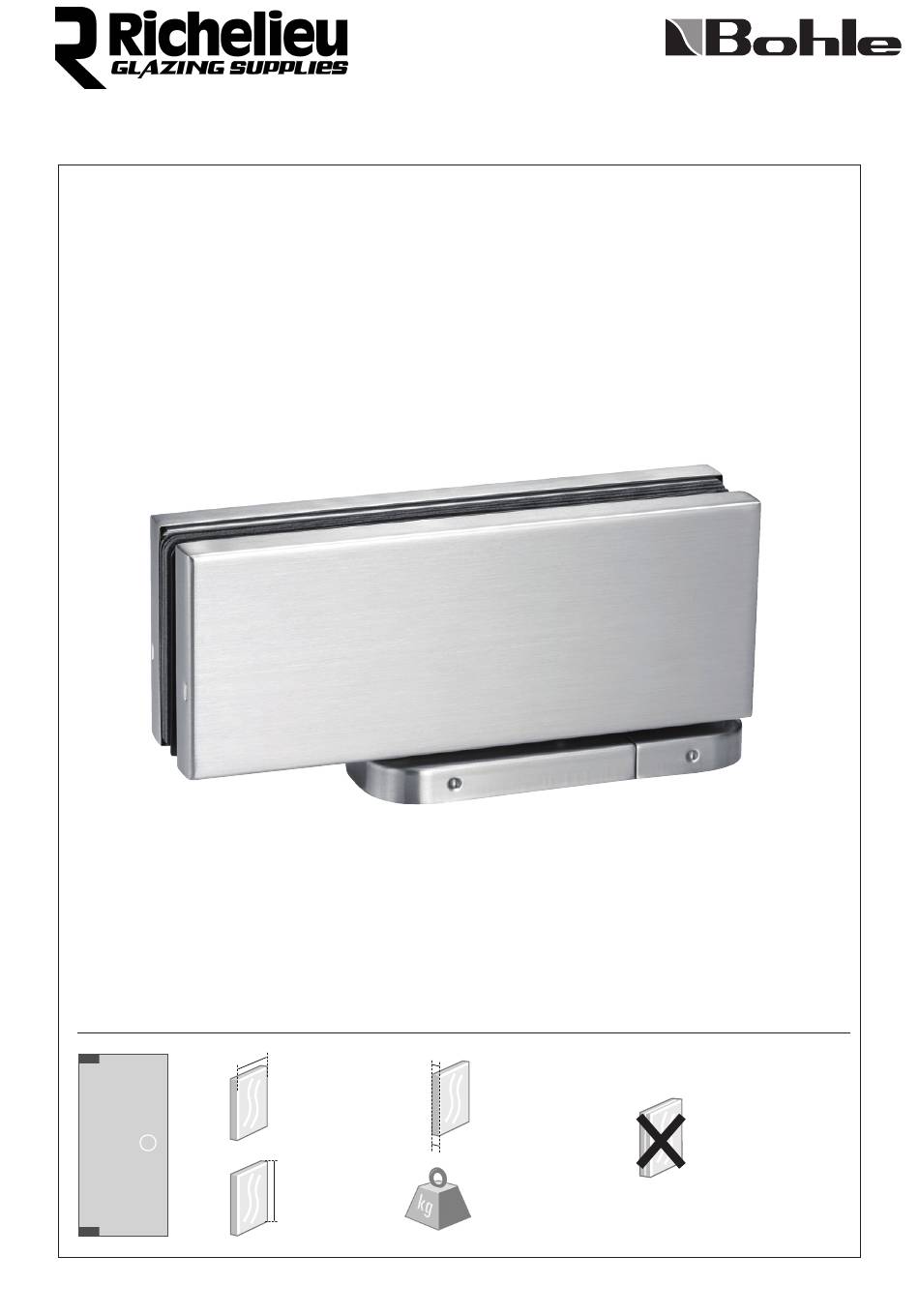

- Page 1 Alva Self-closing patch kit Ensemble de plaque de suspension à fermeture automatique Instruction Manual · Instructions d‘installation max 1.000 mm 8 - 12,7 mm (39-3/8“) (5/16 - 1/2“) max 100 kg - Do not use with laminated max 2.590 mm safety glass (220 lbs) (102“)
- Page 2 inches / pouces...
- Page 3 65 mm (2-9/16”) 10 mm 6 mm 3/8” 1/4” 35 mm (1-3/8”) Enlever le couvercle Remove the cover...
- Page 4 = 2,5 mm = 0,5 mm = 1,0 mm = 1,0 mm 8 mm 10 mm (5/16“) (3/8“) Amérique du nord North America 12 mm 12,7 mm (1/2“) (1/2“)
- Page 5 5 Nm (3.7 ft-lb)
- Page 6 1 mm (1/16”) 2 mm (0,08”) 1 mm (1/16”) max. 1mm (0,04”) max. 1mm (0,04”) max. 2mm (0,08”)
- Page 7 ± 2˚ + 2˚ max. - 2˚ max.
- Page 8 Ajustement du vitesse de fermeture Adjustment of closing speed Deux valves de règlement Two regulating valves - Valve 1: plage de fermeture 170° - 15° - Valve 1: closing range 170° - 15° - Valve 2: plage de verrouillage 15° - 0° - Valve 2: latching range 15°...
- Page 11 Instruction Manual · Instructions d‘installation 100kg (220 lbs.) 8 - 12.7 mm (5/16" - 1/2")
- Page 12 10 Nm Glass cut out - Gabarit de coupe Distance glass - wall 3mm (1/8”) Distance verre - mur 65 mm 2 9/16" 61,5mm 2 7/16" 68 mm 2 11/16" 148 mm 5 13/16" BO 5216610 182 mm 7 3/16" Distance glass - wall 6mm (1/4”) Distance verre - mur...
- Page 13 10mm 12mm 12.7mm( ") *pre-installed * pré-installé 2 x 2mm 2 x mm 2 x 2mm 2 x 2mm 2 x 2mm 2 x mm (7.375 ft-lb)
-
Page 14: Important Installation Notes
DB-=>hl� www.bohle.com ® IMPORTANT INSTALLATION NOTES After installation please check and test: 1 - Open the door leaf to its maximum opening angle and release. The door leaf should close fully into the door frame and overcome the latch. 2 - Open the door leaf and rest the latch bolt on the strike plate. Release the door leaf. The door closer should have sufficient power to close the door leaf.
