INSTALLATION MANUAL

JAX ARM
JAX
50084792190

Installation Instructions

ARM BASE
TILT GAUGE
TRAY HEAD
TOOLS REQUIRED
Adhesive tape
Drill with 1/8'' bit
#2 Phillips screwdriver
Square
WARNINGS/DISCLAIMERS
INSTALLATION WARNINGS:
• Read the entire instruction manual before beginning
any installation or assembly.
• Improper installation of this product may cause
property damage or personal injury, either
during or after installation.
CABLE MANAGER
ARM
TILT KNOB
DISCLAIMER:
• The manufacturer will bear no responsibility for any damages
of any kind arising from improper installation of this product.
• Work surfaces will vary widely and the ultimate method of
installing is out of the manufacturer's control. It is imperative
that the installer consult the work surface installation guide to
ensure that it can safely handle the applied load.
TRACK
FRONT PLATE
SCREWS (2)
ADJUSTMENT NOTIFICATION:
• Routine maintenance checks and adjustments are suggested
to properly support the quality and optimal performance of
this product.
• Over tightening of bolts during installation or adjustments
can damage the product and affect the function and warranty.
TRACK
MOUNTING
SCREWS (8)
FRONT PLATE

Advertisement

loading
Need help?

Need help?

Do you have a question about the ERGO JAX 50084792190 and is the answer not in the manual?

Questions and answers

Summary of Contents for Richelieu ERGO JAX 50084792190

  • Page 1: Installation Manual

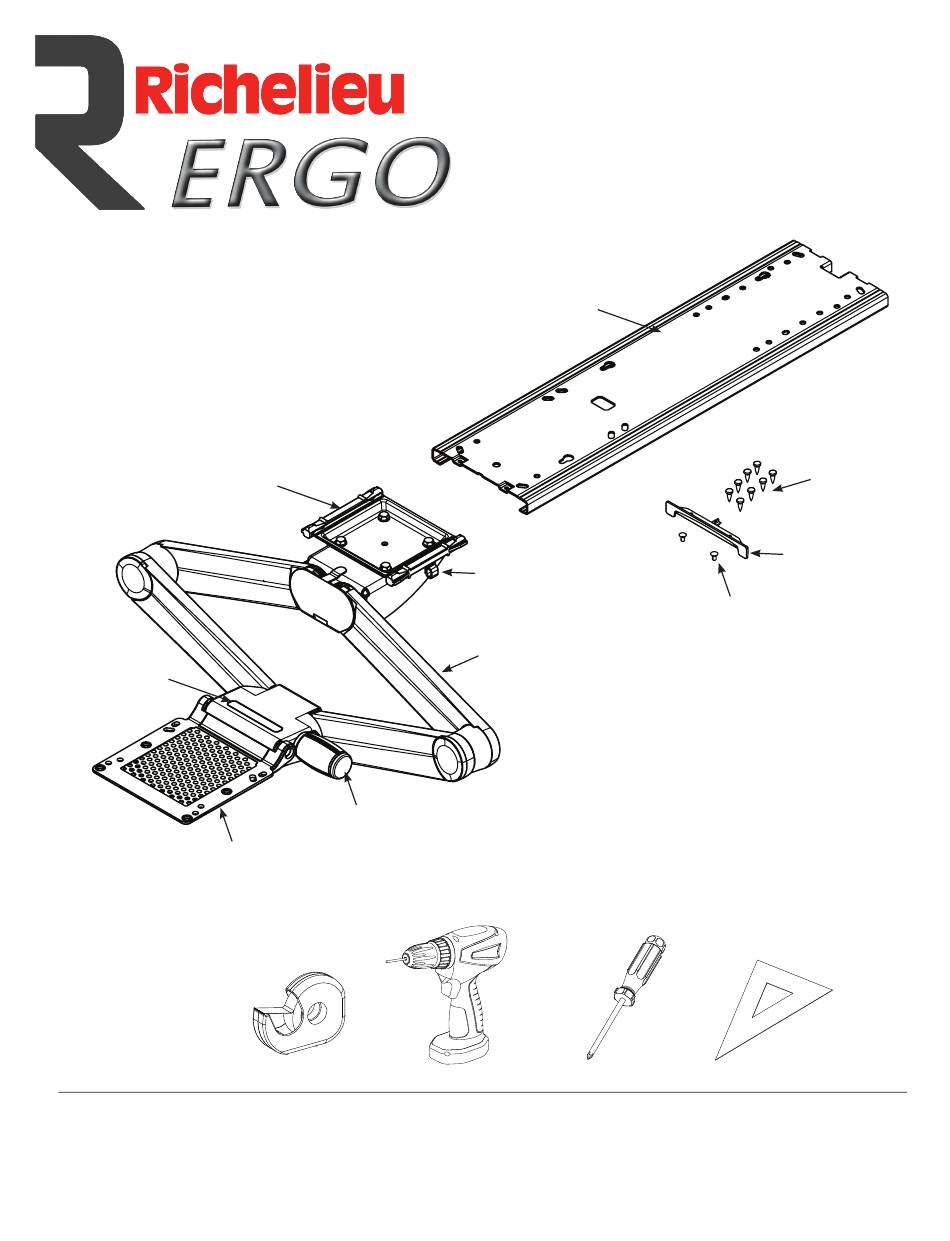

    INSTALLATION MANUAL JAX ARM 50084792190 TRACK Installation Instructions TRACK MOUNTING ARM BASE SCREWS (8) FRONT PLATE CABLE MANAGER FRONT PLATE SCREWS (2) TILT GAUGE TILT KNOB TRAY HEAD TOOLS REQUIRED Adhesive tape Drill with 1/8’’ bit #2 Phillips screwdriver Square WARNINGS/DISCLAIMERS INSTALLATION WARNINGS: DISCLAIMER:...
