Contactless Membership reader/writer
Go Green - For manuals, go to socketmobile.com/downloads
Get Started with your
SocketScan
• Made for tap-and-go, smart card
and NFC applications
• Reads HF tags and writes lock/
unlock tags
• Works with iOS/Android/Windows
with Bluetooth LE
• Programmable Audible feedback
• Intuitive changeable LEDs
S550
®
Learn More
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Socket SocketScan S550
Summary of Contents for Socket SocketScan S550

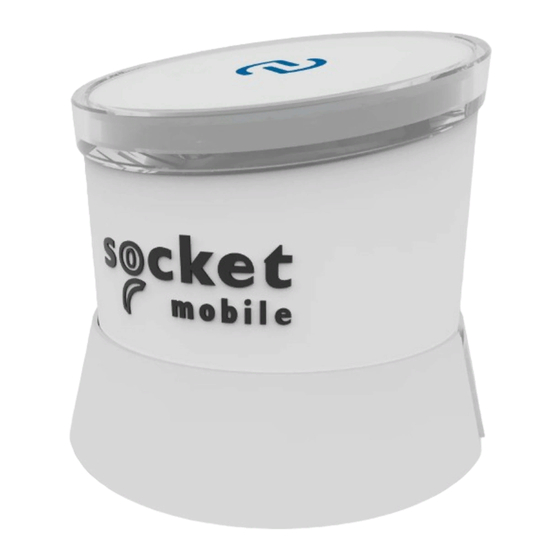

- Page 1 Get Started with your SocketScan S550 ® Contactless Membership reader/writer • Made for tap-and-go, smart card and NFC applications • Reads HF tags and writes lock/ unlock tags • Works with iOS/Android/Windows with Bluetooth LE • Programmable Audible feedback • Intuitive changeable LEDs Go Green - For manuals, go to socketmobile.com/downloads Learn More...
-
Page 2: Package Contents
Package Contents Active White SocketScan Security Surface Charging S550 Cable Cable Thank you for choosing Socket Mobile Let’s get started! For complete user guide:socketmobile.com\downloads... - Page 3 S550 Set Up 1. Place Active Surface Peel plastic off to place the active surface on top of the S550. Optional: Attach Security Cable Feed the string loop through the eyelet. Step 1: Step 2: Pull the gimbal through the string loop. Step 3: Pull tight so the string loop is secure.
- Page 4 S550 Set Up 2. Charge Your S550 Connect to power using the charging cable and charge the battery. Charging connector 3. Power On Press the power button to turn on when S550 is battery operated. Power button *S550 will automatically turn on when connected to power.
- Page 5 4. Select Mode and Pair Your S550 The S550 will announce the mode: Reader or Keyboard “Reader” mode: You are in Reader Only Profile (default) Recommended to use with your business app developed with Socket Mobile SDK. Step 1: Download Socket Mobile Companion. Launch app.
- Page 6 “Keyboard” mode: You are in Keyboard Emulation Profile Use this mode if you do not have an app developed with Socket Mobile SDK. Step 1: Download Socket Mobile Companion. Step 2: Launch app and when prompted, select “Yes” to pair S550 device.
- Page 7 S550 Set Up 5. Read NFC Data Launch your business app. Then, place membership card or mobile pass on top of the S550 to read data.
- Page 8 Regulatory Compliance. www.socketmobile.com/regulatory-compliance Regulatory: Regulatory information, certification and compliance marks specific to the Socket Mobile Barcode scanner are available in the User Guide or Regulatory Compliance at: www.socketmobile/regulatory-compliance. IC and FCC Compliance Statement: This device complies with Industry Canada licenseexempt RSS standard(s).
- Page 9 Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
