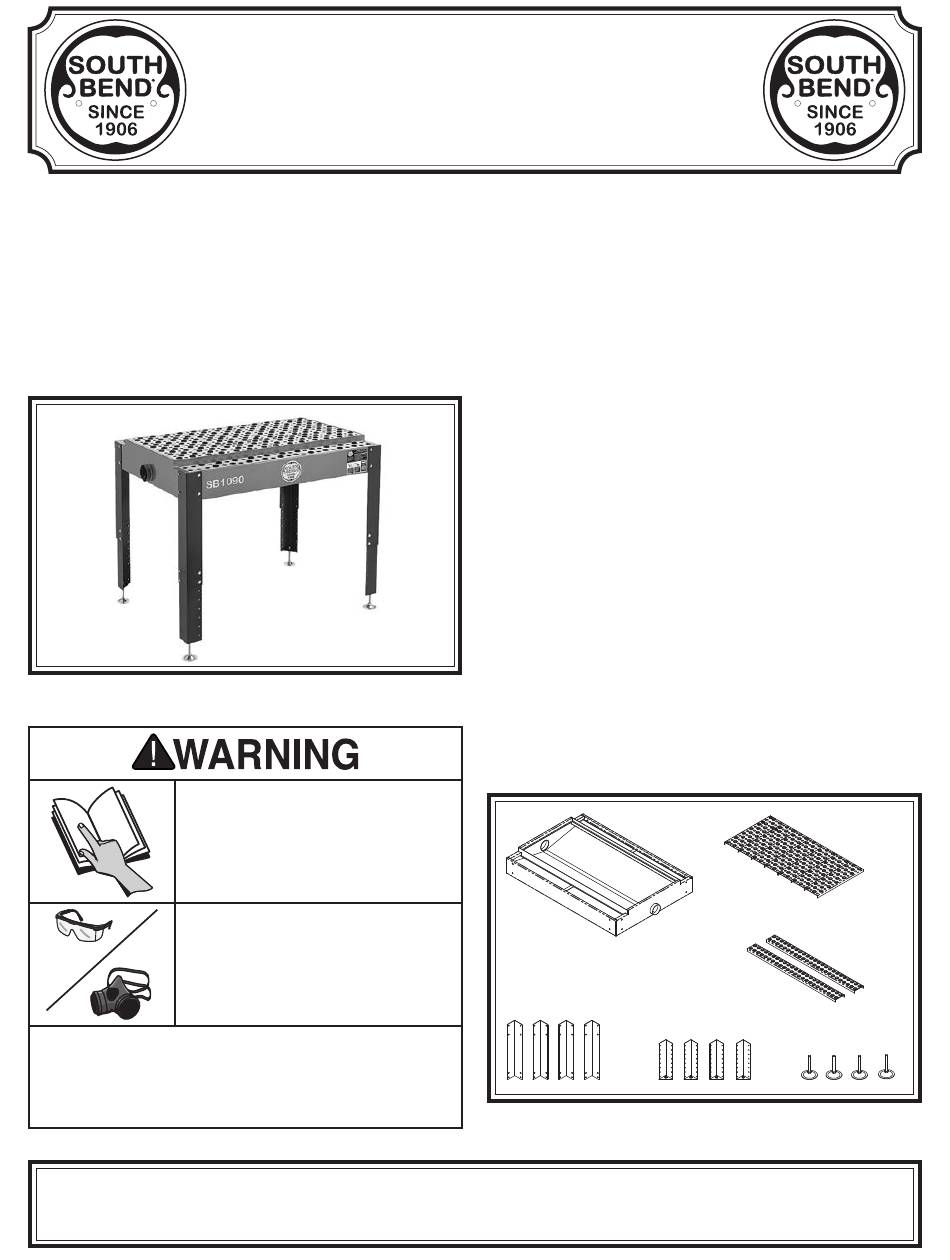

South bend SB1090 Instruction Sheet

The Model SB1090 37" x 53" Downdraft Table
features heavy-duty steel-frame construction,
removable table boards, an internal V-bottom for
directing air flow, and two 4" dust ports.
Both table shoulders sit 1
work table for efficient edge-sanding. Table
height can be adjusted from 26" to 43" tall.

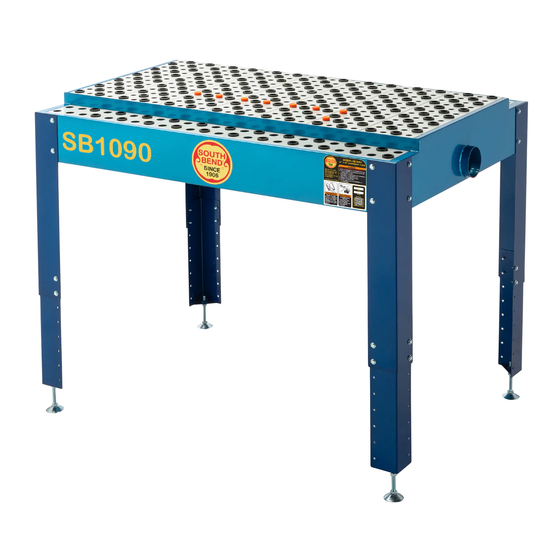

Figure 1. SB1090 37" x 53" Downdraft Table.
Incorrect use of this tool can
result in death or serious
injury. For your own safety,
read and understand this
entire document before using.
To reduce risk of eye injury
or lung damage from dust,
always wear safety glasses
and a respirator when
operating downdraft table!
INJURY HAZARD!
• Ensure table is properly set up and connect-
ed to a dust collection system before using.
• Only use table to collect wood dust.
WARNING: No portion of this manual may be reproduced without written approval.
Model SB1090
37" x 53" Downdraft Table
INSTRUCTION SHEET
P.O. Box 2027, Bellingham, WA 98227 U.S.A.
PHONE: (360) 734-1540 •
⁄ " below the center
1
2
Copyright © April, 2020 by South Bend Lathe Co.
#KS21049 Printed in Taiwan
www.southbendlathe.com

Specifications

Table Size ................................................. 37" x 53"
Shoulder Table Size ................................... 6" x 53"
Table Height Range ................................... 26"–43"
Dust Port Size ......................................................4"
Load Capacity (Per Suction Board) .......... 40.5 lbs.
Weight ......................................................... 140 lbs.

Inventory

Main Inventory (Figure 2)
A. Table ............................................................... 1
B. Suction Boards ............................................... 7
C. Shoulder Suction Boards ............................... 2
D. Foot Pads ........................................................ 4
Lower Support Legs ....................................... 4
E.
F. Upper Support Legs ....................................... 4
Not Shown
Flange Bolts
•
5
• Hex Nuts ⁄ "-13 .............................................. 4
1
2
Work Stop Nuts .............................................. 8
•
• Work Stops ..................................................... 8
• Grommets ................................................... 264
F
Figure 2. Model SB1090 Inventory.
⁄ "-18 x ⁄ " ............................. 32
1
16 2
A
E
Qty
Qty
B
C
D
