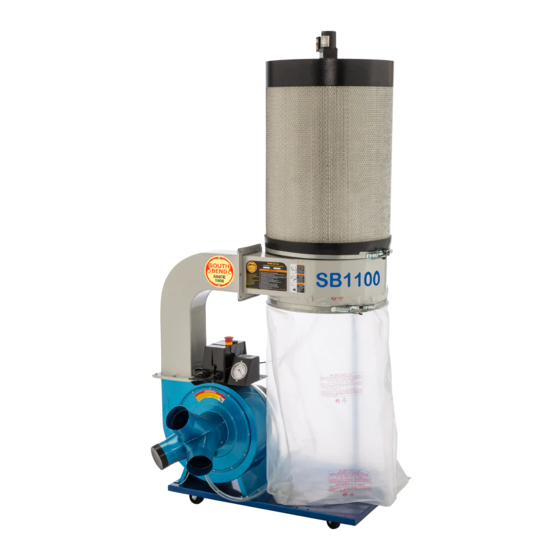

South bend SB1100 Owner's Manual

Single-stage dust collectors
Hide thumbs Also See for SB1100:
Table of Contents

Advertisement

Quick Links

Download this manual

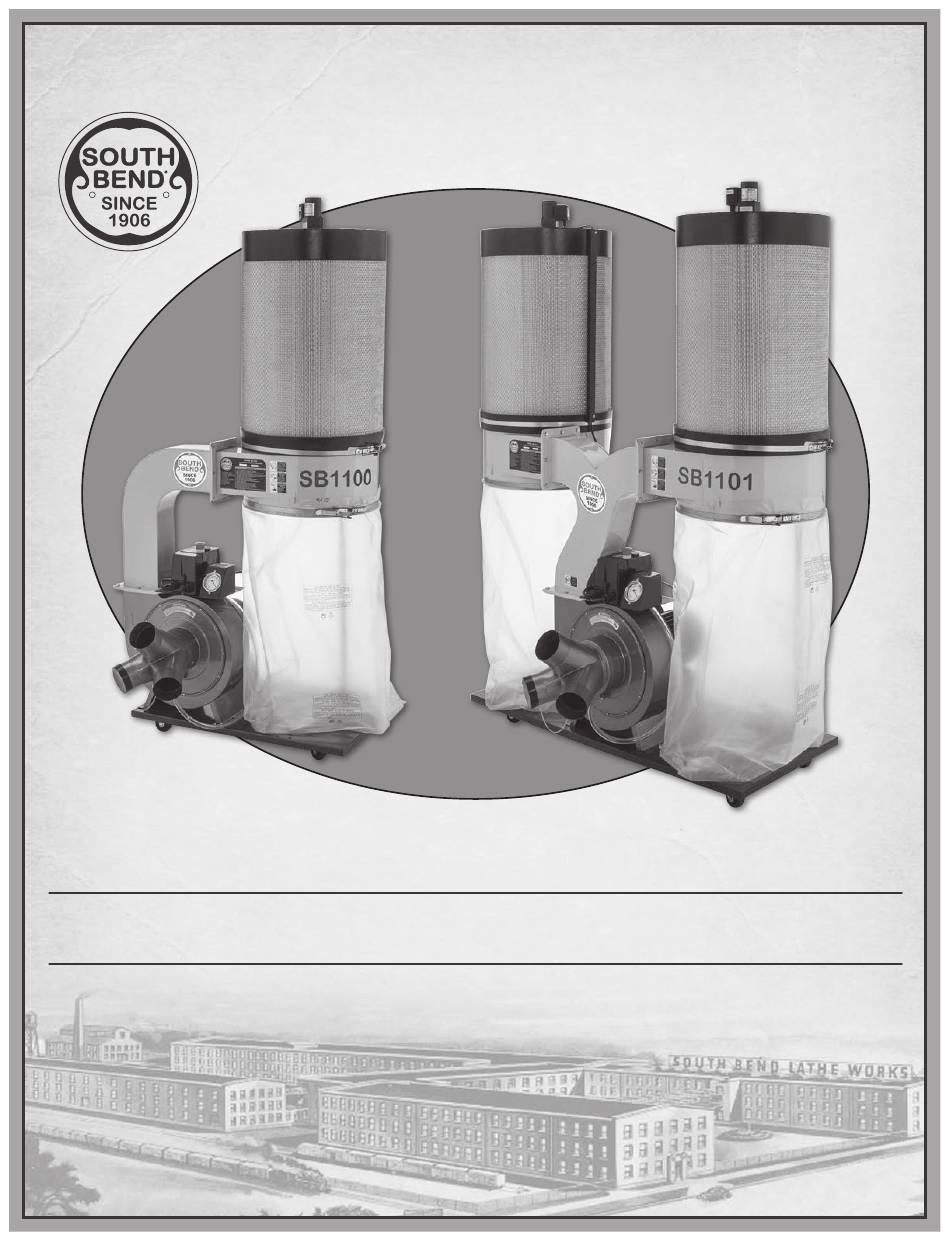

SINGLE-STAGE DUST COLLECTORS
MODELS SB1100 & SB1101
OWNER'S MANUAL
South Bend Tools
®
A Tradition of Excellence
© NOVEMBER, 2020 by South Bend Lathe Co.
For Machines Mfd. Since 10/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB1100 and is the answer not in the manual?

Questions and answers

Related Manuals for South bend SB1100

Summary of Contents for South bend SB1100

  • Page 1 SINGLE-STAGE DUST COLLECTORS MODELS SB1100 & SB1101 OWNER'S MANUAL South Bend Tools ® A Tradition of Excellence © NOVEMBER, 2020 by South Bend Lathe Co. For Machines Mfd. Since 10/20...
  • Page 2 We highly value customer feedback on our manuals. If you have a moment, please share your experience using this manual. What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use? South Bend Tools Technical Documentation Manager P.O. Box 2027 Bellingham, WA 98227 Email: manuals@southbendtools.com...

  • Page 3: Table Of Contents

    Electrical Safety Instructions ......44 SB1101 Inventory ..........14 SB1100 Wiring Diagram ........45 Hardware Recognition Chart ......15 SB1100 Electrical Component Pictures .... 46 Location .............. 16 SB1101 Wiring Diagram ........48 Assembly ............17 SB1101 Electrical Component Pictures .... 49 Test Run .............

  • Page 4: Introduction

    I N T R O D U C T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 INTRODUCTIOn Identification Filter Brush Motor Canister Switch Filter Pressure Collection Gauge Inlet Port Inlet Swivel Adapter Caster Serious personal injury could occur if...

  • Page 5: Description Of Controls & Components

    G. Remote Control: Green button turns motor ON. Red button turns motor OFF. Requires a 12V, type A27 battery. Figure 2. SB1100 & SB1101 remote control. Note: The remote control operates on radio frequency and has a 75-ft. range. It does not need to be aimed at the switch box to operate.

  • Page 6: Product Specifications

    I N T R O D U C T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Product Specifications Product Specifications P.O. Box 2027, Bellingham, WA 98227 U.S.A. © South Bend Tools PHONE: (360) 734-1540 •...
  • Page 7 I N T R O D U C T I O N For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Model Number SB1100 SB1101 Electrical Power Requirement 220V, Single-Phase, 60 Hz 240V, Single-Phase, 60 Hz Full-Load Current Rating Minimum Circuit Size Connection Type Cord &...
  • Page 8 I N T R O D U C T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Model Number SB1100 SB1101 Bag Information Number of Filter Bags Filter Bag Diameter 19-1/2 in. Filter Bag Length 37 in.

  • Page 9: Safety

    S A F E T Y For Machines Mfd. Since 10/20 Model SB1100 & SB1101 SAFETY Understanding Risks of Machinery Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).
  • Page 10 S A F E T Y Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Entanglement: Loose clothing, gloves, neckties, Chuck Keys or Adjusting Tools: Tools used to jewelry or long hair may get caught in adjust spindles, chucks, or any moving/...

  • Page 11: Additional Dust Collector Safety

    S A F E T Y For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Additional Dust Collector Safety Long-term respiratory damage can occur from using dust collectors without proper use of a respirator. Fire or explosions can result in smoke inhalation, serious burns, or death—if machine is used to collect incorrect materials, is operated near potential explosion sources, or ducting is improperly grounded.

  • Page 12: Preparation

    P R E P A R A T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 PREPARATION Preparation Overview Required for Setup The purpose of the preparation section is to help The items listed below are required to you prepare your machine for operation.

  • Page 13: Power Supply Requirements

    (with or without yellow stripes) is the equipment-grounding wire. SB1100 at 220V ........9 Amps If repair or replacement of the power cord or SB1101 at 240V ........12 Amps...
  • Page 14 Requirements for the applicable voltage, and local codes and ordinances. meet the following requirements: SB1100 ......14 AWG, 50 ft or less SB1101 ......12 AWG, 50 ft or less South Bend Tools -12-...

  • Page 15: Unpacking

    ⁄ "-20 x ⁄ " .... 2 AA. Flange Bolts ⁄ "-20 x ⁄ " ......... 6 Figure 6. SB1100 canister filter inventory. AB. Flange Bolts ⁄ "-18 x ⁄ " ......38 AC. Flange Bolts ⁄ "-18 x ⁄...

  • Page 16: Sb1101 Inventory

    P R E P A R A T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 SB1101 Inventory Main Inventory (Figure 7) A. Motor/Impeller Assembly ......1 B. Outlet Tube ............ 1 Right Collector ..........1 D.

  • Page 17: Hardware Recognition Chart

    P R E P A R A T I O N For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Hardware Recognition Chart Hardware Recognition Chart USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY Wing AND ASSEMBLY PROCESS.

  • Page 18: Location

    P R E P A R A T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Location Weight Load Refer to the Machine Specifications for the Physical Environment weight of your machine. Make sure that the...

  • Page 19: Assembly

    Attach assembly to base with (4) ⁄ "-18 x ⁄ " flange bolts (see Figure 11). Figure 13. SB1100 outlet tube attached. Inner Mounting Hole Figure 11. Motor/impeller assembly on base. Figure 14. SB1101 outlet tube attached. South Bend Tools -17-...
  • Page 20 " flange bolts (see Figure 16). 18 x ⁄ Canister Support Square Gasket Collector Figure 18. Collector attached to outlet tube and canister support. 13. SB1101 Only: Repeat Steps 11–12 with second collector. Figure 16. SB1100 canister support. South Bend Tools -18-...
  • Page 21 P R E P A R A T I O N For Machines Mfd. Since 10/20 Model SB1100 & SB1101 14. Attach filter brush motor and gear reducer 18. Attach filter cover assembly to canister filter " flange bolts (see Figure 21).
  • Page 22 P R E P A R A T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 21. Apply 42mm foam tape to outside top rim of 24. Apply 20mm foam tape to outside bottom rim collector (see Figure 23). Trim excess tape of collector (see Figure 25).
  • Page 23 AMY-2 5A 250VAC Cord Figure 30. SB1101 filter brush motor connection. Note: For full wiring diagrams, refer to SB1100 Wiring Diagram on Page 45 and SB1101 Wiring Figure 28. Filter brush motor cord routed into switch Diagram on Page 48.

  • Page 24: Test Run

    P R E P A R A T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Test Run Press Emergency Stop button in. Connect machine to power. After all preparation steps have been completed, the machine and its safety features must be Twist Emergency Stop button clockwise until tested to ensure correct operation.

  • Page 25: System Design

    The Model SB1100/SB1101 works quite well Plastic duct generates static as a point-of-use dust collector, or for collecting electrical buildup that can cause dust from up to three machines simultaneously.
  • Page 26 S Y S T E M D E S I G N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Metal Duct Flexible Duct Advantages of smooth metal duct are its Flexible hose is generally used for short runs, conductivity, efficiency, and that it does not small shops and at rigid duct-to-tool connections.

  • Page 27: System Design

    S Y S T E M D E S I G N For Machines Mfd. Since 10/20 Model SB1100 & SB1101 System Design Sketch a Basic Duct Layout For the next step, sketch how you will connect Decide Who Will Design your machines to the dust collector.
  • Page 28 S Y S T E M D E S I G N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Gradual directional changes are more If the machine does not have a built-in dust port, efficient than sudden directional changes use the following table to determine which size of (i.e.
  • Page 29 S Y S T E M D E S I G N For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Determine Main Line Duct Size Write your determined branch line sizes on your drawing, as shown in the following figure.
  • Page 30 S Y S T E M D E S I G N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 Planning Drop Downs Approximate Approximate Plan the drop downs for each machine, using Static Pressure Static Pressure blast gates wherever possible to control airflow.
  • Page 31 S Y S T E M D E S I G N For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Add the additional factors from the following Compare the total static pressure loss for table to your list. that line to the closest CFM given on the per- formance curve for your dust collector.
  • Page 32 1103 1013 759 475 187 The air flow test probe is located 1.5x duct diameter upstream from the air inlet. Test pipe length is a minimum of 10x duct diameter. Figure 50. SB1100 performance data. SB1101 Performance Curve 2000 1800...

  • Page 33: System Grounding

    S Y S T E M D E S I G N For Machines Mfd. Since 10/20 Model SB1100 & SB1101 System Grounding Ensure that the entire system is grounded. If using plastic blast gates to direct air flow, the grounding wire must be jumped (see the...

  • Page 34: Operation

    O P E R A T I O N Model SB1100 & SB1101 For Machines Mfd. Since 10/20 OPERATION Operation Overview This single-stage dust collector pulls wood dust past the impeller, which is then caught by a canister filter and deposited in the The purpose of this overview is to provide plastic collection bag below.

  • Page 35: Accessories

    To reduce this risk, only install accessories Made specifically for production shops. These recommended by South Bend or Grizzly. metal industrial dust collection fittings are simply the best you can find.
  • Page 36 A C C E S S O R I E S Model SB1100 & SB1101 For Machines Mfd. Since 10/20 H7428—8" Industrial Dust Collection Machine H7217—6" x 5' Rigid Flex Hose Adapter H7218—7" x 5' Rigid Flex Hose H5228—8" Industrial Dust Collection Pipe Clamp H7219—8"...
  • Page 37 A C C E S S O R I E S For Machines Mfd. Since 10/20 Model SB1100 & SB1101 H5293—4" Metal Duct Starter Kit SB1487—Replacement Canister Filter H5295—5" Metal Duct Starter Kit H5297—6" Metal Duct Starter Kit Save over 20% with this great starter kit. In-...

  • Page 38: Maintenance

    M A I N T E N A N C E Model SB1100 & SB1101 For Machines Mfd. Since 10/20 MAINTENANCE Cleaning Canister Filter Always disconnect machine from power before performing maintenance or This dust collector uses an automatic filter...

  • Page 39: Removing/Replacing Collection Bag

    M A I N T E N A N C E For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Removing/Replacing Removing/Replacing Collection Bag Canister Filter Remove and replace the collection bag when it is If the canister filter is clogged or dirty and about ⁄...
  • Page 40 Filter Timer AMY-2 5A 250VAC Cover Figure 70. SB1101 filter brush motor connection. Note: For full wiring diagrams, refer to SB1100 Wiring Diagram on Page 45 and SB1101 Wiring Diagram on Page 48. Figure 72. Filter cover. South Bend Tools...
  • Page 41 M A I N T E N A N C E For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Loosen hex bolt and remove lower alignment 12. Inspect foam tape on upper rim of collector arm from filter brush spindle (see Figure and replace if worn or dirty.
  • Page 42 Cord AMY-2 5A 250VAC Figure 79. SB1101 filter brush motor connection. Note: For full wiring diagrams, refer to SB1100 Wiring Diagram on Page 45 and SB1101 Wiring Figure 77. Filter brush motor cord routed into switch Diagram on Page 48.

  • Page 43: Service

    (see Figure 81) until LED indicator illuminates on remote receiver (see Figure Control & Receiver 82). The Model SB1100 & SB1101 are equipped Press pairing button on receiver with a with a remote control receiver that can be non-conducting tool, then release when LED programmed to operate up to 16 separate indicator turns off (see Figure 82).

  • Page 44: Troubleshooting

    TROU B LESHOOTI NG Model SB1100 & SB1101 For Machines Mfd. Since 10/20 TROUBLESHOOTING If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free to call us at (360) 734-1540.
  • Page 45 TROU B LESHOOTI NG For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Symptom Possible Cause Possible Solution 1. Correct motor wiring connections (Page 37). Filter brush motor 1. Motor connected incorrectly at does not start after switch box. machine is powered 2.

  • Page 46: Electrical

    E L E C T R I C A L Model SB1100 & SB1101 For Machines Mfd. Since 10/20 ELECTRICAL Electrical Safety Instructions These pages are accurate at the time of printing. In the constant effort to improve, however, we may make changes to the electrical systems of future machines.

  • Page 47: Sb1100 Wiring Diagram

    E L E C T R I C A L For Machines Mfd. Since 10/20 Model SB1100 & SB1101 SB1100 Wiring Diagram Filter Brush Main Motor 220V Motor 220V Capacitor FJ 0.5 µF 450 VAC Circuit Breaker KUOYUH 88 Series...

  • Page 48: Sb1100 Electrical Component Pictures

    SB1100 Electrical Component Pictures To Filter Brush Motor Auxiliary Start Button Contactor Remote Receiver Contactor Timer Emergency Stop Button Remote Reset Button Power To Main Cord Motor Figure 83. SB1100 switch box interior. Figure 84. SB1100 switch box cover. South Bend Tools -46-...
  • Page 49 Model SB1100 & SB1101 SB1100 Electrical Component Pictures (Cont.) Run Capacitor Circuit Breaker Run Capacitor Figure 85. SB1100 filter brush motor junction box. Figure 87. SB1100 main motor junction box. Figure 86. SB1100 start capacitor. Figure 88. SB1100 remote. South Bend Tools -47-...

  • Page 50: Sb1101 Wiring Diagram

    E L E C T R I C A L Model SB1100 & SB1101 For Machines Mfd. Since 10/20 SB1101 Wiring Diagram Filter Brush Filter Brush Main Motor 240V Motor 220V Motor 220V Capacitor Capacitor FJ 0.5 µF FJ 0.5 µF...

  • Page 51: Sb1101 Electrical Component Pictures

    E L E C T R I C A L For Machines Mfd. Since 10/20 Model SB1100 & SB1101 SB1101 Electrical Component Pictures To Filter Brush Motor Start Button Remote Receiver Auxiliary Contactor Contactor Timer Emergency Stop Button Remote Reset...
  • Page 52 E L E C T R I C A L Model SB1100 & SB1101 For Machines Mfd. Since 10/20 SB1101 Electrical Component Pictures (Cont.) Run Capacitor Circuit Breaker Start Capacitor Figure 91. SB1101 filter brush motor junction box. Figure 93. SB1101 main motor junction box.

  • Page 53: Parts

    P A R T S For Machines Mfd. Since 10/20 Model SB1100 & SB1101 PARTS SB1100 Main 37-1 37-2 37-3 37-4 37-5 37-8 37-6 37-7 37-10 37-9 37-11 27-1 27-2 27-3 27-4 27-5 27-6 27-8 27-7 27-11 27-10 27-9 South Bend Tools...
  • Page 54 P A R T S Model SB1100 & SB1101 For Machines Mfd. Since 10/20 SB1100 Parts List REF PART # DESCRIPTION REF PART # DESCRIPTION PSB1100001 BASE 27-4 PSB1100027-4 STRAIN RELIEF TYPE-3 M20 PSB1100002 BAG CLAMP 500MM 27-5 PSB1100027-5 STRAIN RELIEF TYPE-3 M30...

  • Page 55: Sb1101 Main

    P A R T S For Machines Mfd. Since 10/20 Model SB1100 & SB1101 SB1101 Main 27-5 27-2 27-1 27-6 27-3 27-4 27-7 27-8 27-9 27-10 27-11 30-1 30-2 30-3 30-4 30-5 30-8 30-6 30-7 30-9 30-10 30-11 South Bend Tools...
  • Page 56 P A R T S Model SB1100 & SB1101 For Machines Mfd. Since 10/20 SB1101 Parts List REF PART # DESCRIPTION REF PART # DESCRIPTION PSB1101001 BASE 27-5 PSB1101027-5 STRAING RELIEF TYPE-3 M30 PSB1101002 CASTER 2-1/2", SWIVEL 27-6 PSB1101027-6 CONTACTOR NHD C-18D 220V...

  • Page 57: Canister Filter

    P A R T S For Machines Mfd. Since 10/20 Model SB1100 & SB1101 Canister Filter 121-1 121-2 105A REF PART # DESCRIPTION REF PART # DESCRIPTION PSB1100101 UPPER SPINDLE LEVER PSB1100115 PHLP HD SCR M5-.8 X 8 PSB1100102 LOWER SPINDLE LEVER...

  • Page 58: Machine Labels

    The owner of this machine MUST maintain the original location and readability of these safety labels. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact South Bend Tools at (360) 734-1540 or www.southbendtools.com to order new labels.

  • Page 59: Warranty

    WARRANTY Warranty This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs.
  • Page 60 southbendtools.com Printed In U.S.A. #AI21261...
