Tyco Fire Product RAPID RESPONSE LFII Series Instruction Manual

RAPID RESPONSE Series LFII Residential Sprinklers
4.2 K-factor Flush Pendent
Wet Pipe and Dry Pipe Systems
General
Description

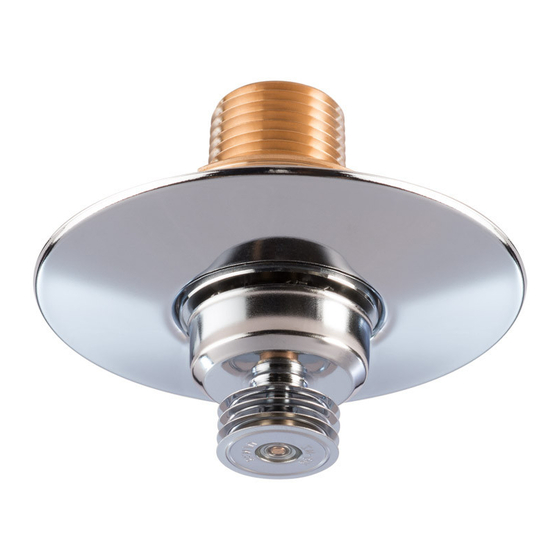

The TYCO RAPID RESPONSE Series
LFII Residential Flush Pendent Sprin-
klers (TY2284) are decorative, fast
response, fusible solder sprinklers
designed for use in residential occu-
pancies such as homes, apartments,
dormitories, and hotels. When aes-
thetics is the major consideration,
the Series LFII Residential Sprinklers
(TY2284) should be the first choice.
The Series LFII Residential Sprinklers
are intended for use in the following
scenarios:
• wet and dry pipe residential sprinkler
systems for one- and two-family
dwellings and mobile homes per
NFPA 13D
• wet and dry pipe residential sprinkler
systems for residential occupancies
up to and including four stories in
height per NFPA 13R
• wet and dry pipe sprinkler systems
for the residential portions of any
occupancy per NFPA 13
The flush design of the Series LFII Resi-
dential Sprinklers features a separable
Escutcheon providing 3/8 inch (9,5 mm)
vertical adjustment. This adjustment
reduces the accuracy to which the pipe
drops to the sprinklers must be cut.
The Series LFII Residential Sprinklers
have been designed with heat sensi-
tivity and water distribution charac-
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
teristics proven to help in the control
of residential fires and to improve the
chance for occupants to escape or be
evacuated.

Dry Pipe System Application

The Series LFII Residential Flush
Pendent Sprinklers offers a laboratory
approved option for designing dry pipe
residential sprinkler systems, whereas,
most residential sprinklers are labora-
tory approved for wet systems only.
Through extensive testing, it has been
determined that the number of design
sprinklers (hydraulic design area)
for the Series LFII Residential Flush
Pendent Sprinklers (TY2284) need
not be increased over the number of
design sprinklers (hydraulic design
area) as specified for wet pipe sprinkler
systems, as is customary for density/
area sprinkler systems designed per
NFPA 13.
Consequently, the Series LFII Residen-
tial Sprinklers (TY2284) offer the fea-
tures of non-water filled pipe in addition
to not having to increase the number
of design sprinklers (hydraulic design
area) for systems designed to NFPA 13,
13D, or 13R.
NOTICE
The Series LFII Residential Flush
Pendent Sprinklers (TY2284) described
herein must be installed and main-
tained in compliance with this docu-
ment and the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION, in addition to the stan-
dards of any authorities having jurisdic-
tion. Failure to do so may impair the
performance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
AUGUST 2018
Worldwide
www.tyco-fire.com
Contacts
Sprinkler
Identification
Number (SIN)
TY2284
TFP420
