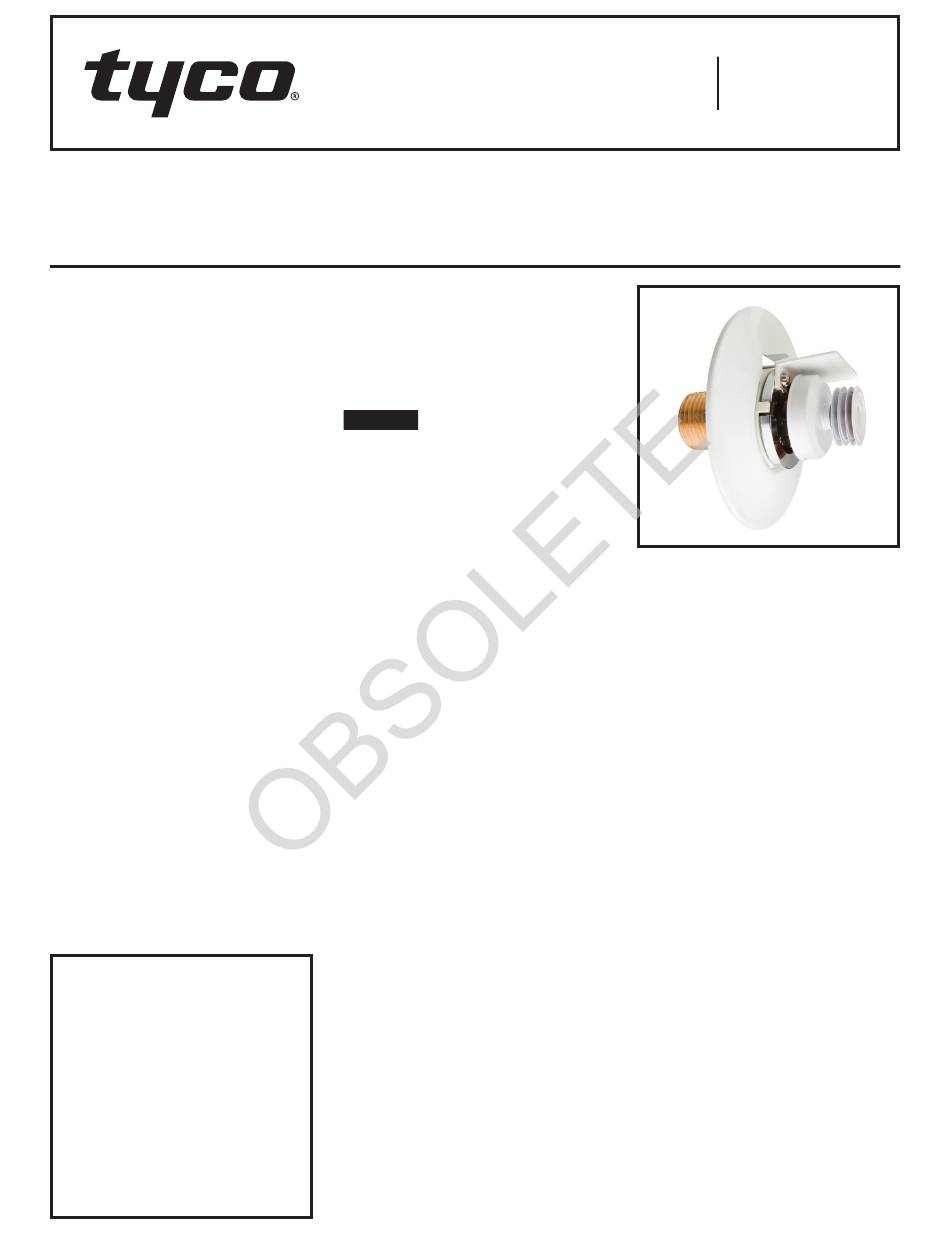

RAPID RESPONSE Series LFII Residential Sprinklers
4.2 K-factor Flush Horizontal Sidewall
Wet Pipe Systems
General
Description

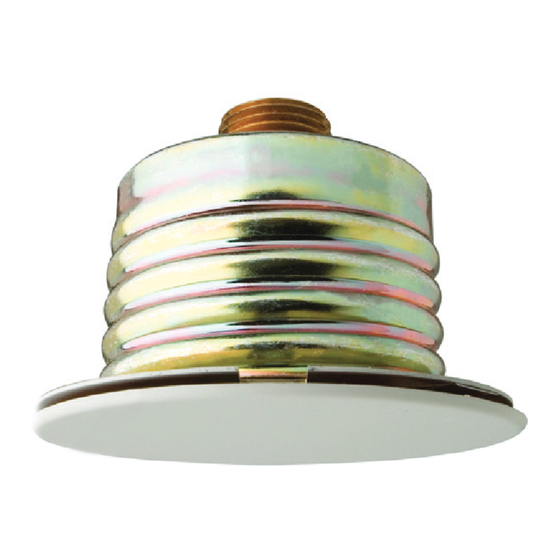

The TYCO RAPID RESPONSE Series
LFII Residential Flush Horizontal Side-
wall Sprinklers (TY2384) are decorative,
fast response, fusible solder sprinklers
designed for use in residential occu-
pancies such as homes, apartments,
dormitories, and hotels. When aes-
thetics is the major consideration, the
Series LFII Sprinklers (TY2384) should
be the first choice.
The Series LFII Residential Sprinklers
(TY2384) are intended for use in the fol-
lowing scenarios:
• wet-pipe residential sprinkler sys-
tems for one- and two family dwell-
ings and manufactured homes per
NFPA 13D;
• wet-pipe residential sprinkler sys-
tems for residential occupancies up
to and including four stories in height
per NFPA 13R
• wet-pipe sprinkler systems for the
residential portions of any occu-
pancy per NFPA 13
The flush design of the Series LFII Resi-
dential Sprinklers (TY2384) features a
separable escutcheon providing 3/16
in. (4,8 mm) horizontal adjustment. This
adjustment reduces the accuracy to
which the pipe nipples to the sprinklers
must be cut to help assure a perfect fit
installation.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
The Series LFII Residential Sprinklers
(TY2384) have been designed with heat
sensitivity and water distribution char-
acteristics proven to help in the control
of residential fires and to improve the
chance for occupants to escape or be
evacuated.
NOTICE
The Series LFII Residential Flush Hori-
zontal Sidewall Sprinklers (TY2384)
described herein must be installed
and maintained in compliance with
this document and with the applicable
standards of the NATIONAL FIRE PRO-
TECTION ASSOCIATION, in addition to
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
TY2384
Technical
Data
Approvals
UL and C-UL Listed
(For details on approvals, refer to the
Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
AUGUST 2018
Worldwide
www.tyco-fire.com
Contacts
Discharge Coefficient
K= 4.2 GPM/psi ½ (60,5 LPM/bar
Temperature Rating
162°F (72°C)
Horizontal Adjustment
3/16 in. (4,8 mm)
Finishes
Signal White
Jet Black
Chrome
Physical Characteristics
Body . . . . . . . . . . . . . . . . . . . . . . . . Copper Alloy
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Valve Cap . . . . . . . . . . . . . . . . . . . . Copper Alloy
Orifice Seal . . . . . . . . . . . . . . . . . . . . . . . . . PTFE
Heat Collectors . . . . . . . . . . . . . . . . . . . . Copper
Operation
The sprinkler assembly contains a
small fusible solder element. When
exposed to sufficient heat from a fire,
the solder melts and enables the inter-
nal components of the sprinkler to fall
away. At this point the sprinkler acti-
vates with the deflector dropping into
its operated position (Ref. Figure 1C),
permitting water to flow.
½ )
