Michelin Wheely-Safe Fitment Procedure

Michelin Wheely-Safe Fitment Procedure

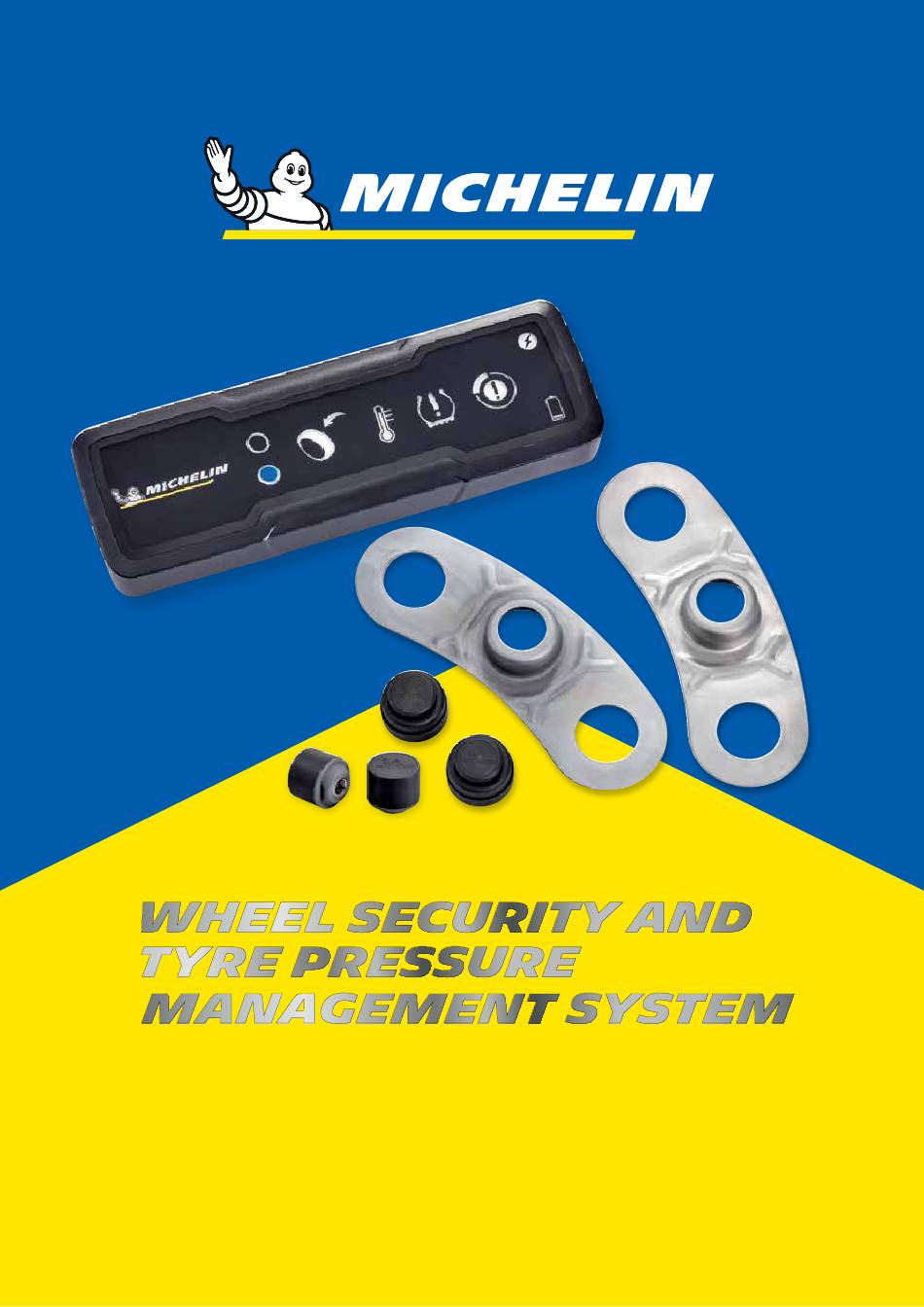

Wheel security and tyre pressure management system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MICHELIN LOGO LSCAPE WHITE.pdf
C
M
Y
CM
MY
CY
CMY
K
HEAVY fleet
FITMENT PROCEDURE
1
18/06/2018
11:36
v2-feb2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wheely-Safe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Michelin Wheely-Safe

Summary of Contents for Michelin Wheely-Safe

  • Page 1 MICHELIN LOGO LSCAPE WHITE.pdf 18/06/2018 11:36 v2-feb2019 HEAVY fleet FITMENT PROCEDURE...
  • Page 2 Please note it is imperative that all staff/personnel are aware that, although the MICHELIN Wheel Security System is an in-motion wheel loss and hub/brake temperature detection system, your normal tyre and wheel removal, maintenance & walk round procedures/policies must still be adhered to.

  • Page 3: Table Of Contents

    contents: fitment of the wired receiver........4 fitment of the solar receiver........5 fitment of wheel loss sensor and bracket....6 - 13 fitment of tyre pressure monitoring sensors (TPMS)..............14 - 17 fitment of fused signal booster (wired)....18 - 19 fitment of signal booster (solar)......20 - 21 fitment of telematics receiver (wired).....22 fitment of telematics receiver (solar).....23 Pressure checker............

  • Page 4: Fitment Of The Wired Receiver

    Stationary Sleep Mode. No Lights will be on at all in this mode. No Power If the receiver has no power during a journey then the “Michelin” Logo will not be lit. This situation must be remedied by reconnecting to the power source.

  • Page 5: Fitment Of The Solar Receiver

    fitment of the SOLAR receiver Remove the backing from the adhesive pad at the rear of the receiver taking care not to touch the adhesive surface. Find the ideal position for the receiver on the windscreen (ideally towards the top of the windscreen) ensuring that it is outside the wiper sweep.

  • Page 6: Fitment Of Wheel Loss Sensor And Bracket

    If the wheel fixing has a conical or spherical stud fixing, please contact Wheely-Safe prior to installing the system, for guidance. sensors : Black for front - blue for rear black for FRONT blue for rear The top of the sensor is identified by a Michelin logo.
  • Page 7 The black sensors are fitted on the front (tractor) wheels and blue sensors fitted to rear (trailer) wheels. For rigid vehicles, coaches & buses: Black at front, Blue at rear Different coloured sensors make it easer to identify the fault when an alert occurs on the receiver and to assist the driver/engineer in locating where the fault may lie on the vehicle.
  • Page 8 fitment of wheel loss sensor and bracket continued illus jacking wheel up The wheel that requires the wheel loss system to be fitted must be jacked up so that the tyre is off the ground. Remove all nuts and the wheel.
  • Page 9 Both the mating face of the wheel rim and bracket should be clean and free from dirt, paint, rust and grease. Put the wheel back on to the hub.
  • Page 10 fitment of wheel loss sensor and bracket - continued WHEN FITTED CORRECTLY THE TOP OF THE SENSOR WILL PROTRUDE SLIGHTLY ABOVE THE BRACKET.
  • Page 11 When fitting and tightening the wheel nuts, and in its clamped position, the sensor LED will flash 7 times for 18 seconds This is the indication that the sensor is activated and the user can have the confidence that the Michelin Wheel Security System is working.
  • Page 12 fitment of wheel loss sensor and bracket - continued REFER TO A RECOGNISED INDUSTRY STANDARD WHEEL SECURITY BEST PRACTICE GUIDELINE FOR NUT TIGHTENING SEQUENCE.
  • Page 13 Then follow your own proven wheel security procedure IMPORTANT Failure to release the clamping force of ALL the wheel nuts and only releasing the clamping force of the nuts required to fit the brackets could result in a torque imbalance. Any torque imbalance then has the potential to result in nuts coming loose in a very short journey time.

  • Page 14: Fitment Of Tyre Pressure Monitoring

    fitment of tyre pressure monitoring sensors (TPMS) PLEASE ENSURE THAT ONLY BRASS EXTENSIONS ARE USED FOR INNER WHEELS WHEN FITTING SENSORS (NOT PLASTIC- AS THESE DO NOT EMIT AIR FOR THE SENSOR TO MONITOR) Fitment information – When fitting the TPMS sensor you should ensure that IT is not touching the wheel rim.
  • Page 15 MICHELIN TYRE INFLATEv3.pdf 15/05/2017 12:51 Remove the dust cap Check the tyre pressure is correct before fitting the TPMS sensor. The target pressure is for the normal COLD operating temperature recommended by the vehicle manufacturer.
  • Page 16 fitment of tyre pressure monitoring sensors (TPMS) continued Twist on the sensor ( finger tight) Check for the red LED flashing while the clever sensor self-calibrates to the current tyre pressure.
  • Page 17 OPTIONAL: If using anti-theft nuts attach these to the tyre valve by screwing the nut onto the valve ensuring you leave enough thread so that the TPMS sensor can be fully screwed onto the tyre valve. Screw the TPMS sensor onto the valve and then using the lock nut tool tighten the nut back towards the TPMS sensor until tight.

  • Page 18: Fitment Of Fused Signal Booster (Wired)

    fitment of fused signal booster (wired) Function: To boost the signal from the rear wheel sensors to receiver. note: fit one booster to either side of the vehicle. 2 x boosters for trailers and rigid chassis. None required for tractor units. The signal booster is fitted as close to the rear most sensor (wheel loss or TPMS) as possible.
  • Page 19 Fitting position - Rigid twin axle Fitting position - Trailer...

  • Page 20: Fitment Of Signal Booster (Solar)

    fitment of signal booster (solar) The solar booster should be fitted externally in an area that is close to the rear most sensors and is visible to daylight. Because of the vast variance in trailers and rigid vehicles a degree of common sense needs to be applied.
  • Page 21 POSITION OPTION 3 POSITION OPTION 4 The signal booster should be fitted as close to the rear TPMS/Wheel loss sensor as possible. The booster should be positioned so that the solar panel is facing up-wards. Having the solar panel facing sideways is acceptable, but the booster solar panel facing down is not recommended.
  • Page 22 telematics receiver modules (wired) Note that the TRM looks similar to the booster, please refer to the typical id number RP03 on the back of the TRM wired version There are 4 wires for this type of TRM - connect as below: TX (green wire) RX (yellow wire) Power supply + (red wire)
  • Page 23 telematics receiver modules (bluetooth) The solar powered receiver has Blue Tooth built in allowing data transmission to telematic systems. Bluetooth version...

  • Page 24: Pressure Checker

    5 times again. TYRE PRESSURE MEASUREMENT Place the MICHELIN man logo of the pressure checker over the MICHELIN logo on the TPMS sensor (you will feel a magnetic pull). Within 5 seconds the TPMS sensor will detect the presence of the pressure checker.
  • Page 25 If the calibrated pressure has fallen below 24% the pressure checker will flash and bleep. RECENT HUB TEMPERATURE Place the MICHELIN man logo of the pressure checker over the wheel loss sensor and the highest hub temperature in ºC within the last 24 hours will be displayed on the pressure checker.

  • Page 26: Care And Maintenance

    Care and maintenance Regular checks should be made to ensure that the solar cells on the booster are not covered and should be kept clean using a pH neutral cleaner. All sensors should also be kept clean so that any flashing LED warning will be visible.
  • Page 27 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 28: Product Disclaimer And Warranty

    Product Disclaimer and Warranty The Wheely-Safe safety system is designed as a driver assistance device and should not be used as a substitute for regular manual wheel & tyre safety checks. Neither the seller nor the manufacturer will be liable for any loss damage or injury directly or indirectly arising from the use or inability to determine the use of this product.

  • Page 29: Warnings Alarms

    Tel: 01543 415823 We are at your service. Let us help you find a better way forward. © 2018 Michelin. www.michelin-lifestyle.com MICHELIN and/or the Michelin Man Device and/or Tel: 01543 415823 BIBENDUM are trademark(s) owned by, and used with Email: info@wheely-safe.co.uk...
