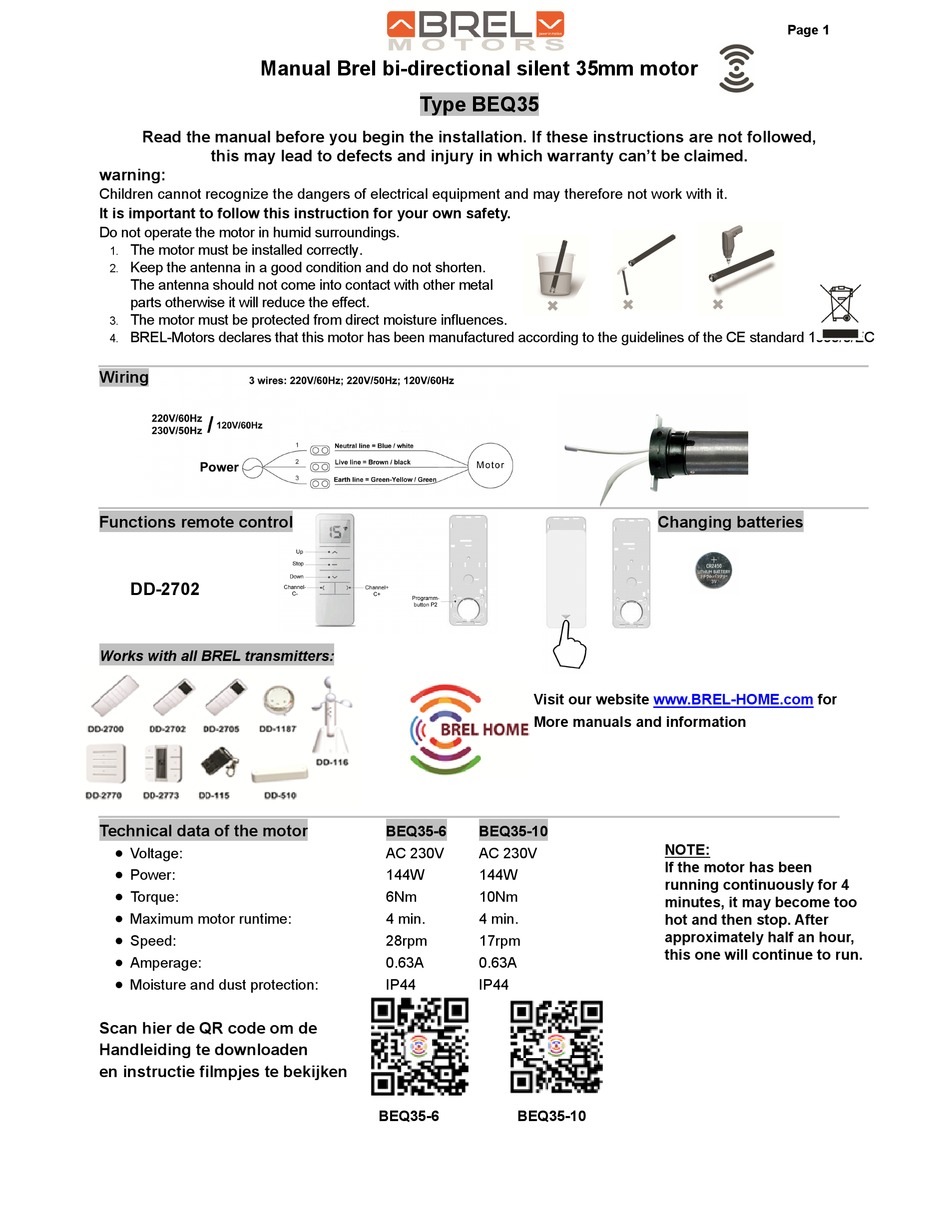

Manual Brel bi-directional silent 35mm motor
Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
It is important to follow this instruction for your own safety.
Do not operate the motor in humid surroundings.
The motor must be installed correctly.
1.
Keep the antenna in a good condition and do not shorten.
2.
The antenna should not come into contact with other metal
parts otherwise it will reduce the effect.
The motor must be protected from direct moisture influences.
3.
BREL-Motors declares that this motor has been manufactured according to the guidelines of the CE standard 1999/5/EC
4.
_______________________________________________________________________________

Wiring

_______________________________________________________________________________

Functions remote control

DD-2702
Works with all BREL transmitters:
____________________________________________________________________________

Technical data of the motor

Voltage:
Power:
Torque:
Maximum motor runtime:
Speed:
Amperage:
Moisture and dust protection:
Scan hier de QR code om de
Handleiding te downloaden
en instructie filmpjes te bekijken
Type BEQ35
Visit our website
More manuals and information
BEQ35-6
BEQ35-10
AC 230V
AC 230V
144W
144W
6Nm
10Nm
4 min.
4 min.
28rpm
17rpm
0.63A
0.63A
IP44
IP44
BEQ35-6
BEQ35-10
Page 1

Changing batteries

www.BREL-HOME.com
for
NOTE:
If the motor has been
running continuously for 4
minutes, it may become too
hot and then stop. After
approximately half an hour,
this one will continue to run.
