Fuji Electric TP-A1 Instruction Manual

Multi-function keypad
Hide thumbs
Table of Contents

Advertisement

Quick Links

多機能タッチパネル
Multi-function Keypad
富士電機株式会社
Fuji Electric Co., Ltd.
富士电机株式会社
多功能操作面板
TP-A1"
"
取扱説明書
Instruction Manual
使用说明书
INR-SI47-1810-JEC
日
本
語
汉
语

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for Fuji Electric TP-A1

Summary of Contents for Fuji Electric TP-A1

  • Page 1 取扱説明書 Instruction Manual 使用说明书 多機能タッチパネル Multi-function Keypad 多功能操作面板 TP-A1" " 日 本 語 汉 语 INR-SI47-1810-JEC 富士電機株式会社 Fuji Electric Co., Ltd. 富士电机株式会社...
  • Page 2 English Version...

  • Page 4: Preface

    Preface Thank you for purchasing our multi-function keypad "TP-A1." By mounting the multi-function keypad directly on your inverter as an attached keypad or connecting them together using an optional remote operation extension cable (CB-5S, CB-3S, or CB-1S), you can operate the inverter locally or remotely.
  • Page 5 Operation • Be sure to install the terminal cover or the front cover before turning the power ON. Do not remove the covers while power is applied. Otherwise electric shock could occur. • Do not operate switches/buttons with wet hands. Doing so could cause electric shock.
  • Page 6 Wiring • Do not operate the switches/buttons with wet hands. Doing so could cause electric shock. • Before opening the cover of the inverter to mount the multi-functional keypad, turn OFF the inverter and wait for at least five minutes for models of 22 kW or below, or ten minutes for models of 30 kW or above. Further, make sure that the LED monitor is turned OFF, the charger indicator is OFF, and the DC link bus voltage between the terminals P (+) and N (-) has dropped below the safe voltage level (+25 VDC), using a circuit tester or another appropriate instrument.

  • Page 7: How This Manual Is Organized

    How this manual is organized This manual is made up of Chapters 1 through 4. Chapter 1 BEFORE USE This chapter describes the acceptance inspection and lists the inverters the multi-function keypad is designed to interface with. Chapter 2 INSTALLATION AND INTERCONNECTION This chapter describes how to install the multi-function keypad and how to interconnect it with an inverter.

  • Page 8: Table Of Contents

    Table of Contents Preface .................. i 3.3.4 Jogging (inching) the motor  Safety precautions ............. i (Available only in FRENIC-Ace) ....3-12 How this manual is organized ..........iii 3.3.5 Switching between the remote and local modes ..........3-12 Chapter 1 BEFORE USE ..........1-1 3.3.6 Changing from keypad operation to 1.1 Acceptance Inspection ...........

  • Page 9: Chapter 1 Before Use

    TP-A1 (3) The multi-function keypad has a label of the model name "TP-A1" ("TP-A1-E2C") on the back as shown in Figure 1.1. The multi-function keypad is available in two models--"TP-A1" and "TP-A1-E2C." The languages supported by those models differ as listed below.

  • Page 10: Chapter 2 Installation And Interconnection

    Chapter 2 INSTALLATION AND INTERCONNECTION 2.1 Parts Required for Installation To install the keypad on a place other than in an inverter, the parts listed below are needed. Parts name Model Remarks Extension cable CB-5S, CB-3S and CB-1S 3 types available in length of 5 m, 3 m, and (Note 1) 1 m.

  • Page 11: Mounting The Multi-Function Keypad

    2.2 Mounting the Multi-function Keypad You can install and use the multi-function keypad in either of the following two ways: - Mounting it on the panel (see Figures 2.1 to 2.3). - Using it remotely in your hand (see Figure 2.3). ...
  • Page 12 (2) Mount the multi-function keypad on the panel wall with 2 screws as shown below. (Recommended tightening torque: 0.7 N•m) Figure 2.2 Mounting the Multi-function Keypad (3) Using the remote operation extension cable (CB-5S, CB-3S or CB-1S) or a LAN cable (straight), interconnect the keypad and the inverter;...
  • Page 13 RJ-45 connector (modular jack) Panel Multi-function keypad RJ-45 connector Remote operation extension cable (CB-5S, CB-3S, CB-1S) or LAN cable Figure 2.3 (b) FRENIC-HVAC/AQUA Connecting the Multi-function Keypad to the Inverter with Remote Operation Extension Cable or an Off-the-shelf LAN Cable (4) Be sure to put the front cover back into place before using the inverter.

  • Page 14: Chapter 3 Operation Using The Multi-Function Keypad

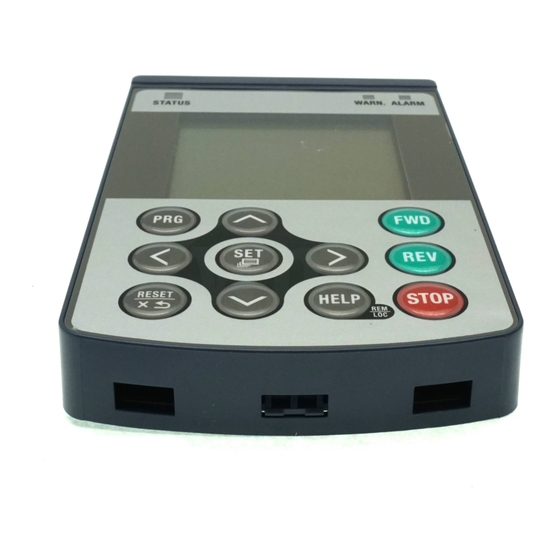

    Chapter 3 OPERATION USING THE MULTI-FUNCTION KEYPAD 3.1 Names and Functions of Keypad Components The keypad allows you to run and stop the motor, monitor the running status, specify the function code data, and monitor I/O signal states, maintenance information, and alarm information. LED indicators LCD monitor Programming keys...
  • Page 15 Table 3.2 Overview of Keypad Functions Keys Functions This key switches the operation modes between Running mode/Alarm mode Program key and Programming mode. Reset key which works as follows according to the operation modes.  In Running mode: This key cancels the screen transition. ...
  • Page 16  LCD monitor The LCD monitor shows various information of the inverter according to the operation modes. < Screen sample in Running mode > Status icons (p.3-4) Main monitor display (p.3-6) Main monitor (p.3-6) Running status Date/Time settings (p.3-6) (When RTC is ON) Sub-monitor 1 Sub-monitor 2 Help available (p.3-4)
  • Page 17 Table 3.3 Icons on the LCD Monitor Status icons that show the running status, run command sources and various icons Running status Running forward (rotation direction) Running reverse Run command Keypad source External terminals Keypad in local mode Communications link Timer operation Running under timer control (Timer enabled and run command entered)

  • Page 18: Overview Of Operation Modes

    3.2 Overview of Operation Modes The keypad features the following three operation modes:  Running mode: After powered ON, the inverter automatically enters this mode. This mode allows you to specify the reference frequency, PID command value and etc., and run/stop the motor with the keys.

  • Page 19: Running Mode

    3.3 Running Mode When the inverter is turned on, it automatically enters Running mode in which you can: (1) Monitor the running status (e.g., output frequency and output current), (2) Configure the reference frequency and PID commands, etc., (3) Run/stop the motor, (4) Switch between remote and local modes (5) Switch the operation from the keypad to the one by external signals (terminal block), and (6) Monitor light alarms...
  • Page 20 Table 3.4 Monitoring Items (Selectable anytime) (Continued) Function code data Sub- HVAC/ Monitor names Unit Meaning of displayed value monitor AQUA Timer count in Remaining time for the timer operation seconds Timer enabled. (Note 2) PID output in %, assuming the maximum PID output (Note 1) frequency (F03) as 100% Load factor of the motor in % as the...
  • Page 21 The following monitor items appear only when the related PID control or external PID control is enabled. Items being disabled cannot be displayed. Table 3.5 Monitoring Items (Selectable when PID control or external PID control is enabled) Function Sub- HVAC/ code data Monitor names Unit...
  • Page 22 Table 3.5 Monitoring Items (Selectable when PID control or external PID control is enabled) (Continued) Function Sub- HVAC/ code data Monitor names Unit Meaning of displayed value monitor AQUA for K10, External PID control 3 E. SV3 J655 PID command and its feedback converted into command (Note 13) physical quantities of the object to be controlled.

  • Page 23: Setting Up Frequency

    3.3.2 Setting up reference frequency You can set up the desired reference frequency by using keys on the keypad. It is also possible to set up the frequency command as load shaft speed, motor speed or speed (%) by setting the speed monitor selection function.* Function code K11 for the FRENIC-HVAC/AQUA series Function code E48 for the FRENIC-Ace series...

  • Page 24: Running/Stopping The Motor

    3.3.3 Running/stopping the motor FRENIC-HVAC/AQUA series LED indicators By factory default, pressing the key starts running the motor in the forward or reverse direction, respectively. Pressing key decelerates the motor to a stop. Running/stopping the motor from the LCD monitor keypad is possible in Running or Programming mode.

  • Page 25: Jogging (Inching) The Motor (Available Only In Frenic-Ace)

    3.3.4 Jogging (inching) the motor (Available only in FRENIC-Ace) To start jogging operation, perform the following procedure. (1) Make the inverter ready to jog with the steps below. 1) Switch the inverter to Running mode (see Section 3.2). 2) Press the " keys"...

  • Page 26: Changing From Keypad Operation To External Signal (Terminal Block) Operation

    3.3.6 Changing from keypad operation to external signal (terminal block) operation By factory default, both the run commands ( key) and frequency commands are sourced from the keypad. This section provides other external command source samples--an external potentiometer (variable resistor) as a frequency command source and external run switches as run forward/reverse command sources.

  • Page 27: Programming Mode

    3.4 Programming Mode Programming mode allows the setting and confirmation of function codes, and monitoring of maintenance-related and input/output (I/O) terminal information, as well as other functions. A menu format is used to enable simple function selection. The menu transition for programming mode is shown below. 3-14...
  • Page 28 Basic Screen Configuration  Main menu screen Pressing the key when the running mode screen is displayed will show the main menu screen. ← Hierarchy display + Use the keys to choose the scroll on/off desired menu item from the main menu screen. 0.Quick Setup 1.Start-up 2.Function Code...
  • Page 29 Table 3.7 Programming Mode Menus (Continued) Main Hierarchy Sub-Menu Principal Functions Menu Display 3. INV Info: Allows monitoring of inverter operational status. Power monitor PRG>3>1 Monitors the input watt-hour. Y Y N Operation monitor PRG>3>2 Displays the running information. Y Y Y I/O check PRG>3>3 Displays external interface information.

  • Page 30: Notes (Difference Between Multi-Function Keypad And Remote Keypad)

    3.5 Notes (Difference between multi-function keypad and remote keypad) In addition to the multi-function keypad (TP-A1-, this product), a remote keypad is also available. Be careful with the operational differences between those keypads. 3.5.1 Operation method (Function code F02) The multi-function keypad has the...

  • Page 31: Chapter 4 Specifications

    Chapter 4 SPECIFICATIONS 4.1 General Specifications Table 4.1 General Specifications Item Specifications Remarks Ingress protection IP40: Front side IP20: Back side Site location The product must not be exposed to dust, direct sunlight, corrosive gases, flammable gases, oil mist, vapor or water drops. (Pollution degree 2 (IEC/EN 60664-1)) The atmosphere can contain a small amount of salt.

  • Page 32: Communication Specifications

    4.2 Communication Specifications Tables 4.2 and 4.3 summarize the communication specifications. Table 4.2 Hardware Specifications Item Specifications Remarks No. of inverters One inverter for one multi-function keypad connected Connection cable Shall meet the US ANSI/TIA/EIA-568A The remote operation extension Category 5 standard cable is available as an option (10BASE-T/100BASE-TX, straight).
  • Page 33 MEMO...
  • Page 34 In no event will Fuji Electric Co., Ltd. be liable for any direct or indirect damages resulting from the application of the information in this manual.
  • Page 35 富士電機株式会社 パワエレ機器事業本部 ドライブ事業部 〒141-0032 東京都品川区大崎一丁目 11 番 2 号(ゲートシティ大崎イーストタワー) http://www.fujielectric.co.jp/ Fuji Electric Co., Ltd. Gate City Ohsaki, East Tower, 11-2, Osaki 1-chome, Shinagawa-ku, Tokyo 141-0032, Japan http://www.fujielectric.com/ 富士电机株式会社 日本东京都 141-0032 品川区大崎一丁目 11 番 2 号（Gate City 大崎东塔） http://www.fujielectric.com.cn/ 网址 2013-11 (K13/K13) 01CM...
