Remote Keypad "TP-E1"
Thank you for purchasing our Remote Keypad TP-E1.
• This product is designed to remotely control the FRENIC-Mini series of inverters. Read
through this instruction manual and be familiar with the handling procedure for correct use.
• Improper handling blocks correct operation or causes a short life or failure.
• Deliver this manual to the end user of the product. Keep this manual in a safe place until the
Remote Keypad is discarded.
• For the usage of inverters and optional equipment, refer to the instruction manuals prepared
for the FRENIC-Mini series of inverters and its optional equipment.
Fuji Electric FA Components & Systems Co., Ltd.
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Instruction Manual
INR-SI47-0843a-E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fuji Electric Frenic Mini TP-E1
Summary of Contents for Fuji Electric Frenic Mini TP-E1
- Page 1 • For the usage of inverters and optional equipment, refer to the instruction manuals prepared for the FRENIC-Mini series of inverters and its optional equipment. Fuji Electric FA Components & Systems Co., Ltd. INR-SI47-0843a-E Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 2 Copyright © 2003 Fuji Electric FA Components & Systems Co., Ltd. All rights reserved. No part of this publication may be reproduced or copied without prior written permission from Fuji Electric FA Components & Systems Co., Ltd. All products and company names mentioned in this manual are trademarks or registered trademarks of their respective holders.
-
Page 3: Preface
Preface Thank you for purchasing our Remote Keypad "TP-E1." The Remote Keypad allows you to remotely operate FRENIC-Mini series of inverters. Using this remote keypad, you can perform the operations that are available on the built-in keypad on FRENIC-Mini inverter, such as running and stopping the motor, monitoring the running status, and setting the function codes. - Page 4 Operation • Be sure to install the terminal block cover before turning the power on. Do not remove the cover during power application. Otherwise electric shock could occur. • Do not operate switches with wet hands. Doing so could cause electric shock. •...
- Page 5 Installation and cabling/wiring of option cards • Do not operate the switch SW1 with wet hands. Doing so could cause electric shock. • Before starting installing the RS485 Communications Card, first turn off the power, wait more than 5 minutes, and make sure, using a circuit tester or another appropriate instrument, that the DC voltage between the P (+) and N (-) terminals of the main circuit is less than +25 VDC.
-
Page 6: How This Manual Is Organized
How this manual is organized This manual is made up of chapters 1 through 4. Chapter 1. BEFORE USING THE REMOTE KEYPAD "TP-E1" This chapter describes the points to check upon delivery and lists the inverters the Remote Keypad is designed to interface with. Chapter 2. -
Page 7: Table Of Contents
CONTENTS Preface ..............i Safety precautions..........i How this manual is organized ........iv Chapter 1 BEFORE USING THE REMOTE KEYPAD "TP-E1" ....1-1 1.1 Check Points..........1-1 1.2 Inverters with which the Remote Keypad Interfaces ........1-1 Chapter 2 INSTALLATION, CABLING, AND WIRING ........2-1 2.1 Accessories and Parts Required for Connection.......... -
Page 8: Remote Keypad "Tp-E1
Chapter 1 BEFORE USING THE REMOTE KEYPAD "TP-E1" 1.1 Check Points Model name Unpack the package and check the following: (1) The package contains the Remote Keypad and its instruction manual (this book). (2) There have been no problems during transportation. In particular, no parts are damaged or have fallen out of place nor are there any dents on the body. -
Page 9: And Wiring
Chapter 2 INSTALLATION, CABLING, AND WIRING To connect the Remote Keypad to the FRENIC-Mini inverter, first install the RS485 Communications Card (OPC-C1-RS) on the inverter, and then use an optional Remote Operation Extension Cable (CB-5S, CB-3S, or CB-1S, depending on the distance) or an off-the-shelf LAN cable to interconnect them. -
Page 10: Installing The Remote Keypad
2.2 Installing the Remote Keypad To mount the Remote Keypad on an enclosure, follow the steps below. Installation Procedures Follow the steps below after completing the cabling work for the inverter. First, power off the inverter. To install the Remote Keypad on an enclosure (see Figure 2.1): Cut two square holes on the enclosure as shown in Figure 2.3. - Page 11 To install the Remote Keypad on an Enclosure Cut a single square hole and two screw holes in the enclosure as shown in Figure 2.3. Figure 2.3 Dimensions of Square Hole and Screw Holes Mount the Remote Keypad TP-E1 onto RJ-45 Modular jack the enclosure with 2 screws as shown in Enclosure...
- Page 12 Installing the RS485 Communications Card • Do not operate the switch SW1 with wet hands. Doing so could cause electric shock. • Before starting installing the RS485 Communications Card, first turn off the power, wait more than 5 minutes, and make sure, using a circuit tester or another appropriate instrument, that the DC voltage between the P (+) and N (-) terminals of the main circuit is less than +25 VDC.
- Page 13 Align the RS485 Communications Card with the latch and mount it onto the FRENIC-Mini so that the connector CN1 on the Card is properly inserted. Figure 2.7 Installing the RS485 Communications Card Before putting the control circuit TB cover, snip off the barrier of the RS485 Communications Cable outlet with nippers (Figure 2.6).
- Page 14 To comply with EMC Directives Use an EMC filter built-in inverter. All the connecting cables and wires must be shielded. As shown in Figure 2.9, remove outer sheath of the cable to bare the shield layer for clamping. Ground the shield onto the EMC flange Length L differs according to the for EMC compliance using clamps provided.
-
Page 15: Remote Keypad "Tp-E1

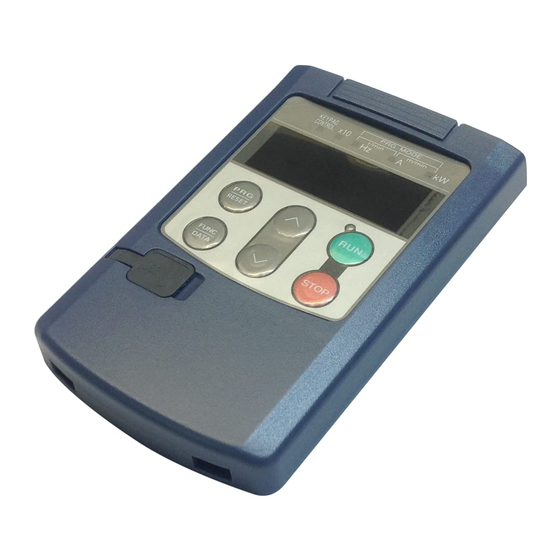

Chapter 3 OPERATION USING THE REMOTE KEYPAD "TP-E1" Familiarizing Yourself with the Remote Keypad 7-segment LED monitor The Remote Keypad is composed of a 4-digit, LED display 7-segment LED monitor, an LED display section consisting of 5 LEDs, and 6 keys as shown in Figure 3.1. -
Page 16: Operating The Remote Keypad
Table 3.2 lists the combinations of the three LEDs on the LED display, which indicate what is displayed on the 7-segment LED monitor. Table 3.2 Definition of LEDs on the LED Display Indication on LED Unit Description Frequency Output current Input power r/min Load shaft speed... -
Page 17: Data Copying
• The function codes stored in the Remote Keypad are not compatible with those stored in the inverter. Non-standard function code data may have been stored, or the inverter may have been upgraded in an incompatible manner. Consult your Fuji Electric sales office. Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... - Page 18 Figure 3.2 shows the transition flow between different states of the inverter during data copying operation, while Table 3.4 shows details of the data copying functions. The memory of the Remote Keypad can save function code data for one inverter. Figure 3.2 Status Transition during Data Copying Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 19 Basic key operation If you cannot access all the menus, set function code E52 to "2" ("Full-menu mode"). (1) On the initial menu, select "Data copying" by pressing the key or key several times until 7.CPy " " is displayed. (2) Press the key to switch to the List of data copying functions (for example, "...
- Page 20 Notes in data copying • Do not disconnect the Remote Keypad from the inverter during data copying. If you do so, the following problems will arise with the Remote Keypad and/or inverter depending upon the actual operation being in progress. Take the necessary action, following the instructions below.
-
Page 21: Chapter 4 Specifications
Chapter 4 SPECIFICATIONS 4.1 General Specifications Table 4.1 summarizes the general specifications of the Remote Keypad "TP-E1." Table 4.1 General Specifications Item Specifications Remarks Enclosure Front side: IP40; Rear side: IP20 Environment Indoor only. Ambient temperature (during operation) -10 to +50°C Ambient humidity 5 to 95% RH (no condensation) Atmosphere... -
Page 22: Communication Specifications
4.2 Communication Specifications Tables 4.2 and 4.3 summarize the communication specifications. Table 4.2 Hardware Specifications Item Specifications Remarks No. of inverters One inverter for one Remote Keypad connected Connection Shall meet the US ANSI/TIA/EIA-568A Category 5 Remote Operation cable standard (10BASE-T/100BASE-TX, straight). Extension Cables are available as options (CB-5S, CB-3S, or... - Page 23 In no event will Fuji Electric FA Components & Systems Co., Ltd. be liable for any direct or indirect damages resulting from the application of the information in this manual.
- Page 24 2003-6 (c03/c03) 1CM Fuji Electric FA Components & Systems Co., Ltd. Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
