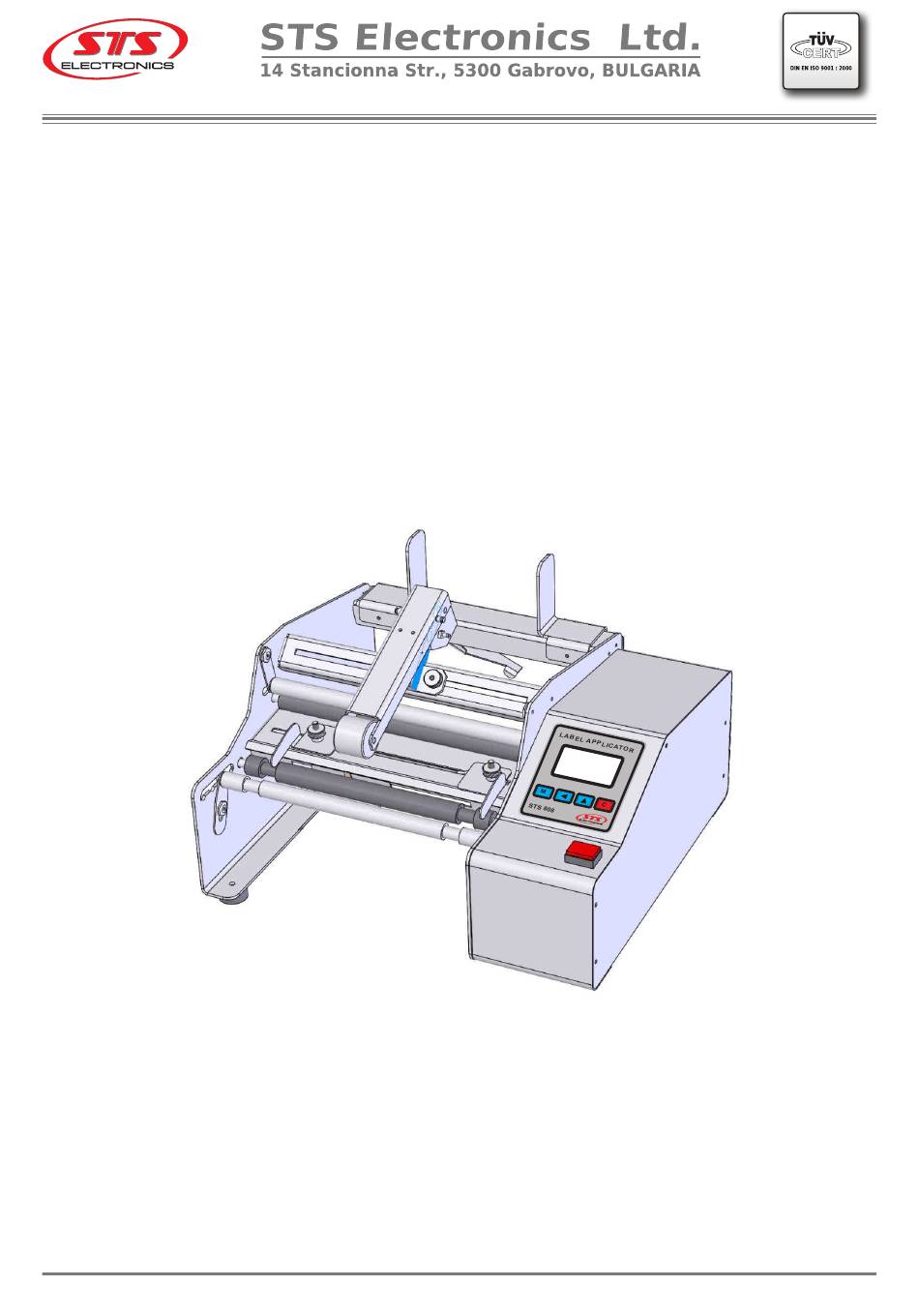

- Page 1 LABEL APPLICATOR FOR ONE AND TWO LABELS STS808-3 User manual V.2.00 phone: (+359) 66 801 536 fax: (+359) 801 547 info@stselectronics.eu www.stselectronics.eu...
-
Page 3: Technical Data

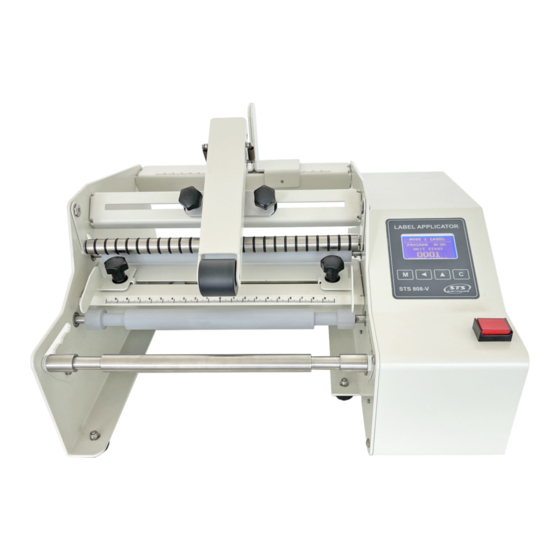

Description The machine is designed to place one or two self-adhesive labels (front and rear) on cylindrical containers of different diameter and length with smooth walls. The labels must be on one roll, (front and rear - placed consecutively) on the roll guide. The containers need to be placed and removed manually. - Page 4 Preparation for work and setup. The orientation of the container (left-right) is selected, depending on the direction of the printed labels. Adjust the pressure arm and idler roller according to the diameter of the container. Adjust the guides so that the container is in the middle of the working area. The label roll is placed on the Label bar so that the labels are against the gluing area.
- Page 5 Container Pressure Arm Magnetic Roll Guides Label Roll Bar Pressure Roller Label Drag Arm Pulling Roller Container Guides Drive Roller Idler Roller Control Panel Peel Edge Button ‘Start’ Pressure Mechanism Magnetic Roll Guides Label Guides Label Sensor Label Drag Arm Power Switch Power Connector Guiding Roller...
- Page 6 Control Panel and Setup After the machine is switched on, an advertisement logo, the MODE 1 LABEL ------------------------------ machine type / one label - 1, two labels - 2 or the combined version - 3 /, the WAIT START software version will be displayed. After that will be shown the operating mode - fig.1.
- Page 7 OFFSET STOP ------------------------------ By pressing the button the display is reset. By pressing the ------------------------------ button the set offset is confirmed and the next parameter - time move [001 ... 999 mm] motor- Fig. 10 is set. The value determines the time for rotation of the fig.9 container in order to stick the label better.
- Page 8 The process is cyclical. By pressing the button the display is TIME MOVE MOTOR reset. By pressing the button offset stop 2 is confirmed and the next ------------------------------ 02.00 parameter - time move motor - is set. The value determines the time of rotation of the container in order to stick the label better.
- Page 9 Setting Contrast and Brightness of the LCD Access to the menu to change the display settings is from the MODE 1 LABEL ------------------------------ operating mode - fig.1. WAIT START By pressing and holding for more than 3 seconds the button enters the contrast setting - fig.2.
- Page 10 Application 1. Determining the value of the parameter - Offset stop. The sensor which detect the end of the label is on 100mm/ L / before peeling edge and its position can not be changed. This requires the Offset Stop parameter to be entered the value of which varies depending on the length of the label.
- Page 11 Application 2. Determining the value of the parameter - Distance between labels Container/bottle, jar .../ Rear Label Front Label length length front label rear label length between labels L1 - length front label [mm] L2 - length rear label [mm] L3 - length between front and rear label [сm] D - diameter of the container [mm] L3 = ( ( D*3,14 - L1 - L2 ) / 2 ) /10...
- Page 12 Application 3. Determining the value of the parameter - Offset stop 1. The sensor which detect the end of the label is on 100mm/ L / before peeling edge and its position can not be changed. This requires the Offset Stop 1 parameter to be entered the value of which varies depending on the length of the label.
- Page 13 Application 4. Determining the value of the parameter - Offset stop 2. The sensor which detect the end of the label is on 100mm/ L / before peeling edge and its position can not be changed. This requires the Offset Stop 2 parameter to be entered the value of which varies depending on the length of the label.
- Page 14 NOTES V.2.00 STS808 phone: (+359) 66 801 536 fax: (+359) 801 547 info@stselectronics.eu www.stselectronics.eu...
- Page 16 GENERAL CONDITIONS for usage of electronic devices: The electronic devices are intended to be used in normal climate conditions in an environment with a normal fire-safety, and without any aggressive to the body material liquids and gases. GUARANTEE CONDITIONS: The guarantee period is 12 months from the date of selling. The manufacturer does not take responsibility in the following cases: - non-observance of storage conditions;...
