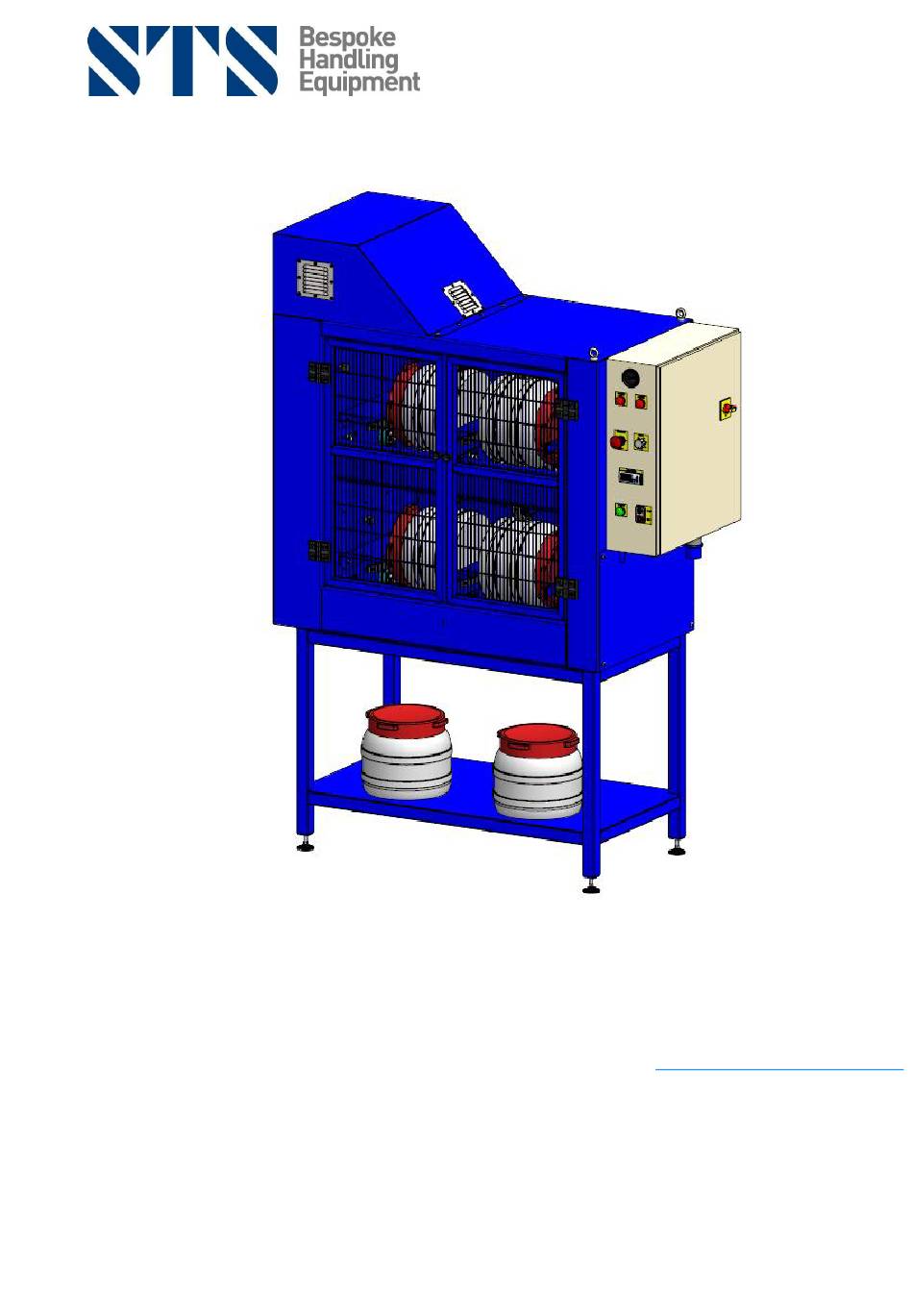

- Page 1 Operating Instructions DME04 230V Electric Drum Mixer Bespoke Handling Equipment Ltd. E-mail: sales@sts-trolleys.co.uk Leedstown Tel: +44 (0)1736 851050 Hayle Fax: +44 (0)1736 851023 Penzance TR27 6DS...
-
Page 2: Table Of Contents
Section IV – Unit Maintenance ......................10 Maintenance Checklist................................10 Consumables ....................................10 Technical Specification ................................11 Decommissioning the Mixer ..............................12 Final De-commissioning, Disposal ............................12 Safety Tests to be performed at Intervals and after Unusual Incidents................12 Operating Instructions: DME04... -
Page 3: Section I - Correct Use And Application
Only return the mixer to service when you have identified and rectified the fault Pre-start inspections Procedure Check the whole of the mixer for signs of damage Check that the markings and labels are present, clean and legible Operating Instructions: DME04... - Page 4 Thorough and expert servicing is one of the most important requirements for the safe operation of the unit. Failure to perform regular servicing can lead to unit failure and poses a potential hazard to personnel and equipment. WARNING! The application conditions of a unit have considerable impact on the wear of the service components. Operating Instructions: DME04...
- Page 5 Securing the unit for transport Tools and Material Required Tension belts/tie down straps Procedure Move the unit onto the transporting truck Park the unit securely Strap the belts around the unit and tension them sufficiently The unit can now be transported. Operating Instructions: DME04...
-
Page 6: Section Ii - Unit Description
Section II – Unit Description Application The DME04 is a static electric drum mixer with an electric rotating function designed for mixing 10 litre drums, up to 4 at a time. This is the only drum type that should be used with this unit. The intended purpose of this unit is to be able to accept, rotate and mix drums at various speeds which can be adjusted via the side mounted controls. -
Page 7: Section Iii - Unit Operation
The unit is delivered fully assembled but should be inspected for transit damage. Any damage should be reported to STS and the equipment should not be used. Never allow any part of your body or anyone else’s to be put in a position where it might cause injury. -
Page 8: Operating The Mixer
To stop the mixing process before the timer counts down, press the red stop button (10). Once mixing is complete the doors can be opened and the drum removed in reverse order of the drum loading procedure. The disabled light (8) will illuminate when the doors are open. Operating Instructions: DME04... -
Page 9: Setting The Operation Timer
There is an emergency stop button (9) on top of the panel. If this is pressed the rotation will stop. To re-set the button, twist the button clockwise. The button will then pop up and reset. If the door is opened whist the unit is operating the unit will stop. Operating Instructions: DME04... -
Page 10: Troubleshooting
In order for STS to be able to react quickly and specifically to the fault, the follow information is essential: Mixer serial number... -
Page 11: Section Iv - Unit Maintenance
● Check operation of door switches ● ● OPERATORS SHOULD REPORT ANY DEFECTS ON THE MIXER TO THE APPROPRIATE PERSON Consumables If the belts show excessive wear they should be replaced. Replacement parts are available from STS. Operating Instructions: DME04... -
Page 12: Technical Specification
Technical Specification SWL. 4 x 20kg Net Mass. 260kg System Voltage. 230V Nominal Power. 550W Max Noise Level. 79dbA Drum Range. 4 x 10L Drums Operating Instructions: DME04... -
Page 13: Decommissioning The Mixer
In the interest of all concerned it is essential that equipment of our manufacture is used only for the purposes for which it has been designed and it must be used in accordance with the instructions which are supplied. Operating Instructions: DME04...
