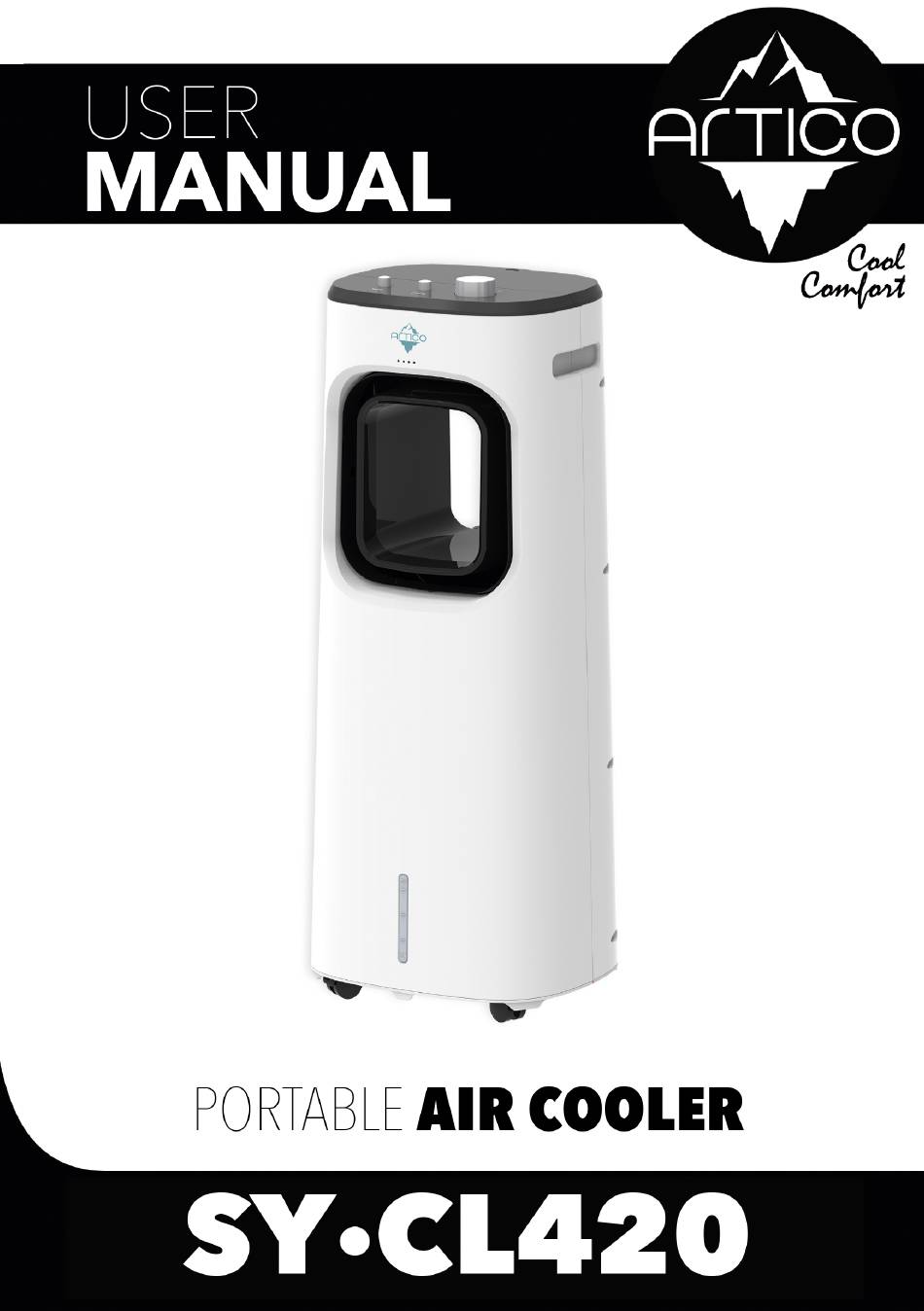

Artico SY-CL420 User Manual

Portable air cooler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-CL420 and is the answer not in the manual?

Questions and answers

Related Manuals for Artico SY-CL420

Summary of Contents for Artico SY-CL420

  • Page 2: Table Of Contents

    Welcome Thank you for purchasing the new Portable evaporative Air cooler Artico SY-CL420, in order to fully benefit from this product, please read this user guide carefully before using the product. It contains important information for your safety as well as use and maintenance advice, Keep this user guide for future reference.

  • Page 3: Important Safety Instructions

    Important safety instructions WARNING: When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury. • Use this cooler only as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.
  • Page 4 mechanical element of the portable air cooler, as it may void the warranty. • DO NOT cover the air inlets or outlets of the appliance as it may cause motor damage. Ensure adequate ventilation around the unit. • DO NOT insert or allow objects to enter through ventilation or exhaust openings, as this may damage the product and could cause an electric shock or fire.
  • Page 5 or instruction concerning use of the appliance by a person responsible for their safety. • This product is not a toy! Children should be supervised to ensure that they do not play with the appliance. • Turn the unit OFF and unplug it from the outlet when not in use, when moving the unit from one location to another and before cleaning.
  • Page 6 Electric security • Check carefully at the portable air cooler voltage before plugging it into the outlet. This device is not dual voltage. • Plug the portable air cooler into an exclusive outlet and in perfect condition to avoid overloading the mains.

  • Page 7: Intended Use

    Intended use • The evaporative air cooler is not an air conditioner as it does not use a compressor or refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner This product is intended to cool and humidify the air within the domestic environment.

  • Page 8: First Use

    1. Superior water tank cover 5. Inferior water tank 2. Superior water tank 6. Air inlet cover + filter 3. Ice boxes 7. Drain plug 4. Pressure frame 8. Castors Control Panel: Swing - Oscillation function: The louvers automatically swing from left to right and back and the vertical wind direction can be set manually.

  • Page 9: Filling The Water Tank

    2. Check that the unit is in perfect condition and that no parts are missing. 3. Spread a soft cloth or mat on a leveled floor. Carefully place the unit upside down on the soft cloth or mat. 4. Verify the wheels are properly integrated. Filling the water tank Before use, follow the procedure explained below to fill the water tank with clean, cold water up to the ‘MAX’...
  • Page 10 Superior water tank: 1. Open the top cover water tank. 2. Fill in clean, cold water into the water tank. 3. The water will flow directly to the bottom water tank. 4. Check the inferior water tank and make sure the water is not below or above the minimum and maximum levels.
  • Page 11 4. Carefully replace the water tank in its position, ensuring that the water cover is closed. 5. Make sure to close the cover after replacing the Water Tank, or else the unit will not work. Note: It is normal for the air cooler to have a slight odour or for the water stored in the water tank to have a slight discoloration during first use.

  • Page 12: Operating The Unit

    3. You may now use the control panel buttons to operate the cooler. Functions The new evaporative air cooler SY-CL420 integrates better cooling effect as it pumps the water and makes it flow from the inferior water tank to the top water tank, hence creating a better cooling effect.

  • Page 13: Humidifier

    reducing filter which enters the honeycomb cooling filter. Water is then pumped from the tank, pours over the honeycomb filter. As the warm air passes through the filter, the water absorbs the heat naturally, cooling and humidifying the air. A fan propels the cooled air out into the room.

  • Page 14: Energy Saving

    6. Energy saving This product uses water as its media and physical ways to cool down the temperature. The water tank capacity lasts a long time and the power consumption is only 65W (only 5% compared to an air-conditioner) 7. Cleaning The water tank can be easily pulled out and cleaned with a damp cloth.
  • Page 15 5. Make sure to dry the filter before reinstalling it. 6. Replace the Inner Filter and Air Inlet Cover and make sure it is well fixed in its position. WATER TANK • In the case you do not use the Cool function for a long period of time, remove the water from the water tank.

  • Page 16: Technical Specifications

    Note: Make sure the Air Inlet Cover and Water Tank are replaced in position before switching on again. Technical specifications Model: SY-CL420 Water Consumption: 0.4L/h Fan Size: φ16.3cm Rated Voltage: 220-240V – 50Hz. Motor (1/2/3): 800/1000/1200 RPM...

  • Page 17: Declaration Of Conformity

    Tel: 902 430 967 Fax: 91 8864285 NIF: B83254763 Manufacturing country: China Description: Portable Air Cooler Artico ® SY-CL420 complies with the following directives: EMC Standard: Directive 2014/30/EU LVD Standard: Directive 2014/35/EU ROHS Standard: Directive 2011/65/EU Restriction of Hazardous Substances Signed: Ajeet Nebhwani Utamchandani Sole Administrator www.sytech.es...
