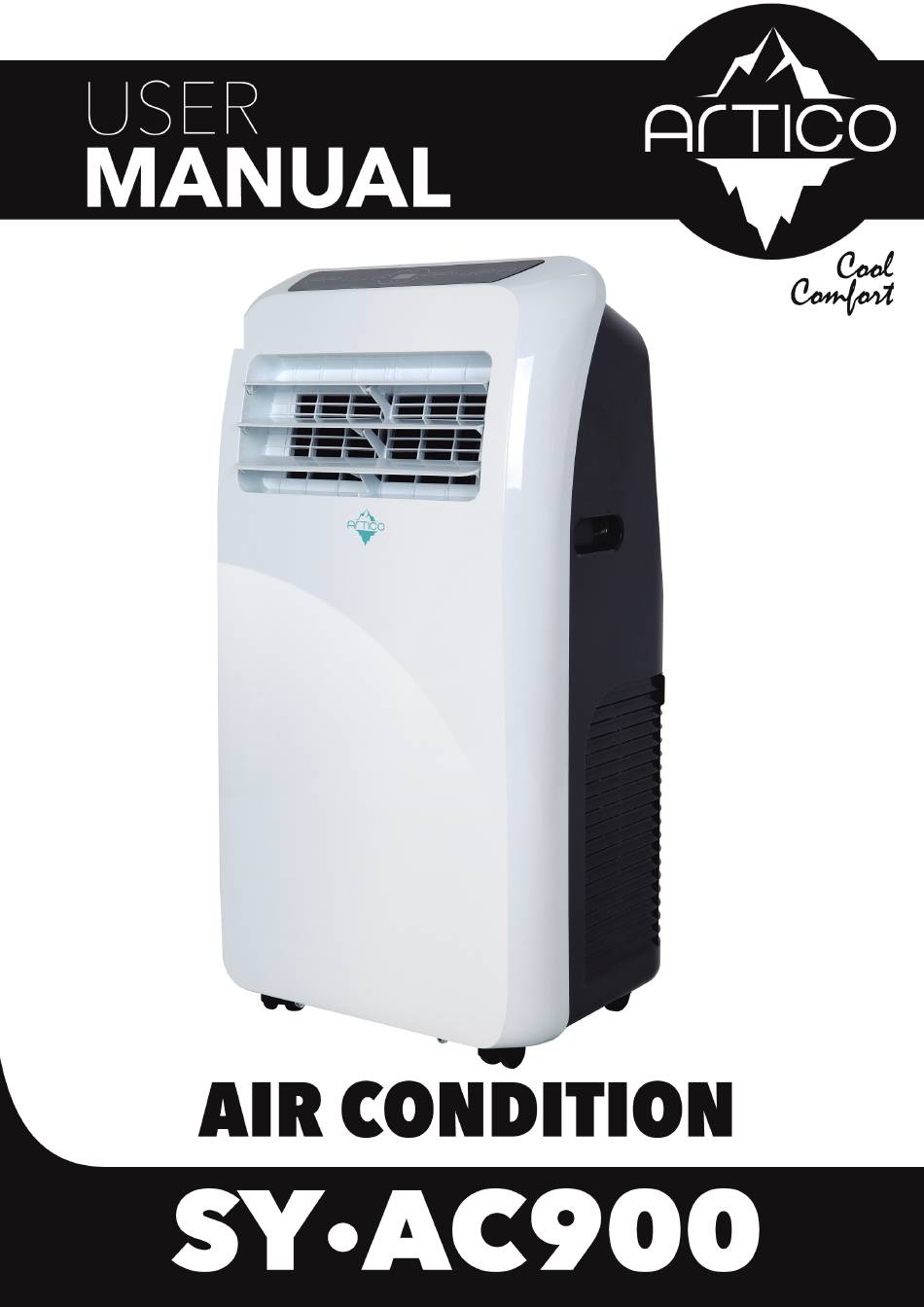

Artico SY-AC900 User Manual

Hide thumbs Also See for SY-AC900:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SY-AC900 and is the answer not in the manual?

Questions and answers

Related Manuals for Artico SY-AC900

Summary of Contents for Artico SY-AC900

  • Page 2: Electrical Connections

    Welcome Thank you for purchasing the new Portable Air Condition SY-AC1200. Read this instruction booklet carefully in order to benefit fully from this product. Store the user manual in a safe place for future reference. Important Safeguards Please read the Manual carefully before operating the machine ELECTRICAL CONNECTIONS: Before plugging the appliance into the socket, check that: The voltage corresponds to the value indicated on the rating plate...
  • Page 3 • The appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the unit safely. • Young children should be supervised to ensure that they do not play with the appliance.
  • Page 4 Special warning • Place the A/C on even ground and install it vertically so as to ensure normal operation of the compressor. • The A/C should be at least 50cm away from surrounding objects. Keep air inlet and outlet smooth. •...
  • Page 5 Parts of the SY-AC1200 9. Upper filter frame 1. Top cover 10. Protective net 2. Air outlet grille 11. Lower filter frame 3. Control panel 12. Water plug 4. Front cover 13. Remote control 5. Caster 14. Exhaust hose 6. Handle 15.
  • Page 6 Installation Warning: Before using this unit, it is important to keep it upright for at least 2 hours. The unit can later transported to another room. Please note the following instructions: Assemble hose adaptor (picture 1) （Picture 1） 1. Prepare the male and female parts of the hose adaptor. 2.
  • Page 7 Please make sure the unit is upright. 1. The unit should be placed on a flat floor and 50cm away from surrounding objects (Picture 5) (Picture 5) 2. Fix the other end of the exhaust hose to the air-outlet window kit (pictures 6 & 7) (Picture 6) (Picture 7) Warning:...
  • Page 8 Controls and Settings The portable air conditioner (Cooling only) has three main functions: cooling, dehumidifying and fan. (Please refer to the below diagram picture) Display Timer Mode Sleeping area Swing speed Max cool On/Off Down Signal Receptor When you first plug in the unit, it will enter into standby status. The digital screen will indicate the temperature (Range: 5～35 ºC / 41～95 ºF).
  • Page 9 The Auto-shut-off timer is only available when the unit is on. The Auto-run timer is only available when the unit is off. Once the timer is set, the icon will keep on flashing until it reaches the due time. If the timer needs to be set again, the previous record will be deleted automatically.
  • Page 10 Remote control LOCK RESET • Power Press the Power key to turn on or off the unit. • Mode Press the Mode key to select between cooling, dehumidifying or fan function. • Up Press the Up key to increase the temperature or adjust the time. •...
  • Page 11 • Timer Press the Timer key to set the time. The first 5 hours can be set in intervals of 30 minutes. The remaining hours can only be set in fractions of hours. Once the timer has been set, the number will blink 5 times on the remote control to confirm the setting.
  • Page 12 No refrigerant protection When in Cooling mode and dehumidifying mode, if the compressor has worked for over 10 minutes, but the temperature difference between the coil temperature and the room temperature is still less than 3 ºC and this temperature difference has lasted for over 30 minutes, the machine will enter into no- refrigerant protection.
  • Page 13 Maintenance Cleaning Please turn off the unit and unplug the unit before cleaning or carrying out any sort of maintenance Cleaning the surface Clean the housing with a duster or a soft wet cloth. Do not use any chemical solvent (such as benzene, alcohol, gasoline).
  • Page 14 Open from here If the filter is not too dirty, If the filter is very dirty, use a vacuum cleaner clean it with warm water to suck the dust. The ideal temperature of the water is 40ºC (Picture 8) After Season Maintenance 1.

  • Page 15: Troubleshooting

    Troubleshooting Do not attempt to disassemble, repair or alter the equipment yourself. This will void the warranty. The following table lists the common failures and maintenance methods of the series of portable air conditioners. When the machine runs abnormally, the following table can be a simple diagnose and repair prescription.

  • Page 16: Declaration Of Conformity

    Important information for the correct disposal of the product in accordance with directive 2002/96 / EC. At the end of its useful life, the product should not be disposed off with household waste. It must be taken to a special selective collection center of the municipal agencies or to a distributor who presents this service.
