ALT RIGA 20231 Installation & Care Manual

Thermone complete trim kit with cartridge and handle
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
last revision:
10/04/2018
#20231 Riga
ThermOne complete trim kit with cartridge and handle
#30231 Misto
Garniture pour ThermOne avec cartouche et poignée
RIGA/M IS TO
Installation & Care Guide
Guide d'installation et d'entretien
RIGA
MISTO

Advertisement

loading
Need help?

Need help?

Do you have a question about the RIGA 20231 and is the answer not in the manual?

Questions and answers

Related Manuals for ALT RIGA 20231

Summary of Contents for ALT RIGA 20231

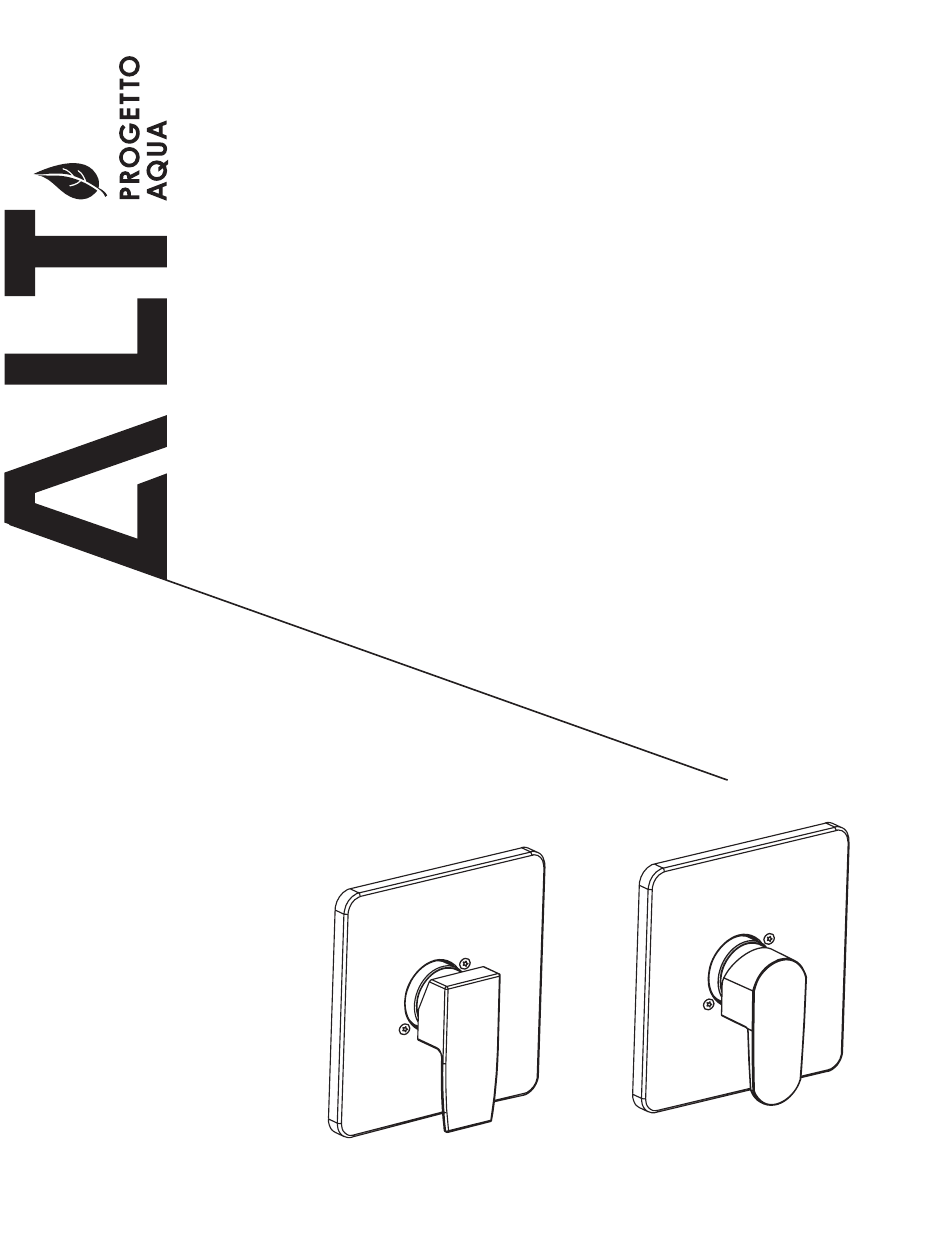

  • Page 1 RIGA/M IS TO #20231 Riga ThermOne complete trim kit with cartridge and handle #30231 Misto Garniture pour ThermOne avec cartouche et poignée Installation & Care Guide Guide d’installation et d’entretien RIGA MISTO last revision: 10/04/2018...
  • Page 2 Félicitations pour l’achat de purchase of your Alt product votre produit Alt By purchasing an Alt product, you are taking part in En achetant un produit Alt, vous prenez part au the global movement for better living. We take pride in mouvement global pour le mieux-vivre.
  • Page 3 TRIM KIT COMPONENTS COMPOSANTES DE LA GARNITURE RIGA MODEL MODÈLE RIGA MISTO MODEL MODÈLE MISTO SPECS AT LARGE / SCHÉMA DES PIÈCES 1A ALT7-60-852-01: RIGA handle / poignée RIGA 1B ALT7-60-665-01: MISTO handle / poignée MISTO ALT7-60-949-01: trim plate+screw / plaque+vis ALT7-60-706-01: decorative sleeve kit / ensemble de l'anneau décoratif ABCA-61-299: cartridge / cartouche...
  • Page 4 BEFORE YOU START AVANT DE COMMENCER CAUTION: FOR BEST RESULTS, WE STRONGLY MISE EN GARDE: POUR OBTENIR UN RÉSULTAT RECOMMEND THE INSTALLATION OF THIS VALVE BE OPTIMAL, NOUS RECOMMANDONS FORTEMENT QUE DONE BY A LICENSED PLUMBER. L’INSTALLATION DE CETTE VALVE SOIT FAITE PAR UN PLOMBIER ACCRÉDITÉ.

  • Page 5: Installation

    INSTALLATION Installing the cartridge Unscrew the cartridge holder (1) and remove the protective plug. Fig. 1. Make sure the "top" brass spacer remains in place (3). Insert the cartridge (2) into the valve body as shown. Fig.1. Make sure its guiding lugs line-up with the corresponding openings in the rough.
  • Page 6 INSTALLATION Installing the trim kit Insert the decorative sleeve (1) onto the cartridge holder. Fig.3 then screw the dome cap (4) onto the valve body. Slide in trim around the valve body and press it firmly against the wall. Make sure the trim is properly aligned with red marking (HOT water) on the left and blue marking (COLD water) on the right.

  • Page 7: Maintenance

    MAINTENANCE To Service The Cartridge If necessary, shut off the main water supply, then remove all the components from (1) to (5). Fig.4. After- wards, shut off the 2 check valves (8) by turning them clockwise with a screwdriver. Unscrew the cartridge holder (6) and remove the cartridge (7).
  • Page 8 CARE SOIN Pour nettoyer et conserver l’apparence de vos To clean your ALT faucet or accessory, wash with a wet robinets ou accesoires ALT, lavez-les avec un linge nonabrasive soapy cloth. Then wipe dry with a mouillé à l’eau tiède et enduit d’un savon doux soft towel or cloth.

  • Page 9: Warranty Garantie

    - Any and all ALT products that are subjected to any type of harsh sionnel ou par toute autre personne. abrasive, such as cleaners containing abrasive cleansers, ammonia, - Tout produit ALT nettoyé...

This manual is also suitable for:

Misto 30231
