last revision: 26/10/2020

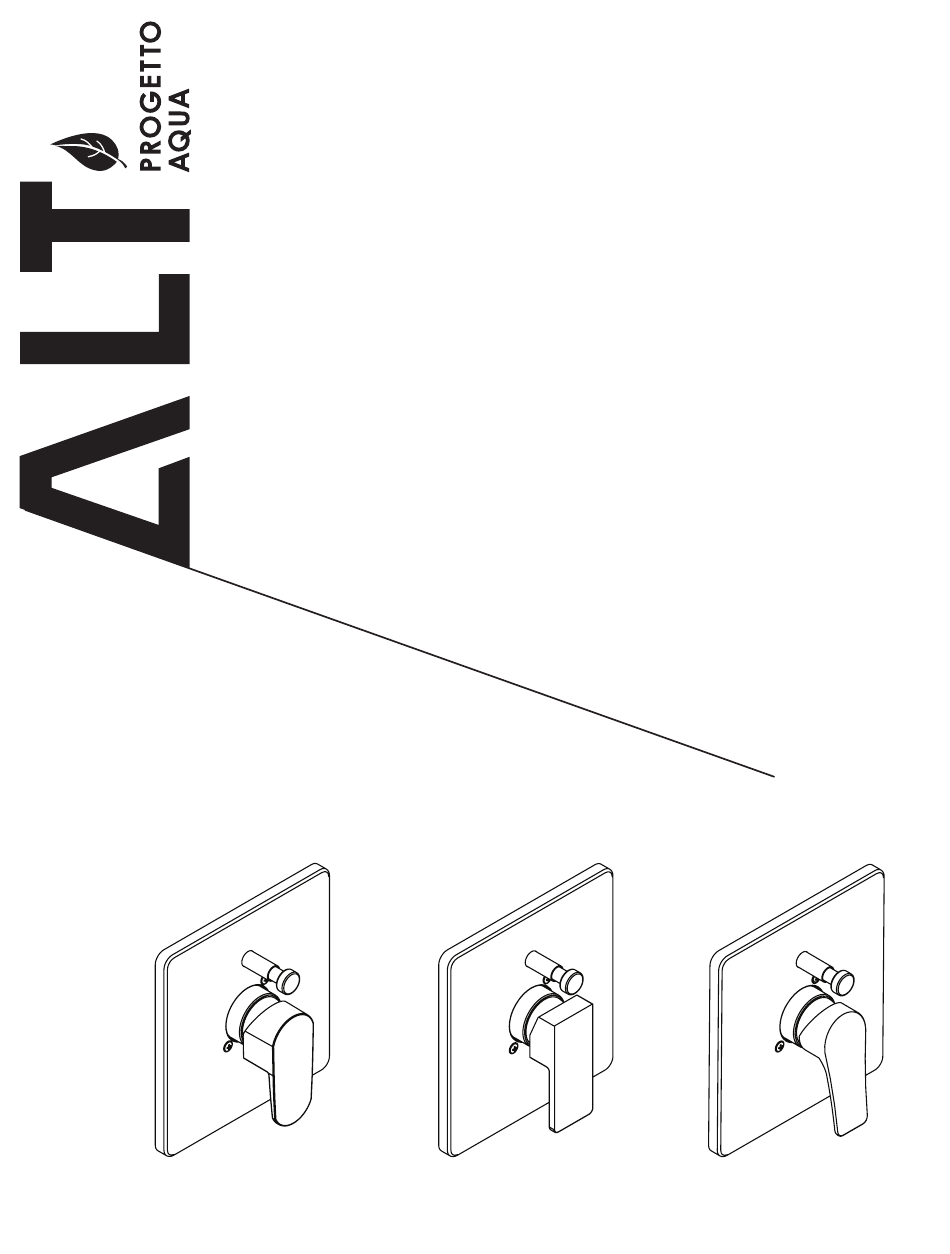

#70921 Via Dante
#20921 Riga
#30921 Misto
MISTO
V I A DANT E
Pressure balance with diverter trim kit -
cartridge and handle included
Ensemble décoratif avec déviateur pour
pression équilibrée - cartouche et poignée
incluses
Installation & care guide
Guide d'installation et d'entretien
RIGA
RI GA
M I STO
VIA DANTE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Misto 30921 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALT Misto 30921

Summary of Contents for ALT Misto 30921

  • Page 1 V I A DANT E RI GA M I STO #70921 Via Dante Pressure balance with diverter trim kit - cartridge and handle included #20921 Riga Ensemble décoratif avec déviateur pour #30921 Misto pression équilibrée - cartouche et poignée incluses Installation &...
  • Page 2 Félicitations pour l’achat de votre purchase of your Alt product produit Alt By purchasing an Alt product, you are taking part En achetant un produit Alt, vous prenez part au in the global movement for better living. We take mouvement global pour une vie meilleure. Nous...
  • Page 3 TRIM KIT COMPONENTS COMPOSANTES DE LA GARNITURE SPECS AT LARGE / SCHÉMA DES PIÈCES ALT7-60-668-01 : Via Dante handle / poignée Via Dante ALT7-60-665-01 : Misto handle / poignée Misto ALT7-60-852-01 : Riga handle / poignée Riga ALT7-60-849-01 : Trim plate+screw / plaque+vis ALT7-60-706-01 : Decorative sleeve / ensemble de l'anneau décoratif ALT7-60-697-00 : (before Q1 2016) cartridge / cartouche ALT7-60-699-00 : (since summer 2016) cartridge/ cartouche...
  • Page 4 BEFORE YOU START AVANT DE COMMENCER CAUTION: FOR BEST RESULTS, WE STRONGLY REC- MISE EN GARDE: POUR OBTENIR UN RÉSULTAT OMMEND THE INSTALLATION OF THIS VALVE BE DONE OPTIMAL, NOUS RECOMMANDONS FORTEMENT QUE BY A LICENSED PLUMBER. L’INSTALLATION DE CETTE VALVE SOIT FAITE PAR UN PLOMBIER ACCRÉDITÉ.

  • Page 5: Installing The Cartridge

    INSTALLATION Installing the cartridge Unscrew the cartridge holder (1) and remove the protec- tive plug (2) (Fig. 1). Insert the cartridge (4) into the valve body as shown Fig.2. Make sure its guiding lugs line-up with the corresponding openings in the rough. Push the cartridge until its suround- ing O-ring is firmly engaged.
  • Page 6 INSTALLATION Installing the trim kit Insert the decorative sleeve (1) onto the cartridge holder (See Fig.3), screw the dome cap (2) onto the valve body. Slide in trim around the valve body and press it firmly against the wall. Fix the trim (3) with the 2 screws supplied (5) Screw the diverter button (4), insert the handle (7) onto the cartridge broach.

  • Page 7: Maintenance

    MAINTENANCE To service the cartridge If necessary, shut off the main water supply, then remove all the components from (1) to (7). Fig.4. After- wards, shut off the 2 check valves (10) by turning them clockwise with a screwdriver. Unscrew the cartridge holder (8) and remove the cartridge (9) (Fig.
  • Page 8 CARE SOIN To clean your ALT faucet or accessory, wash with a Pour nettoyer et conserver l’apparence de vos robinets ou accesoires ALT, lavez-les avec un linge wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on mouillé...

  • Page 9: Warranty Garantie

    - Any and all ALT products that are subjected to any type of harsh produits abrasifs, de corrosion et/ou d’accidents causés par un profession- abrasive, such as cleaners containing abrasive cleansers, ammonia, nel ou par toute autre personne.

This manual is also suitable for:

Riga 20921Via dante 70921
