- Page 1 Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide First Published: 2021-02-16 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883...
- Page 2 Any products and features described herein as in development or available at a future date remain in varying stages of development and will be offered on a when-and if-available basis. Any such product or feature roadmaps are subject to change at the sole discretion of Cisco and Cisco will have no liability for delay in the delivery or failure to deliver any products or feature roadmap items that may be set forth in this document.
-
Page 3: Table Of Contents
Installing the Chassis Safety Installation Options with Rack-Mount Kits Airflow Considerations Installation Guidelines Unpacking and Inspecting the Switch Installing the Switch Using the NXK-ACC-KIT-1RU Rack-Mount Kit Grounding the Chassis Starting the Switch Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 4 Cable Management Guidelines A P P E N D I X B System Specifications Environmental Specifications Switch Dimensions Switch and Module Weights and Quantities Transceiver and Cable Specifications Switch Power Input Requirements Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
- Page 5 A P P E N D I X C LEDs Switch Chassis LEDs Fan Module LEDs Power Supply LEDs A P P E N D I X D Additional Kits Rack Mount Kit NXK-ACC-KIT-1RU Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
- Page 6 Contents Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 7: Overview

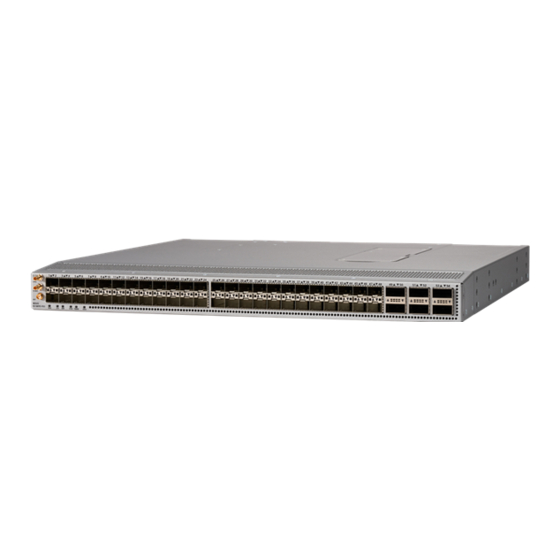

• Overview, on page 1 Overview The Cisco Nexus 93180YC-FX3 switch (N9K-C93180YC-FX3) is a 1-rack unit (RU), fixed-port switch designed for deployment in data centers. This switch has the following ports: • 48 100M/1/10/25-Gigabit Ethernet SFP28 ports (ports 1-48). • 6 10/25/40/50/100-Gigabit QSFP28 ports (ports 49-54) •... - Page 8 Management port (RJ45) or 2) (AC power supplies shown) with slots numbered 1 (left) and 2 (right) Fan modules (4) with slots USB port numbered from 1 (left) to 4 (right) Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
- Page 9 If the switch has port-side exhaust airflow (blue coloring for fan modules), you must locate the ports in the hot aisle. If you locate the air intake in a hot aisle, the switch can overheat and shut down. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
- Page 10 Overview Overview Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 11: Preparing The Site
Altitude Requirements Altitude rating is based on power supply installed; see critical components list in the system CB report for altitude rating. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 12: Dust And Particulate Requirements
The wiring is unlikely to emit radio interference if you use a twisted-pair cable with a good distribution of grounding conductors. If you exceed the recommended distances, use a high-quality twisted-pair cable with one ground conductor for each data signal when applicable. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 13: Shock And Vibration Requirements
The switch includes two power supplies (1-to-1 redundancy with current sharing) in one of the following combinations: • Two 650-W AC power supplies (NEBS compliant) • Two 1200-W HVAC/HVDC power supplies Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 14 IEC 60950 based safety standards. Note We recommend 8-AWG wire for DC installations in the U.S. Note For the power cables to use with the power supplies, see Power Cable Specifications, on page Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 15: Airflow Requirements
(for proper mounting of the bottom-support brackets or other mounting hardware). Also, you must have power receptacles that are located within reach of the power cords that are used with the switch. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 16: Clearance Requirements
Width of the front clearance area (equal to the width of the chassis with two rack-mount brackets that are attached to it). Note Both the front and rear of the chassis must be open to both aisles for airflow. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 17: Installing The Chassis
Starting the Switch, on page 19 Safety Before you install, operate, or service the switch, see the Regulatory, Compliance, and Safety Information for the Cisco Nexus 3000 and 9000 Series for important Safety Information. Warning Statement 1071 Warning Definition IMPORTANT SAFETY INSTRUCTIONS Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. -
Page 18: Installation Options With Rack-Mount Kits
You can install the switch using the following rack-mount options: • Rack-mount kit (NXK-ACC-KIT-1RU) which you can order from Cisco. This option offers you easy installation, greater stability, increased weight capacity, added accessibility, and improved removability with front and rear removal. - Page 19 This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective devices is rated not greater than 40A for the regular DC power supplies (rated 48-60VDC) and 10A for the HVDC power supplies. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 20: Unpacking And Inspecting The Switch
You must supply the eight 10-32 or 12-24 screws required to mount the slider rails and switch to the rack. Before you begin • You have inspected the switch shipment to ensure that you have everything ordered. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 21 The holes that you use depend on the requirements of your rack and the amount of clearance required for interface cables (3 inches [7.6 mm] minimum) and module handles (1 inch [2.5 mm] minimum). Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
- Page 22 Holding the switch with both hands, position the two rear rack-mount brackets on the switch between the rack or cabinet posts that do not have slider rails attached to them (see the following figure). Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
- Page 23 Tighten the 10-32 screws to 20 in-lb (2.26 N·m) or tighten the 12-24 screws to 30 in-lb (3.39 N·m). Step 5 If you attached a grounding wire to the chassis grounding pad, connect the other end of the wire to the facility ground. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 24: Grounding The Chassis
Verify that the ground wire is securely attached to the grounding lug by attempting to pull the wire out of the crimped lug. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 25: Starting The Switch
• The rack must be close enough to the dedicated power source so that you can connect the switch to the power source by using a designated power cables. • You have the designated power cables for the power supplies that you are connecting to the dedicated power sources. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 26 If there is a safety cover for the terminals, place and secure it over the terminals to avoid an electrical shock hazard. e) Turn on the power at the circuit breaker for the DC power source. Step 4 Verify that the power supply LED is on and green. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
- Page 27 A setup utility automatically launches the first time that you access the switch and guides you through the basic configuration. For instructions on how to configure the switch and check module connectivity, see the appropriate Cisco Nexus 9000 Series configuration guide.
- Page 28 Installing the Chassis Starting the Switch Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 29: Connecting The Switch To The Network
When running cables in overhead or subfloor cable trays, we strongly recommend that you locate power cables and other potential noise sources as far away as practical from network cabling that terminates on Cisco equipment. In situations where long parallel cable runs cannot be separated by at least 3.3 feet (1 meter), we recommend that you shield any potential noise sources by housing them in a grounded metallic conduit. - Page 30 Connect the other end of the RJ-45 rollover cable to the console or to a modem. What to do next You are ready to create the initial switch configuration (see Creating the Initial Switch Configuration, on page 25). Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 31: Creating The Initial Switch Configuration
To connect the switch to the network, you can use the default choices for each configuration except the IP address, which you must provide. You can perform the other configurations later as described in the Cisco Nexus 9000 Series NX-OS Fundamentals Configuration Guide. -
Page 32: Setting Up The Management Interface
RJ-45 connectors. For longer connections, you can use an optical cable with SFP transceivers (LH or SX type). Note Use only one of these management ports—the switch does not support the use of both management ports. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 33: Connecting Interface Ports To Other Devices
When removing transceivers from the switch, it is best to remove the optical cable first and then remove the transceiver. To determine which transceivers, adapters, and cables are supported by this switch, see the Cisco Transceiver Modules Compatibility Information document. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 34 Connecting the Switch to the Network Connecting Interface Ports to Other Devices Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 35: Replacing Components
On the fan module that you are removing, press the two sides of the fan module handle next to where it connects to the fan module and pull on the handles enough to unseat it from its connectors. Step 2 Holding the handle, pull the module out of the chassis. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 36: Installing A Fan Module
• Ensure that the chassis is grounded. For grounding instructions, see Grounding the Chassis, on page Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 37: Removing An Hvac/Hvdc Power Supply
You are ready to install an HVAC/HVDC power supply in the open slot. Removing a DC Power Supply You can remove one power supply while the other one provides power to the switch. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 38: Installing An Ac Power Supply
Holding the replacement power supply with one hand underneath the module and the other hand holding the handle, turn the power supply so that its release latch is on the side and align the back end of the power supply (the end with the Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 39: Installing An Hvac/Hvdc Power Supply
If the power supply does not fit into the open slot, turn the module over before sliding it into the open slot. Note Step 2 Test the installation by trying to pull the power supply out of the slot without using the release latch. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 40: Installing A Dc Power Supply
Step 2 If the DC power cables and a grounding cable are already connected to an electrical connector block, insert the block into the power receptacle on the power supply. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 41: Wiring A 48 V Dc Electrical Connector Block
Strip 0.6 inches (15 mm) of insulation off the DC wires that you are using. Step 4 Orient the connector as shown in the following figure with the orange plastic button on top. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 42 "+ DC". Step 9 Verify that the other ends of the cables are attached to the DC power source and ground. You are then ready to turn on the DC power source. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 43: Rack Specifications
• Standard 19-inch (48.3 cm) (two- or four-post EIA cabinet or rack, with mounting rails that conform to English universal hole spacing per section 1 of ANSI/EIA-310-D-1992). For more information, see Requirements Specific to Perforated Cabinets, on page Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 44: Requirements Specific To Standard Open Racks
To help with cable management, you might want to allow additional space in the rack above and below the chassis to make it easier to route all of the fiber optic or copper cables through the rack. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 45: System Specifications
6000 to 13000 feet (1828.8 to 3962.4 meters) (-5°C to 45°C; system operating temperature, 100% Load Short Term Condition) 6000 to 13000 feet (1828.8 to 3962.4 meters) (-5°C to 55°C; system operating temperature, 60% Load Long Term Condition) Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 46: Switch Dimensions
Some power supplies have capabilities that are greater than the maximum power requirements for a switch. To determine the power consumption characteristics for the switch, use the typical and maximum requirements that are listed in the following table. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 47: Power Specifications
Power supply standby voltage 12 VDC Efficiency rating Climate Savers Platinum Efficiency (80Plus Platinum certified) Form factor RSP1 1200-W HVAC/HVDC Power Supply Specifications These specifications apply to the 1200-W HVAC/HVDC (N9K-PUV-1200W) power supplies. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 48: 930-W Dc Power Supply Specifications
23 A at -48 VDC Maximum output power per power supply 930 W Maximum inrush current 35 A (sub-cycle duration) Maximum hold-up time 8 ms at 930 W Power supply output voltage 12 VDC Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 49: Power Cable Specifications
North America CAB-9K12A-NA 125 VAC, 13 A, NEMA 5-15 plug, 8.2 feet (2.5 m) North America CAB-AC-L620-C13 NEMA L6-20-C13, 6.6 feet (2.0 m) North America CAB-N5K6A-NA 200/240V, 6A, 8.2 feet (2.5 m) Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 50: Hvac/Hvdc Power Cables Supported By Aci-Mode And Nx-Os Mode Switches
2-foot (0.6 m) cable with Saf-D-Grid and RT connector 277V AC CAB-HVDC-3T-2M HVDC 6.6-foot (2.0 m) cable with Saf-D-Grid and three terminal connectors 300V AC / 400V DC (+200/-200 V DC) Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 51: Dc Power Cable Specifications
Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC. Safety • CAN/CSA-C22.2 No. 60950-1 Second Edition • EN 60950-1 Second Edition • IEC 60950-1 Second Edition • AS/NZS 60950-1 • GB4943 Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 52 • CNS13438 Class A EMC: Immunity • EN55024 • CISPR24 • EN300386 • KN 61000-4 series RoHS The product is RoH-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
-
Page 53: Leds
Temperature exceeds the major alarm threshold. The switch is not receiving power. Green Fans and power supply modules are operational. Amber At least one fan or power supply module is not operating. Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 54: Fan Module Leds
Power supply is not receiving power. Green Flashing amber Power supply warning—possibly one of the following conditions: • High voltage • High power • Low voltage • Slow power supply fan Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... -
Page 55: Additional Kits
Hazardous substances list for customers in China The following table lists and illustrates the console cable (CAB-CONSOLE-RJ45) that can be ordered. Illustration Description Quantity Console cable with DB-9F and RJ-45F connectors Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide... - Page 56 Additional Kits Additional Kits Cisco Nexus 93180YC-FX3 NX-OS Mode Switch Hardware Installation Guide...
