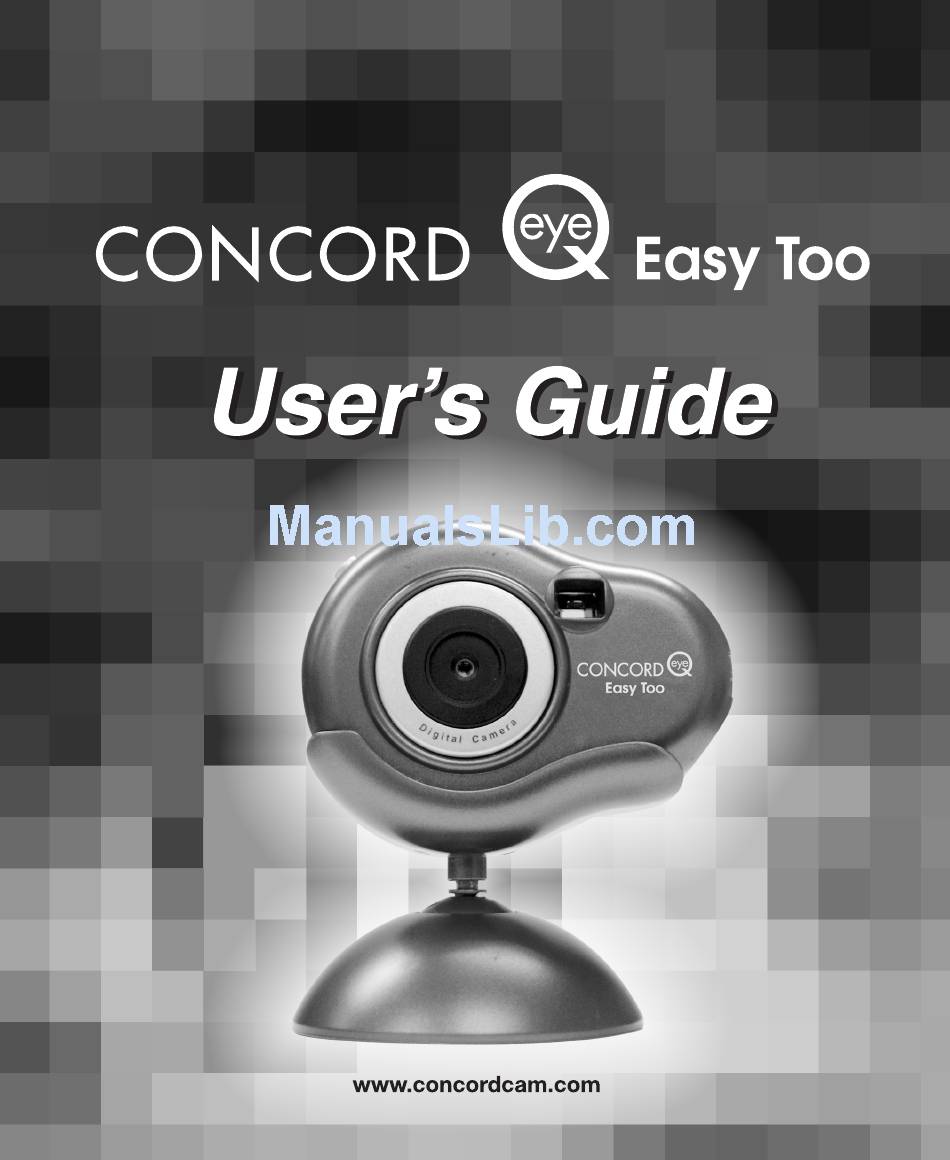

CONCORD Eye-Q Easy Too User Manual

Concord camera eye-q easy too: instruction manual
Hide thumbs Also See for Eye-Q Easy Too:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eye-Q Easy Too and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CONCORD Eye-Q Easy Too

Summary of Contents for CONCORD Eye-Q Easy Too

  • Page 2: Table Of Contents

    Table of Contents Important Information...2 Precautions ...3 1. Product Overview ...4 Getting started ...5 Camera features and accessories ...5 Important battery information ...6 Turning the camera on and off and learning the LCD display...7 Selecting the power supply ...8 Inserting the batteries...8 2.

  • Page 3: Important Information

    IMPORTANT INFORMATION FCC Statement This device complies with part 15 the FCC Rules. Operation is subject to the following two conditions: (i) This device may not cause harmful interference, and (ii) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Precautions

    Notes on Copyright Images recorded using your digital camera system cannot be used in ways that infringe copyright laws without the consent of the owner unless intended only for personal use. Note that some restrictions apply to photographing stage performances, entertainment and exhibits, even when intended purely for personal use.

  • Page 5: Product Overview

    1. Product overview FRONT BACK 5. LCD display 6. Feature button 7. Battery Compartment 1. Shutter Button 2. Viewfinder 3. Strap eyelet 4. Lens...

  • Page 6: Getting Started

    Getting started Congratulations on your purchase of the Concord Eye-Q Easy Too digital camera. This camera features 8 MB of internal SD RAM memory allowing you to store still images or short video clips in the camera. Please read this manual before operating the camera to become more familiar with the features of this versatile digital camera.

  • Page 7: Important Battery Information

    Important battery information The Eye-Q Easy Too camera uses a type of memory that continually draws power to retain the pictures in the camera’s internal memory even if the camera is powered off. If the battery power is depleted and you have not transferred your images to the computer, you will lose them.

  • Page 8: Turning The Camera On And Off And Learning The Lcd Display

    Turning the camera on and off and learning the LCD display Turn the camera on by pressing the Feature Button once. Two beeping sounds will be heard. Press the Feature Button to cycle through the Feature Modes. To exit the Feature Mode, continue to press the Feature button until the LCD displays a number or wait 5 seconds without pressing any buttons.

  • Page 9: Selecting The Power Supply

    Selecting the power supply To extend the battery life, remove the batteries from the camera when it is not in use. Remember to transfer your pictures to your computer first or you will lose them. Note: • Do not use different types of batteries together. •...

  • Page 10: Taking Pictures

    2. Taking Pictures Press the shutter button once to take a picture. A high-pitched beeping sound will indicate that the picture was taken and the counter displayed on the LCD will decrease showing the number of images left. Note: A low- pitched beeping sound indicates that the image has not been taken.

  • Page 11: Changing The Resolution

    Changing the resolution To change the resolution, press the Feature Button until the resolution option is displayed in the LCD. The resolution is noted by HI for high resolution and Lo for Low resolution. When the resolution you are currently in appears in the LCD, press the shutter button to change to the other resolution option.

  • Page 12: Using The Self-Timer

    Self-Timer Press the Feature Button until ‘St’ appears in the LCD. Press the Shutter button to start a 10-second self-timer count down. The camera will issue a series of short beeps followed by a long beep. When the image has been captured, the camera will beep again.

  • Page 13: Changing The Lighting Frequency

    Changing the Lighting Hz Different countries use different lighting frequencies. The US uses a 60Hz frequency while Europe uses a 50Hz frequency. The Easy Too camera gives you the option to switch the Hz frequency as you travel. To change the frequency, press the Feature Button until the frequency option denoted by either 50 or 60 is displayed in the LCD.

  • Page 14: Delete Funtion

    Delete Funtion Press the Feature Button until either CA or CL appears in the LCD. • CA stands for clear all and is used to delete all images. • CL stands for clear last and is used to delete the last image. To delete the last image taken, press the shutter button once after CL appears in the LCD.

  • Page 15: Installing The Camera Driver

    3. Installing the Camera driver Installing the software on a Windows PC The following software will be installed in the installation sequence: • Arcsoft PhotoImpression 3 1. Concord EyeQ Easy too setup is preparing the installshield wizard which guide you though the rest of the setup process, click "cancel"...
  • Page 16 7. Setup will add program icon to the program folder list. You may type a new folder name, or select one from the existing folder. Press "next" to continue to next process. 8. PhotoImpression setup is performing the request operation. Finally, press "Finish" to complete the installation.

  • Page 17: Connecting The Camera To Your Pc

    Connecting the camera to your PC When you finish taking pictures, you can connect your camera to your PC and upload your images through the USB cable supplied. Plug one end of the USB cable into your camera and the other end into the USB port of your PC (located either at the back your PC or in the front panel).

  • Page 18: Uploading Your Video Clips To Your Pc

    It will affect the movie clip length. Video conference mode The Eye-Q Easy Too can be used as a web cam with different videoconference and video capturing software available in the market. Select the source in the video application to launch the video mode.

  • Page 19: Uninstalling The Software On A Windows Pc

    Uninstalling the software on a Windows PC The User can automatically uninstall the software using the "Add/Remove Program" in the Control Panel. Note: Use this procedure only when the installed software is no longer required or when the software installation fails. Procedure: 1.

  • Page 20: Uninstalling The Driver On A Windows Pc

    Uninstalling the driver on a Windows PC User can automatically uninstall the driver using "Device Manager" in the Control Panel. Note: Use this procedure only when the digital camera is no longer required or when the driver installation fails. Procedure: 1.

  • Page 21: Cleaning And Maintenance

    4. Cleaning and maintenance Be sure to read this information to ensure that you use your camera correctly. Places to Avoid Do not store or use the camera in the following places or locations: • Very humid, dirty or dusty places. •...
  • Page 22 Storing the camera If you do not intend to use the camera for a long period of time, remove the batteries before storing the camera. Cleaning your Camera Use a blower brush to remove dust from the lens and LCD surface and then wipe lightly with a soft, dry cloth.

  • Page 23: Troubleshooting

    The troubleshooting guide is designed to help you. If problems continue, please contact your local customer support hot-line. For Windows® User: SYMPTOM PROBLEM You have lost power to your CONCORD EYE-Q EASY Too All the images I have taken do not by either: appear.
  • Page 24 SYMPTOM PROBLEM My CD installation The auto installation file wizard does not is switched to off or the work. CD ROM is not in the drive. The image The camera is processing counter on the the image. LCD flashed after I took my last image.

  • Page 25: Getting Help

    6. Getting Help If you need help with your camera, refer to the Troubleshooting section of this manual. If you still cannot find the solution, visit our Web site at www.support.concordcam.com. answered in the Frequently Asked Questions (FAQ) section. Toll Free in the US and Canada: •...

  • Page 26: Camera Specifications

    7. Camera Specifications Image sensor Image resolution Internal memory Storable frame Video frame rate Exposure Optical viewfinder Lens Focus range Audio recording File format Self-timer Delete pictures method Output connector Zoom rate 640 x 480 CMOS sensor Still picture : High : 640 x 480 pixels Low : 320 x 240 pixels Movie :...
  • Page 27 Camera Specifications LCD display Beeper Auto power-off Low battery warning /indicator Power supply Back up power Dimension Weight Bundled accessories Software bundle Viewfinder range % Show image counter Self timer mode Delete all mode Change resolution (Hr/Lr) High density mode (Hd/Ld) Stand by mode (After 20 seconds inactivity) LCD display will flash 2 x AAA alkaline battery...

  • Page 28: Warranty Information

    8. Warranty Information LIMITED WARRANTY The manufacturer warrants your Concord Eye-Q Easy Too camera for a period of 1 year from the date of purchase to be free from defects in material and workmanship. The warranty period shall be extended accordingly if applicable mandatory legislation in effect on the date of purchase requires a longer warranty period.

  • Page 29: Technical Suppor T Hot Line

    Technical Suppor t Hot Line: Toll Free In the USA & Canada 1-866-522-6372 Toll Free In Europe UK: 0800-169-6482 BELGIUM: 0800-787-57 FRANCE: 0800-917-599 GERMANY: 0800-1800-563 SPAIN: 900-973-195 ITALY: 800-781-883 All Other Countries - Toll 31-53-482-9779...
