Summary of Contents for Outdoor GreatRoom Company DAR-1224-K

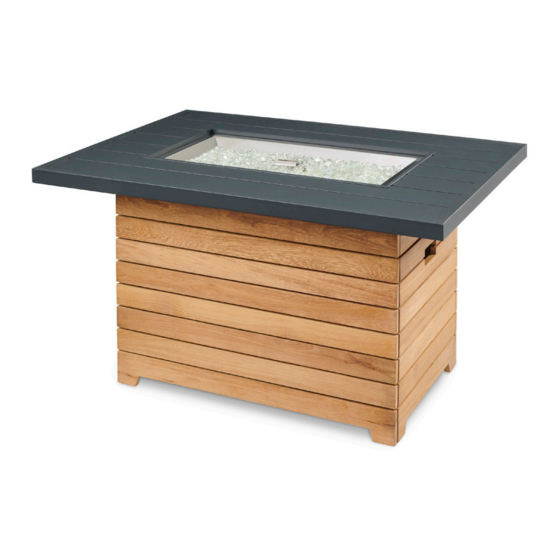

- Page 1 Darien Fire Table Installation Instructions for Darien Fire Pit Table DAR-1224-K, DAR-1224-EBG-K outdoorrooms.com...
-
Page 2: Table Of Contents
IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE® PLUS BURNER WITHOUT CONSULTING THE CRYSTAL FIRE®... -
Page 3: About Your Fire Table
ABOUT YOUR FIRE TABLE A. REQUIRED TOOLS XXXX • Utility Knife To cut and remove packaging • 2 Open Ended Wrenches FAA125 To secure gas connections • Phillips Screw Driver (Do not use a drill to assemble) For assembly • One AAA Battery (Not Included) Required for electric spark igniter installation B. -
Page 4: Assembly Instructions
Qty. ASSEMBLY INSTRUCTIONS WARNING Exposed edges may be sharp, use leather gloves when removing packaging and handling the base. Do not remove protective cardboard packaging until you have placed the fire pit in its desired location. A. UNPACKING Do not discard any packaging until assembly is complete and unit is tested. - Page 5 Using 2X M6*30 Bolts (G) and 2X M6*Ø16 Washers (J), attach Side Metal Panel (C) to Tank Support Base (F) as shown in image below. Loosely tighten with supplied allen wrench. Using 4X M6*30 Bolts (G) and 4X M6*Ø16 Washers (J), attach Back Panel (D) to both Side Panels (B &...
- Page 6 Align Door panel (E) pegs to slotted tab openings. Press Door Panel (E) back to metal located on Side panels (B & C). See below for referance. Metal Magnet Fully tighten all screws after completing Step 4. outdoorrooms.com...
-
Page 7: Cf-Sparker Assembly
C. CF-SPARKER ASSEMBLY • Locate CF-SPARKER inside of Crystal Fire® Plus burner box. • Remove CF-SPARKER cap and hex nut. Insert AAA battery (not included) with + end out. • Install CF-SPARKER into control panel as shown below. CF-SPARKER must be installed BEFORE control valve. -
Page 8: Top Assembly
D. TOP ASSEMBLY ASSEMBLY Using 4X M6*20 Bolts (H) and 4X M6*Ø16 Washer (J), attach Top (A) to the assembled base as shown in image below. Tighten with the use of supplied allen wrench. * Follow the same process listed above to attach Everblend (DAR-1224-EBG-K) style top. -
Page 9: Setting Up Your Burner
SETTING UP YOUR BURNER ATTENTION Read and understand your Crystal Fire® Plus owner’s manual before beginning burner hookups or using the device. DO NOT USE TEFLON TAPE OR PIPE DOPE ON FLARE FITTINGS. IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. -
Page 10: Thermocouple Installation
B. THERMOCOUPLE INSTALLATION • Refer to Crystal Fire® Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. DETAIL A SCALE 0.800 DETAIL B SCALE 0.800 C. ELECTRODE INSTALLATION • Plug both BLACK wires hanging from the burner into the back of the CF-SPARKER. -
Page 11: Propane Tank Installation
ATTENTION D. PROPANE TANK INSTALLATION • With the propane tank valve HAND TIGHTEN, DO NOT USE A WRENCH FOR THIS CONNECTION. and fire pit valve off, attach the propane regulator to the propane tank. PROPANE REGULATOR • Place tank in tank tray. •... -
Page 12: Miscellaneous
4. MISCELLANEOUS WARNING A. FIRE MEDIA INSTALLATION • Scatter all included glass beads, lava DO NOT OPERATE CRYSTAL FIRE® rock, or other approved fire media PLUS BURNER WITHOUT INCLUDED evenly across entire burner surface. GLASS BEADS OR OTHER APPROVED FIRE MEDIA. WARNING B. -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS IMPORTANT Before operating your DAR-1224, DAR-1224-EBG ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire® Plus manual for information on proper leak checking and other critical safety information. WARNING FIRE OR EXPLOSION HAZARD If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. -
Page 14: Warnings
6. WARNINGS IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE® PLUS BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE®... - Page 16 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1 year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/product-registration to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
