Summary of Contents for Outdoor GreatRoom Company The Wave WV-56 Table

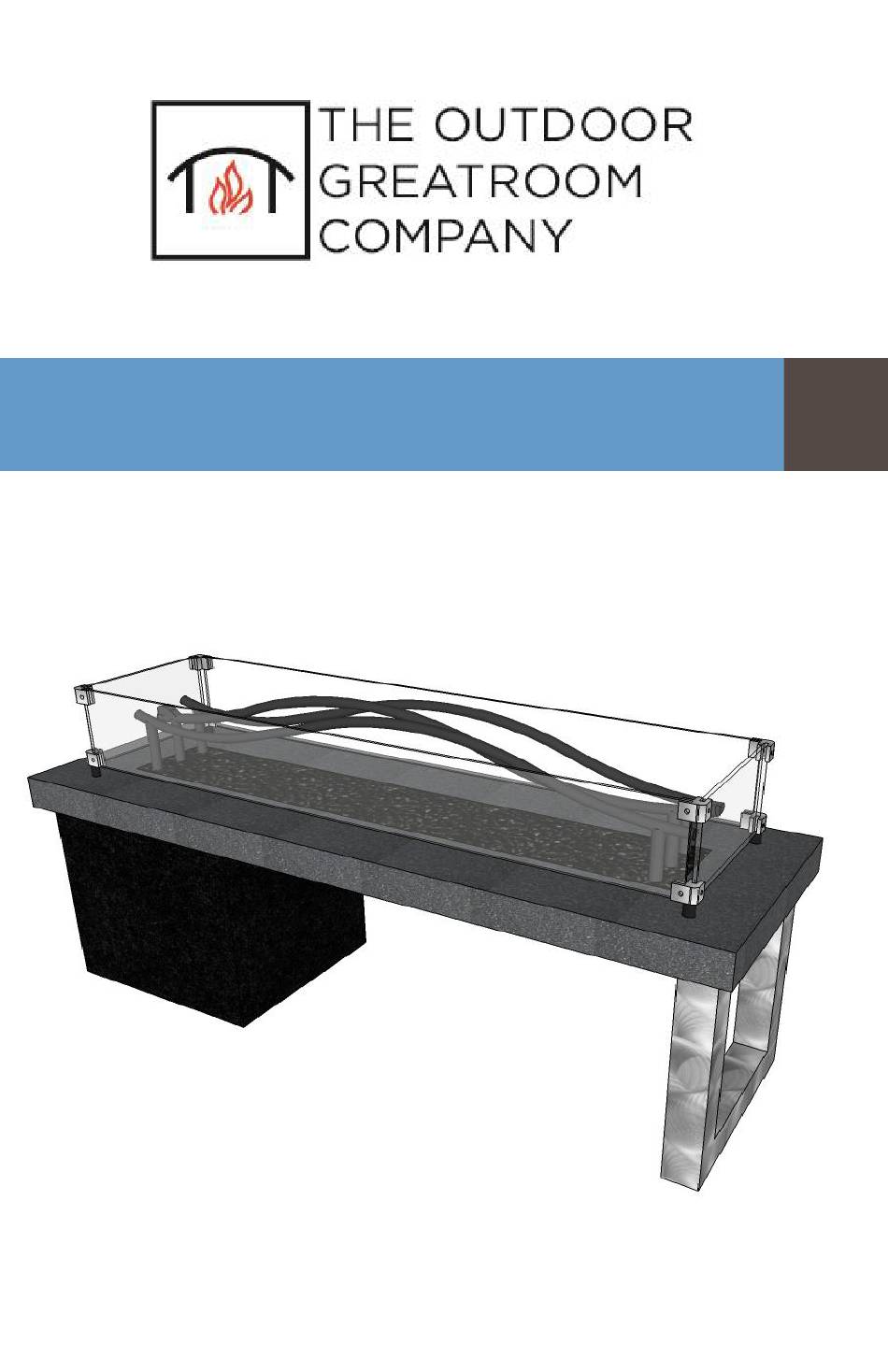

- Page 1 The Wave Installation Instructions for WV-56 Table...
-
Page 3: Table Of Contents
IMPORTANT Contents Please consult your Wave Burner instruction manual for detailed instructions and important information related to hooking up your Required Tools…………………………….…..2 burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. Included with your Fire Pit……………….3 DO NOT ATTEMPT TO INSTALL WV-56-BLK-DIY BURNER WITHOUT Assembly Instructions………………….………4... -
Page 4: Included With Your Fire Pit
Included with your Fire Pit Key for Key Valve Onyx CFG-O Media Glass Guard Kit (3 bags) (Components listed in Glass Guard Manual) -
Page 5: Assembly Instructions
Assembly Instructions Included with your Fire Pit Once your fire pit has arrived, begin to unpack the contents. A. 4 Fasteners 1. Remove individually the burner from the supercast top and the supercast B. 4 B-Bolts top from the base. Set both on a soft, flat surface. C. -
Page 6: Gas Connections
Gas Connections Read and understand your Wave Burner Owner’s Manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe dope on flare fittings. 1. Reach inside the base and attach gas supply line to the input shown below, using a 1/2”... - Page 7 Gas Connections (continued) 3. Set burner into the fire pit base exactly as shown below and make final gas connection to the Control Panel. Locate igniter at this end Metal flex line to burner ONLY 4. Attach the flex line from the burner TIGHTEN CONNECTION to the gas valve as shown above.
-
Page 8: Igniter Installation
Igniter Installation 1. Make sure the valve is in the OFF position before beginning. 2. Remove sparker cap by turning counter-clockwise and insert a AAA battery (not included). Reinstall sparker cap. Sparker will not operate correctly without an ignition and ground wire attached. -
Page 9: Glass Installation
Glass Installation 1. Scatter glass beads evenly onto burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT GLASS BEADS OR OTHER DECORATIVE MEDIA PRESENT 2. Glass guard is required for Wave burner. Install according to instructions supplied with included glass guard kit. - Page 10 IMPORTANT Please consult your Wave Burner instruction manual for detailed instructions and important information related to hooking up your burner, including safety information, proper tightening of connections with two wrenches, and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL WV-56-BLK-DIY BURNER WITHOUT FIRST CONSULTING THE WAVE BURNER OWNER’S MANUAL.
- Page 11 Please visit http://www.outdoorrooms.com/warranty-form/ to register your product. Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
