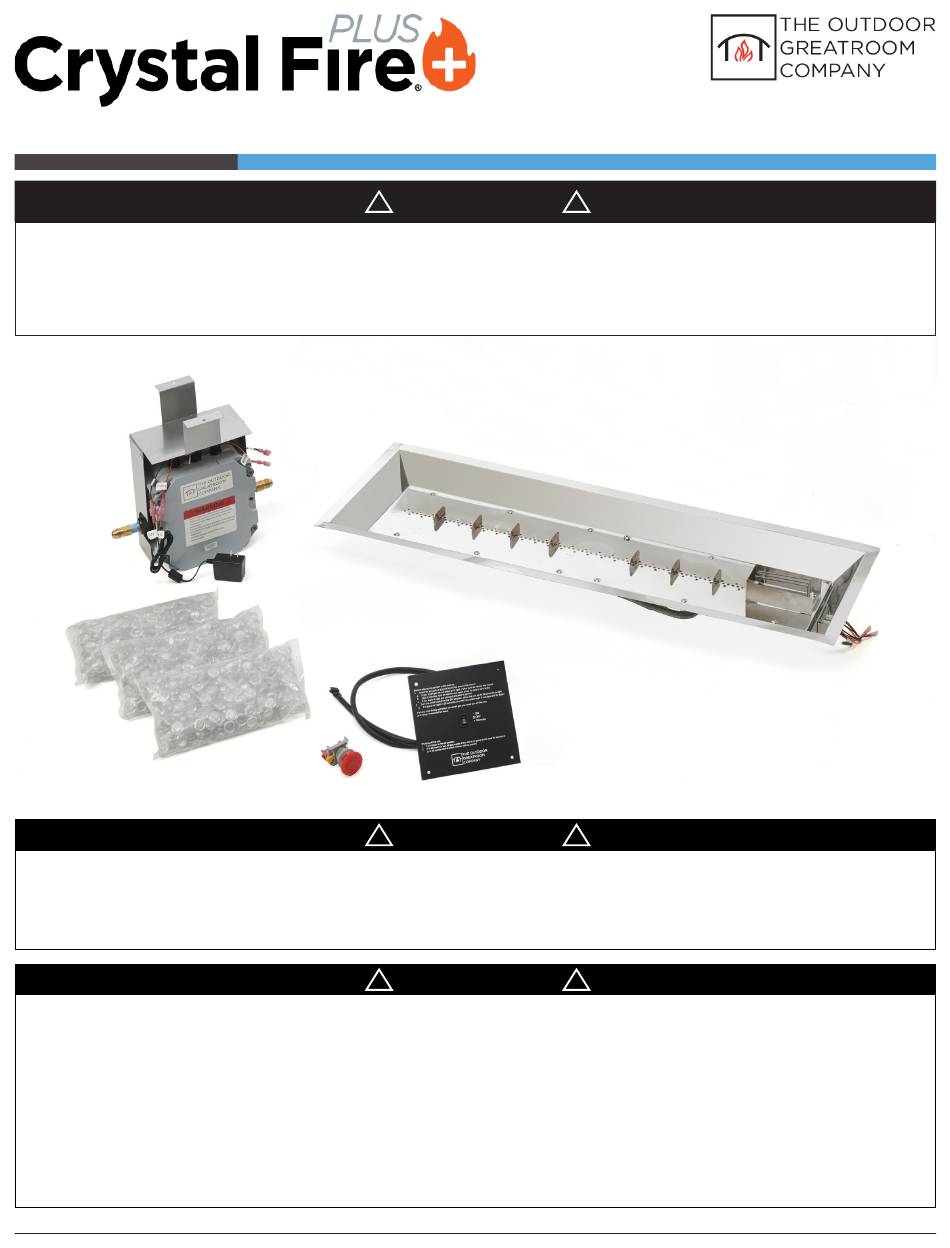

Supplemental Commercial Installation Instructions
User Manual for Commercial Burner Installations and Burner Plates
The information in this instruction manual is intended only as a supplement to the Crystal Fire Plus®
instruction manual and is not an exhaustive installation manual. If the information in both instruction
manuals is not followed exactly, a fire or explosion may result causing property damage, personal,
injury or loss of life.
Installation and service must be performed by a qualified installer, service agency,
The Outdoor GreatRoom Company
voided by, the following actions:
• Installation and use of any damaged components
• Modification of the burner assembly or included components
• Installation other than detailed in this manual
Any such action may result in a fire or explosion causing property damage, personal injury, or death.
WARNING
!
WARNING
!
FOR OUTDOOR USE ONLY.
or the gas supplier.
WARNING
!
, LLC disclaims any responsibility for, and the warranty will be
TM
www.outdoorrooms.com
!
!
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crystal Fire Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Outdoor GreatRoom Company Crystal Fire Plus

Summary of Contents for Outdoor GreatRoom Company Crystal Fire Plus

  • Page 1 User Manual for Commercial Burner Installations and Burner Plates WARNING The information in this instruction manual is intended only as a supplement to the Crystal Fire Plus® instruction manual and is not an exhaustive installation manual. If the information in both instruction manuals is not followed exactly, a fire or explosion may result causing property damage, personal, injury or loss of life.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Commercial Controls a. Controls on Appliance • 4HRTC - 4-Hour Timer Control Panel b. Controls Away from Appliance • CFP-ESO-CP - Emergency Stop • WSES-CP - ON/OFF Wall Switch and Emergency Stop • 4HRTES-CP - 4-Hour Timer and Emergency Stop Additional Information •...

  • Page 3: Commercial Controls

    COMMERCIAL CONTROLS A. CONTROLS ON APPLIANCE 4-HOUR TIMER CONTROL PANEL 4HRTC • Installed on the appliance. • Includes 36 in. wire lead that connects directly to CF-DSI. • Replaces the standard CF-DSI control switch. • Eliminates remote (CF-DSI-R) functionality. Operates low-voltage circuit. •...
  • Page 4 WIRING DIAGRAM - (4HRTC) SENSOR/IGNITER 4HRTC 3.3 VDC+ 110-120VAC SUPPLY FROM GFCI 3.3 VDC- RECEPTACLE CONTROL MODULE GAS CONTROL VALVE www.outdoorrooms.com 42511 REV B : 03-16-2021...

  • Page 5: Controls Away From Appliance

    B. CONTROLS AWAY FROM APPLIANCE EMERGENCY STOP CFP-ESO-CP Installed away from the appliance. • • Install on a wall or pillar in accordance with local electrical code. • Includes printed instruction cover plate. Mounts to single-gang junction box. • Immediately cuts high-voltage to the appliance •...
  • Page 6 WIRING DIAGRAM - (CFP-ESO-CP) SENSOR/IGNITER STANDARD CONTROL SWITCH (NORMALLY CLOSED) 3.3 VDC+ 110-120VAC SUPPLY FROM GFCI 3.3 VDC- RECEPTACLE CONTROL MODULE GAS CONTROL VALVE WARNING If any components were damaged during the incident that prompted the use of the emergency stop button, they must be replaced before the appliance is operated again.
  • Page 7 WSES-CP ON/OFF WALL SWITCH AND EMERGENCY STOP • Installed away from the appliance. • Only install on a wall within line-of-sight of the appliance in accordance with local electrical code. • Includes printed instruction cover plate. • Mounts to double-gang junction box •...
  • Page 8 WIRING DIAGRAM - (CFP-ESO-CP) SENSOR/IGNITER STANDARD CONTROL SWITCH WALL SWITCH (NORMALLY OPEN) 3.3 VDC+ (NORMALLY CLOSED) 110-120VAC 3.3 VDC- SUPPLY FROM GFCI RECEPTACLE CONTROL MODULE GAS CONTROL VALVE www.outdoorrooms.com 42511 REV B : 03-16-2021...

  • Page 9: 4Hrtes-Cp 4-Hour Timer And Emergency Stop

    4HRTES-CP 4-HOUR TIMER AND EMERGENCY STOP • Installed away from the appliance. • Only install on a wall within line-of-sight of the appliance in accordance with local electrical code. • Includes printed instruction cover plate. Mounts to double-gang junction box •...
  • Page 10 WIRING DIAGRAM - (4HRTES-CP) SENSOR/IGNITER STANDARD CONTROL SWITCH TIMER (NORMALLY OPEN) 3.3 VDC+ (NORMALLY CLOSED) 110-120VAC 3.3 VDC- SUPPLY FROM GFCI RECEPTACLE CONTROL MODULE GAS CONTROL VALVE www.outdoorrooms.com 42511 REV B : 03-16-2021...

  • Page 11: Additional Information

    C. ADDITIONAL CONTROL INFORMATION CF-DSI-SB SWITCH BYPASS • Installs on CF-DSI where low-voltage control switch would normally connect. • Removes manual switch and remote functionality from CF-DSI • Appliance is then controlled solely by the high-voltage. INSTALLATION DIAGRAM - (CF-DSI-SB) Connect CF-DSI-SB to female 5-pin connector on DSI.
  • Page 12 WIRING DIAGRAM - (CF-DSI-SB) SENSOR/IGNITER 3.3 VDC+ 110-120VAC SUPPLY FROM GFCI 3.3 VDC- RECEPTACLE CONTROL MODULE GAS CONTROL VALVE www.outdoorrooms.com 42511 REV B : 03-16-2021...

  • Page 13: Burner Plate Information

    BURNER PLATE INFORMATION A. SQUARE BURNER PLATES INSTALLATION GUIDELINES (VCSV) (DSI) BURNER PLATE MODEL MIN (IN.) MAX (IN.) MIN (IN.) MAX (IN.) MIN (IN.) MAX (IN.) BP24S 1.00 2.50 6.00 15.00 BP30S 1.00 5.50 6.00 15.00 BP36S 1.00 5.50 6.00 15.00 BP42S 1.00...
  • Page 14 INSTALLATION INSTRUCTIONS Ignition Wind Guard Ensure enclosure meets requirements detailed in Crystal Fire Plus installation manual. Position and if necessary secure burner plate to enclosure. Install top material or capstone. Burner insert can then be connected to gas and electrical according to the Crystal Fire Plus instruction manual and lowered into the burner plate.

  • Page 15: Round Burner Plates

    B. ROUND BURNER PLATES INSTALLATION GUIDELINES (VCSV) (DSI) BURNER PLATE MODEL MIN (IN.) MAX (IN.) MIN (IN.) MAX (IN.) MIN (IN.) MAX (IN.) BP20RD 1.00 2.50 6.00 15.00 BP24RD 1.00 4.50 6.00 15.00 BP30RD 1.00 2.50 6.00 15.00 BP36RD 1.00 5.50 6.00 15.00...
  • Page 16 INSTALLATION INSTRUCTIONS Ignition Wind Guard Ensure enclosure meets requirements detailed in Crystal Fire Plus installation manual. Position and if necessary secure burner plate to enclosure. Install top material or capstone. Burner insert can then be connected to gas and electrical according to the Crystal Fire Plus instruction manual and lowered into the burner plate.

  • Page 17: Linear Burner Plates

    C. LINEAR BURNER PLATES INSTALLATION GUIDELINES (VCSV) (DSI) WIDTH OF BURNER PLATE (IN.) MIN (IN.) MAX (IN.) MIN (IN.) MAX (IN.) MIN (IN.) MAX (IN.) MIN (IN.) MAX (IN.) 1.50 3.00 15.00 13.00 2.25 3.00 15.00 13.00 3.50 3.00 15.00 13.00 42511 REV B : 03-16-2021 www.outdoorrooms.com...
  • Page 18 INSTALLATION INSTRUCTIONS Ensure enclosure meets requirements detailed in Crystal Fire Plus installation manual. For burner plates longer than 64 in., the two halves of the burner insert and burner plate must be secured together with included mending brackets and hardware.
