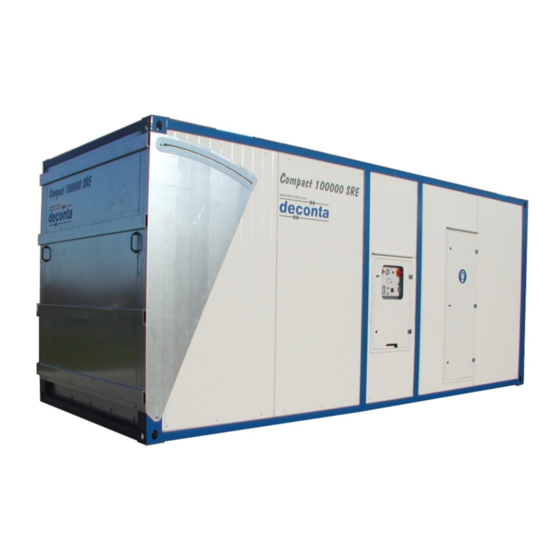

- Page 1 Instruction manual Negative pressure unit Compact 100.000 Manufacturer: deconta GmbH Im Geer 20, 46419 Isselburg Description / Type No.: NPU Compact 100.000 Type 389 Serial-No.: ....
- Page 2 In case of damages (mechanical or electric) or in a breakdown, deconta can help you in a short term with his express service.
-
Page 3: Table Of Contents
Instruction manual Negative Pressure Unit Compact 100.000 Table of contents on page Introduction Safety Basic safety advice Transport and storage Transport Storage Scope of delivery for purchase and rent Scope of delivery Return delivery after renting Technical description Intended use... -
Page 4: Introduction
Instruction manual Negative Pressure Unit Compact 100.000 1 Introduction These manual instructions facilitate it to become acquainted with the Compact 100.000 and to use it in his intended uses. The instructions contain important information about the device to operate safely, properly and economically. -
Page 5: Safety
In order not to impair safety, changes to the equipment are not allowed. Changes may be implemented only after consultation with deconta. -
Page 6: Transport And Storage
Instruction manual Negative Pressure Unit Compact 100.000 3 Transport and storage 3.1 Transport To unload a crane is required with a Minimum load of 4.5 tons. The unloading place should be firm and flat. Transport damages have to be documented at once during the handing over of the carrier or another supplier. -
Page 7: Technical Description
5 Technical description 5.1 Intended use The negative pressure unit Compact 100.000 serves for the filtration of non-condensing asbestos contaminated air, in temperature rage up +45 °C, with external exhaust for the air. During asbestos sanitation works within closed rooms, you must avoid that asbestos fibres leave the sanitation area and in this way endanger humans and the environment. -
Page 8: Filter Description
Instruction manual Negative Pressure Unit Compact 100.000 5.4 Filter description / Classification A 3-stage filter combination is integrated in the device 5.4.1 Prefilter: Filter class pursuant DIN 24185 / EN G3 / EU3 Frame Cardboard Frame, 47 mm width Filter medium... -
Page 9: Main Filter
Instruction manual Negative Pressure Unit Compact 100.000 5.4.3 Main filter: 12-ply glued wooden frame Frame or plastic frame (humidity proof) Separator Aluminium Filter medium Glass fiber Sealing mass Polyurethane (2-components glue) Seal Polyurethane, foamed Filter surface 31 m² „S“ according to DIN 24184, H13 according to... -
Page 10: Change Of Filter
Instruction manual Negative Pressure Unit Compact 100.000 5.5 Information about the filter change The frequency of the change of filter depends on the degree of pollution of the filter. If the clogging of the filter increases (contamination of the filter), the air capacity decreases. -
Page 11: Technical Data
Instruction manual Negative Pressure Unit Compact 100.000 6 Technical data All data on air performance and volume flows are taking into account a measuring tolerance of ± 15% based on the measuring range end value, determined in a multi-point measuring method with a calibrated vane anemometer. -
Page 12: Performance Data
Instruction manual Negative Pressure Unit Compact 100.000 6.2 Power data Air power with filters 100000 m³/h Power connection 2 x 400 Volt, 50 Hz Current consumption 2 x 42 Ampere Thanks to the use of frequency converters, the power peaks are avoided (Soft start, max. -
Page 13: Installation Instructions
Instruction manual Negative Pressure Unit Compact 100.000 7 Installation instructions This NPU is delivered ex factory in a ready-to-use condition and is intended for immediate operation. Do not operate the unit if it is visibly damaged. In that case, please inform deconta GmbH immediately. -
Page 14: Initial Operation
Instruction manual Negative Pressure Unit Compact 100.000 8 Operation IMPORTANT: During the operation, always close the maintenance side doors! SRE control The NPU Compact 100,000 is supplied as standard with two engines: two engines with electronic control for a control range of each 0-50.000 m³ / h The SRE control developed for the NPU has the principal task to measure out and settle, from the machine, the required vacuum in the removal of asbestos. - Page 15 Instruction manual Negative Pressure Unit Compact 100.000 Starting position: Connect to power Choose a measuring point in the dirty area and connect the PE-tube 8 x 1 to the negative pressure connection Choose the measuring point in the clean area (adjoining room) and connect the PE-...
-
Page 16: Maintenance
Instruction manual Negative Pressure Unit Compact 100.000 Manual - operation Select the mode MANU with the key AUTO / MANU, LED MANU lights In manual operation the power of the ventilator is given with the keys - and + in steps of one percent. -
Page 17: Filter Change
Instruction manual Negative Pressure Unit Compact 100.000 9.3 Change of filter Attention: Contaminated filters have to be changed under all corresponding safety measures Filter change only when maschine is switched off Use only authorised filters Do not use bonding agents on the machine Prefilter change: ... -
Page 18: Specifications
Instruction manual Negative Pressure Unit Compact 100.000 10 Tender text Negative pressure unit as a container plant with an effective capacity of 100,000 m³ / h, HEPA air filter with protection grid and test certificate pursuant DIN 24184, Class S, two pre-filter steps, consisting of pre-filter and bag filter, filter monitoring, automatic negative pressure system and starting current limitation by "soft start“. -
Page 19: Circuit Diagram
Instruction manual Negative Pressure Unit Compact 100.000 11 Circuit diagram Page 19... - Page 20 Instruction manual Negative Pressure Unit Compact 100.000 Page 20...
-
Page 21: Option 1 Silencer
Instruction manual Negative Pressure Unit Compact 100.000 12 Option 1 Silencer for the negative pressure unit The SNAP - muffler can be installed onto the negative pressure unit, which reduces the noise level. This can be upgraded at any time ... - Page 22 Instruction manual Negative Pressure Unit Compact 100.000 Centering aid Exaust air damper Crane eyelet Transport lid claws Page 22...
-
Page 23: Measurement Of Sound Volume
Instruction manual Negative Pressure Unit Compact 100.000 12.1 Sound level measuring Value in dB(A) Status: Engine power 100%, free-blowing, outside Page 23... -
Page 24: Option 2 Remote De-Energisation
Instruction manual Negative Pressure Unit Compact 100.000 13. Option 2 Remote shutdown 1. Device without remote shutdown At plugged-in adapter plug (located at the chain) in the right socket, the device works without remote shutdown 2. Device with remote shutdown ... -
Page 25: Declaration Of Conformity
Instruction manual Negative Pressure Unit Compact 100.000 14 Declaration of conformity EU Declaration of Conformity deconta GmbH Im Geer 20 D-46419 Isselburg Product: Negative pressure unit Type: 30, 50, 40, 54, 312, 313, 314, 51, 38, 55, 49, 23 67, 305, 329, 330, 383, 389, E107, E108, E110...
