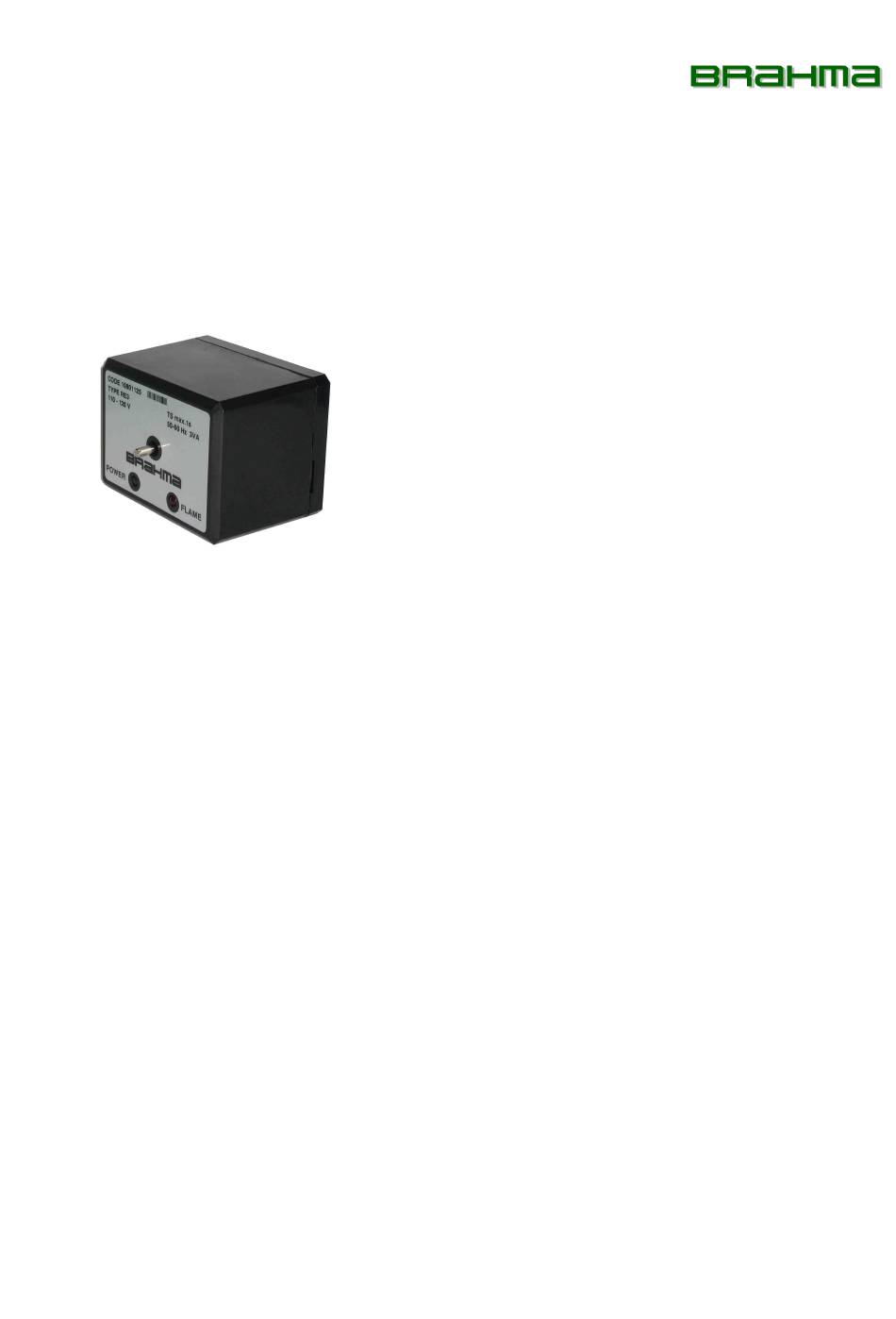

FLAME DETECTOR FOR
GAS
TYPE RE3
4071_r06
DESCRIPTION
The RE3 control is suitable to verify the presence of flame
on gas burners. In fact it can use either a UV phototube or
an electrode to exploit the flame rectification effect
(ionization).
FEATURES
− in accordance with EN 60730;
− electrical service life at max. declared loading >
250.000 operations;
− compact and easy installation;
− connecting socket with screws or fast-on terminals
(types A, B, N and T);
− signalization with LEDs of different colour: green
(POWER) and red (FLAME).
MAIN APPLICATIONS
The RE3 flame detector is mainly used for industrial
applications and for the installation of semiautomatic
ignition and control systems, when it is necessary to control
simultaneously and sequentially several burners.
The presence of LEDs to signalise the operation also
permits the use of RE3 control simply as flame detector.
OPERATION

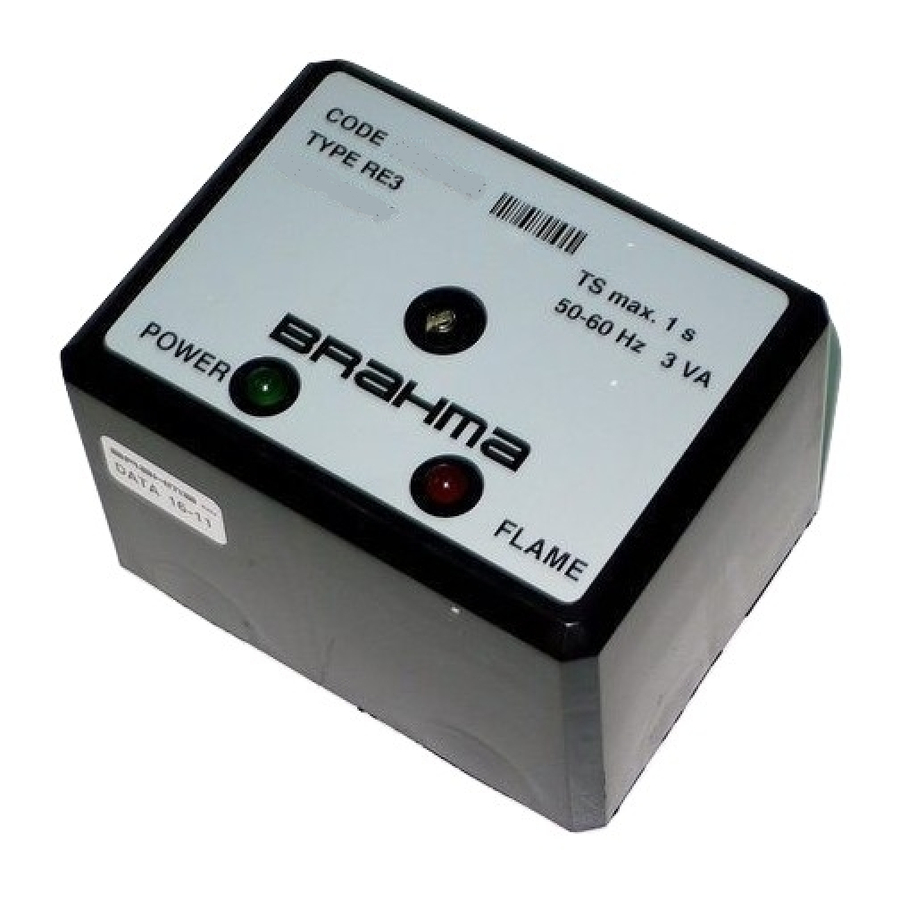

Supply is signalled by the turning on of the green coloured
LED (POWER) fitted on the front of the plastic enclosure. A
second LED, red coloured, placed next to the first one,
turns on when the flame detection has occurred. This event
corresponds to the switching on of the independent
contacts available in output.
1/4
Advertisement
Table of Contents
Related Manuals for BRAHMA RE3
Summary of Contents for BRAHMA RE3
- Page 1 FLAME DETECTOR FOR TYPE RE3 DESCRIPTION The RE3 control is suitable to verify the presence of flame on gas burners. In fact it can use either a UV phototube or an electrode to exploit the flame rectification effect (ionization). FEATURES −...
- Page 2 OVERALL DIMENSIONS Fig.2 Fig.3 Socket A B (code 18210130) Socket T As regards the phototube life, we suggest to replace it after 10.000 hours to avoid the danger of a “flame on” signal also after the flame has been extinguished, which is likely to happen when the tube gets too old.
- Page 3 MADE IN ITALY Fig.8 represents two connection diagrams for using the Fig.5 RE3 flame detector with the control box for automatic gas CHECKING AT START burners, model CM391 belonging to the EUROBOX series Always check the control before the first start and also after (see the relevant leaflet).
- Page 4 CM391 and RE3, the turning off of one burner waste. causes also the immediate turning off of the other one. ATTENTION-> Company Brahma S.p.A. declines any responsibility for any damage resulting from the Customer's interfering with the device. BRAHMA S.p.A. Via del Pontiere, 31 37045 Legnago (VR) Tel.
