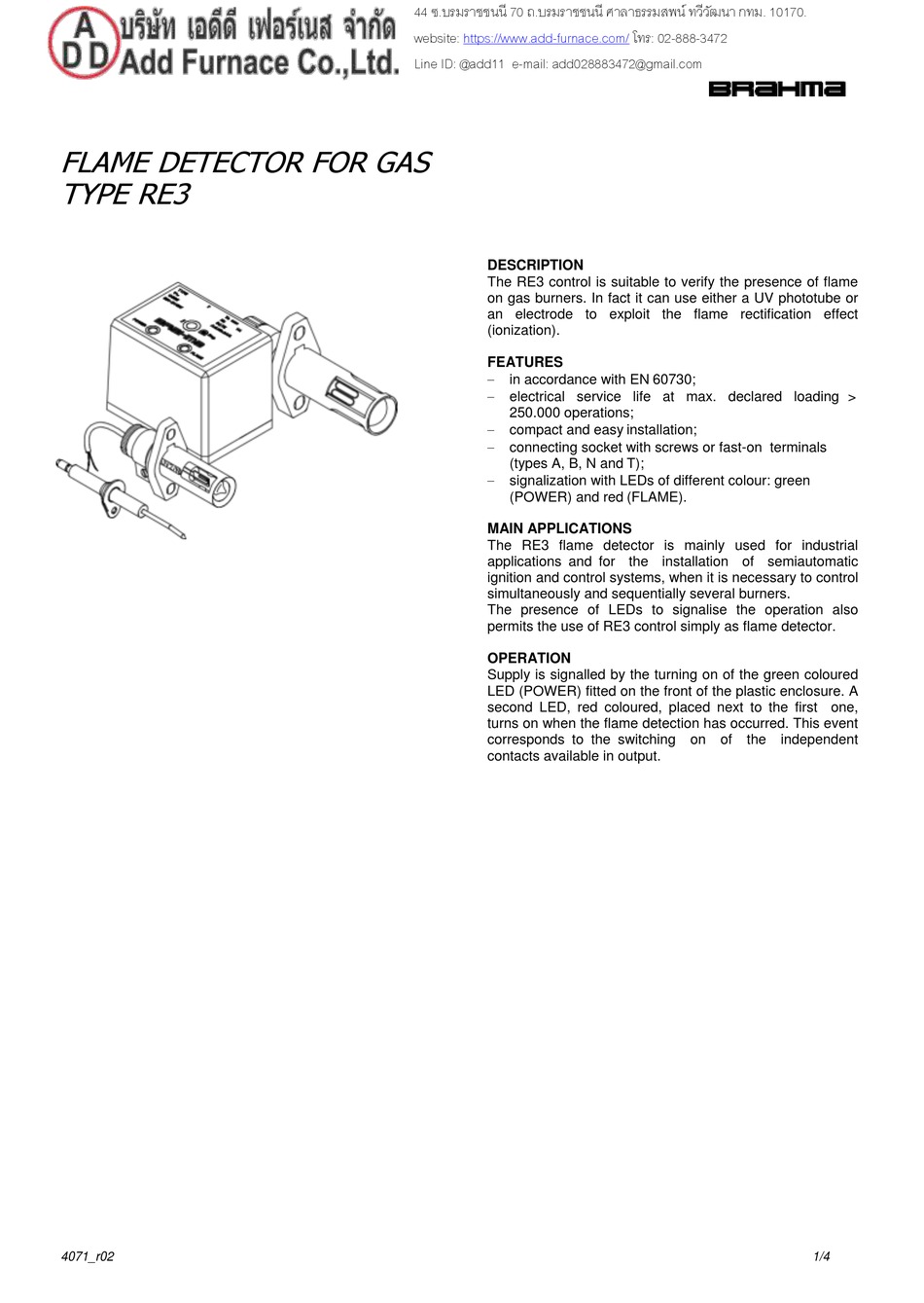

FLAME DETECTOR FOR GAS
TYPE RE3
4071_r02
44 ซ.บรมราชชนนี 70 ถ.บรมราชชนนี ศาลาธรรมสพน์ ทวี ว ั ฒ นา กทม. 10170.
website:
https://www.add-furnace.com/
Line ID: @add11 e-mail: add028883472@gmail.com
DESCRIPTION
The RE3 control is suitable to verify the presence of flame
on gas burners. In fact it can use either a UV phototube or
an electrode to exploit the flame rectification effect
(ionization).
FEATURES
in accordance with EN 60730;
electrical service life at max. declared loading >
250.000 operations;
compact and easy installation;
connecting socket with screws or fast-on terminals
(types A, B, N and T);
signalization with LEDs of different colour: green
(POWER) and red (FLAME).
MAIN APPLICATIONS
The RE3 flame detector is mainly used for industrial
applications and for the installation of semiautomatic
ignition and control systems, when it is necessary to control
simultaneously and sequentially several burners.

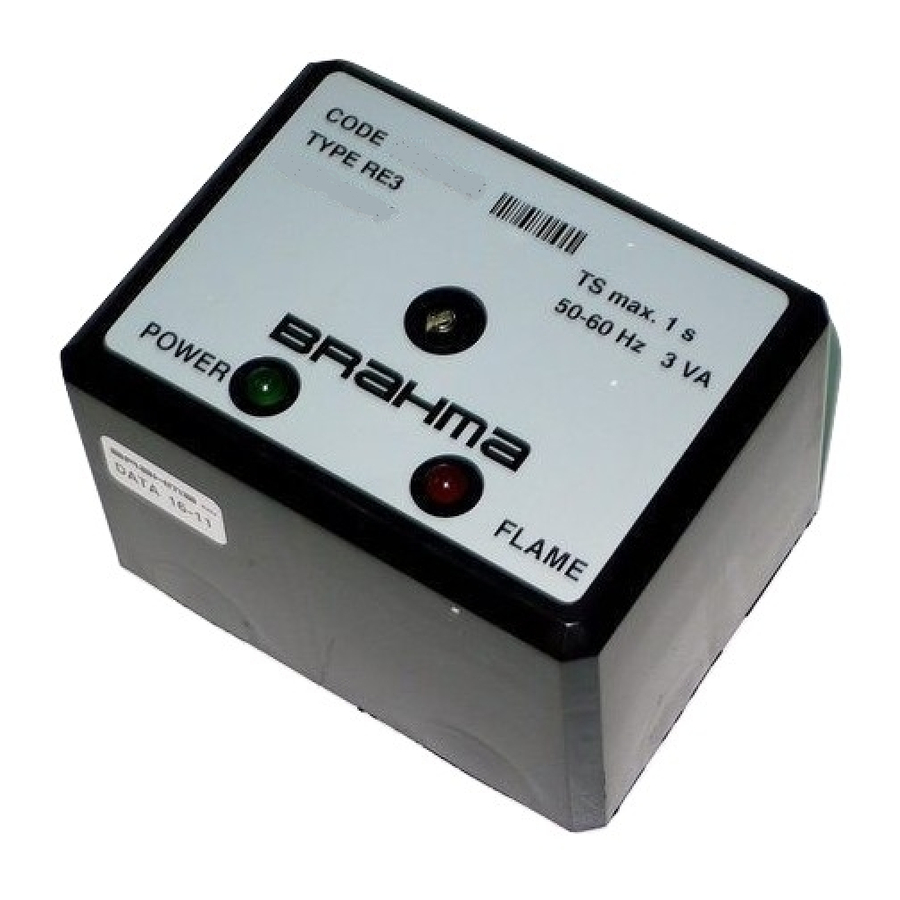

The presence of LEDs to signalise the operation also
permits the use of RE3 control simply as flame detector.
OPERATION
Supply is signalled by the turning on of the green coloured
LED (POWER) fitted on the front of the plastic enclosure. A
second LED, red coloured, placed next to the first one,
turns on when the flame detection has occurred. This event
corresponds to the switching on of the independent
contacts available in output.
โทร: 02-888-3472
1/4
Advertisement
Related Manuals for BRAHMA RE3
Summary of Contents for BRAHMA RE3
- Page 1 FLAME DETECTOR FOR GAS TYPE RE3 DESCRIPTION The RE3 control is suitable to verify the presence of flame on gas burners. In fact it can use either a UV phototube or an electrode to exploit the flame rectification effect (ionization).
- Page 2 44 ซ.บรมราชชนนี 70 ถ.บรมราชชนนี ศาลาธรรมสพน์ ทวี ว ั ฒ นา กทม. 10170. website: https://www.add-furnace.com/ โทร: 02-888-3472 Line ID: @add11 e-mail: add028883472@gmail.com OVERALL DIMENSIONS Fig.2 (*) It depends on the socket type: 59.5 socket A 63.5 socket B 62.8 socket N and T Fig.3 socket A and B socket T...
- Page 3 In the same picture is also represented a duty example of the second available contact, to detect the flame in distance. BRAHMA TYPE RE3 Fig.8 represents two connection diagrams for using the RE3 flame MADE IN ITALY detector with the control box for automatic gas burners, model Fig.5...
- Page 4 1 and, as the flame detection is cross - checked between CM391 and RE3, the turning off of one burner causes also the immediate turning off of the other one. ATTENTION-> Company Brahma S.p.A. declines any responsibility for any damage resulting from the Customer's interfering with the device. 4071_r02...
