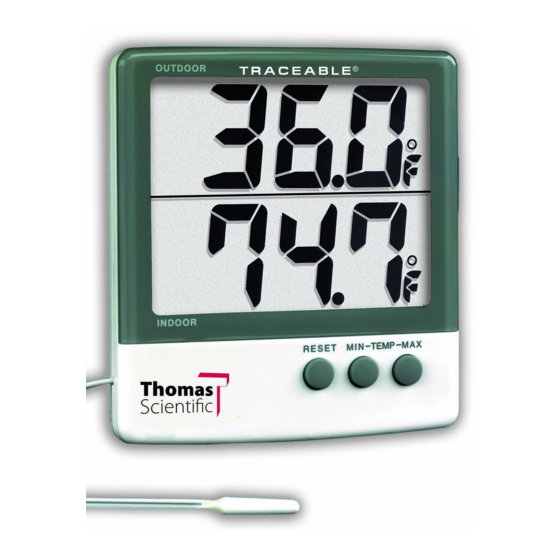

Traceable 4126 Instructions

SPECIFICATIONS

Display: 1⅛ inch (2.86 cm) LCD
Range— Ambient: 23.0 to 122.0 °F (–5.0 to 50.0 °C)
Probe: –58.0 to 158.0 °F (–50.0 to 70.0 °C)
Resolution: 0.1°
Accuracy: ±1°
Sampling Time: 10 seconds
Power: 1 AAA Alkaline Battery
Case: ABS Plastic
Size: 2¾ x 4¼ x ⅝ inches
Accessories: sensor bracket, Velcro™, stand,
battery, Traceable Certificate,
®
instructions.

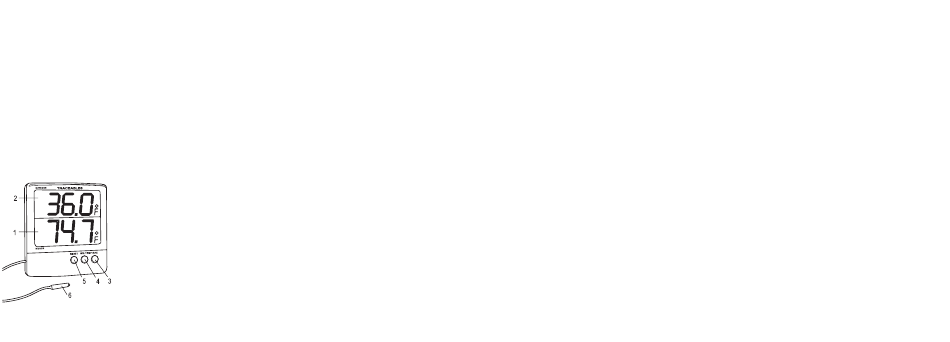

FIGURE 1: DESCRIPTION
1. Ambient Display
2. Probe Display
3. Maximum (MAX)
Temperature Button
4. Minimum (MIN)
Temperature Button
5. RESET Button
6. Probe
NOT SHOWN
°C/°F Switch on back
of unit

OPERATION

1. Turn the thermometer on by inserting the battery. To
insert the battery, slide the Battery door located on the
back in the direction of the arrow. Insert the battery as
directed by the polarity symbols (+ and -). Replace the
Battery Door.
2. The external probe may be used to monitor tempera-
tures in air/gas, liquids, and semi-solids. Both the
probe and cable may be totally immersed in water.
3. Select Fahrenheit (°F) or Celsius (°C) by sliding the
switch on the back of the unit to the desired setting.
4. Press the RESET button. All segments will be
displayed for 3 seconds then the unit will display the
current °F or °C temperature.

MEMORY

1. Press the MIN or MAX button once to recall both the
ambient and probe minimum/maximum temperature.
"MIN" or "MAX" will appear on the display.
2. Press the MIN or MAX button once again to return to
the current temperature display. "MIN" or "MAX" will
no longer appear on the display.
3. With "MIN" or "MAX" on the display, press the RESET
button to reset either the minimum and maximum
temperatures. All segments will be displayed for 3
seconds and the minimum or maximum temperatures
will be set to the current temperature.

DISPLAY MESSAGES

HHH (Flashing)— Indicates that the temperature being
measured is above the range of the
unit.
LLL (Flashing)— Indicates that the temperature being
measured is below the range of the
unit.

MOUNTING

A wire holder is provided with the external probe for
permanent mounting. To mount the probe, place a screw
or nail through the hole of the wire holder and secure the
holder to the wall. The unit is provided with a receptacle
for wall mounting. Set a screw into the wall at the location
desired. The head of the screw will need to slip into the
receptacle on the back of the unit. Do not set the screw
flush to the wall. Once the screw has been set properly,
hang the unit in place by sliding the receptacle on the
back of the unit over the head of the screw. The unit may
also be mounted by using the Velcro supplied.
™

BENCH STAND

The unit is supplied with a bench stand that is a part
of the case. To use the bench stand, locate the small
rectangular opening on either side of the battery cover.
Place your finger nail into the opening and flip the stand
up. To close the stand, simple snap it shut.

BATTERY REPLACEMENT

Erratic readings, a faint display, or no display are all
indicators that the battery is low and must be replaced.
To replace the battery, slide Battery Door located on the
back in the direction of the arrow. Insert a new 1.5V AAA
alkaline battery, NOT a regular or heavy duty battery,
as directed by the polarity symbols (+ and -). Incorrectly
installed batteries may damage electronics. Replace the
Battery Door.

ALL OPERATIONAL DIFFICULTIES

If this thermometer does not function properly for any
reason, please replace the battery with a new high
quality battery (see "Battery Replacement" section). Low
battery power can occasionally cause any number of "ap-
parent" operational difficulties. Replacing the battery with
a new fresh battery will solve most difficulties.
