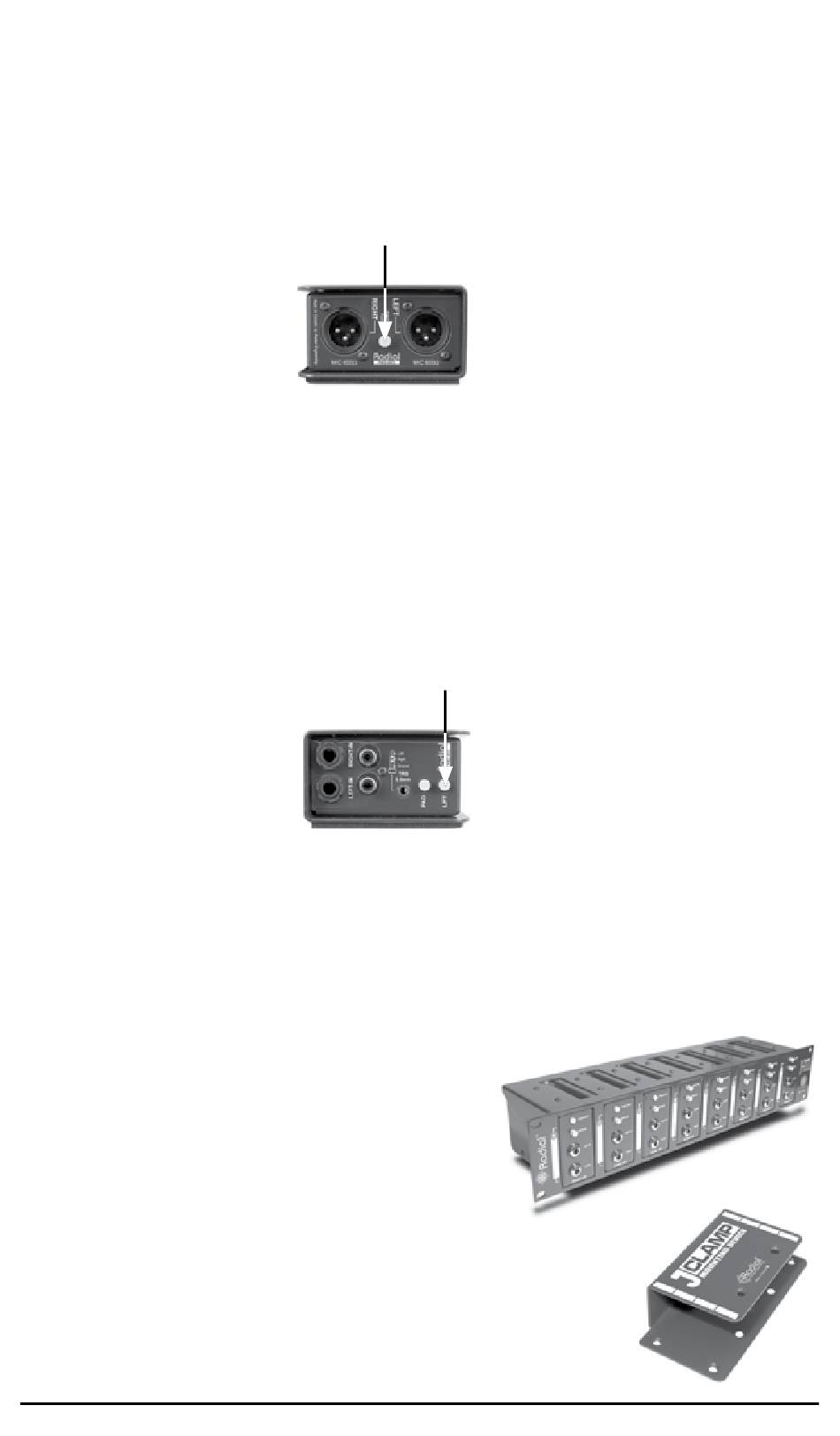

GROUNDING OPTIONS

To make grounding as fl exible as possible and eliminate noise caused by
ground loops, the ProAV2 features two ground lift functions. The fi rst, labeled
GROUND, is located on the output panel with the XLR connectors. It is a
global ground lift intended for stereo applications and will disconnect pin-1 on
both XLR outputs.
The second ground lift is simply labeled LIFT and is located on the input panel.
This switch allows the right channel ground to be lifted separately from the left
channel and is intended for dual mono applications where one source device
needs a ground path through the ProAV2 while the other may not. Note that the
GROUND switch supersedes the LIFT switch and disconnects the ground path
for both channels regardless of the position of the LIFT switch.

XLR OUTPUT

Each ProAV2 channel outputs a balanced, 600 Ohm, mic-level signal that is
compatible with microphone snakes and mixing console preamps. The output
can drive long cables without appreciable noise or signal loss.

OPTIONAL J-RAK

The optional J-RAK is a high density 2RU
rack shelf for Radial DI's and splitters that
allows up to 8 Radial devices to mount in one
neat 19" package. Ideal for studio or touring.
Constructed of 14 gauge steel with a baked
enamel fi nish.

OPTIONAL J-CLAMP

The optional J-CLAMP can mount a single
Radial device to virtually any surface. Perfect
for hiding away inside racks, on podiums or
under tables.
Radial Engineering Ltd.
GROUND
disconnects pin-1 on both XLRs
disconnects right channel ground
LIFT
