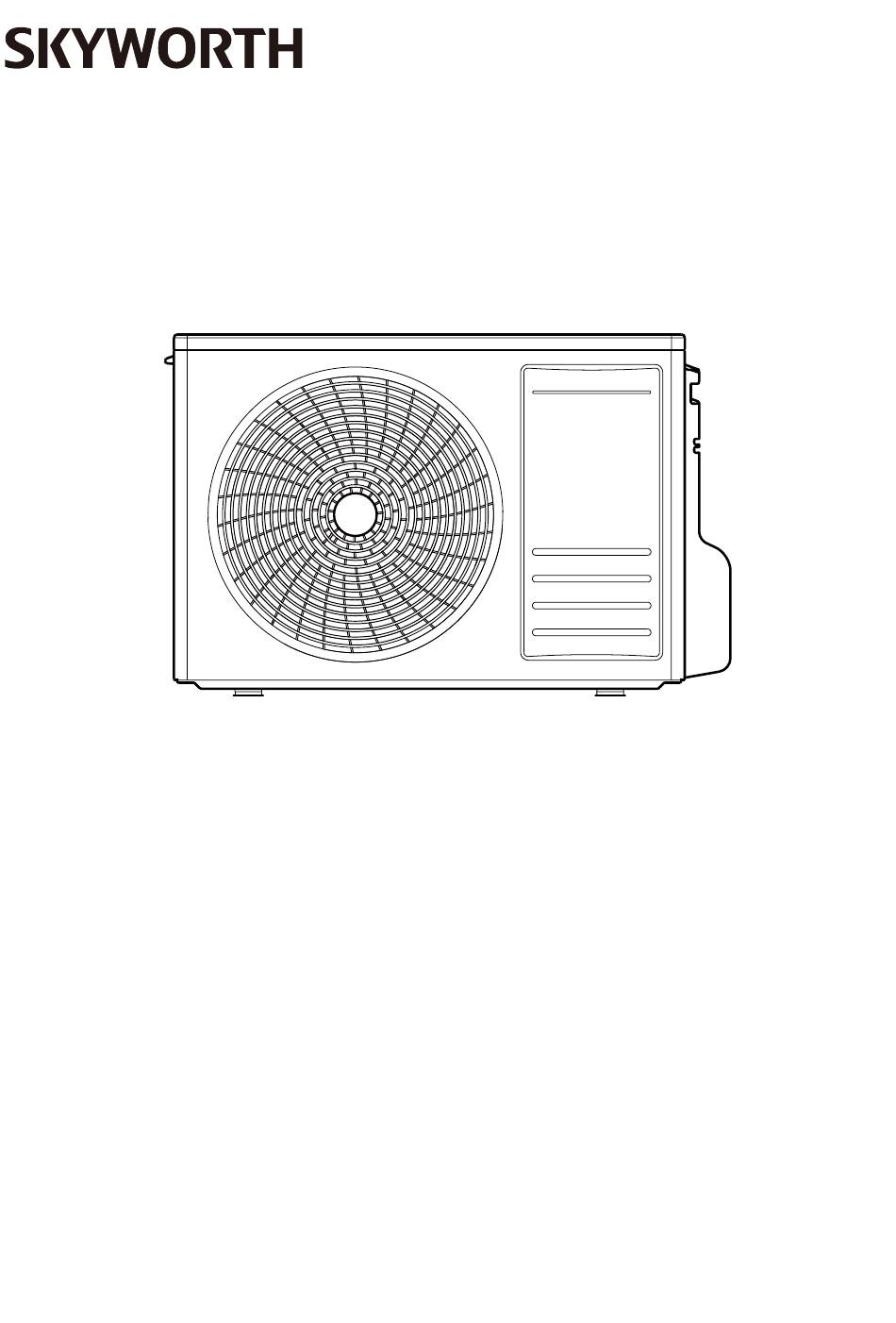

Page 1
SAVH60A-E1NA(O) Thank you for choosing our product. For proper operation, please read and keep this manual carefully. If you have lost the User's Manual, please contact the local agent or visit www.skyworth-ac.com or sent email to swac@skyworth.com for electronic version.
Content Safety Precautions..................1 Outline of the Unit and Main Parts..............3 Preparative for Installation................5 Selection of the Installation Location............5 Connection Pipe Requirement..............6 Electrical Requirement.................7 Installation of the Unit..................8 Installation of the Outdoor Unit..............8 Installation of the Connection Pipe............10 Vacuum and Gas Leakage Inspection............12 Electrical Wiring..................14 Test Running....................17 Trial Operation and Testing................17...
Safety Precautions This mark indicates procedures which, if improperly performed, WARNING! might lead to the death or serious injury of the user. This mark indicates procedures which, if improperly performed, CAUTION! might possibly result in personal harm to the user, or damage to property.
Page 4
Safety Precautions During the pump-down operation, make sure that the compressor is turned off before you remove the refrigerant piping. Do not remove the connection pipe while the compressor is in operation with 2-way or 3-way valve open. This may cause abnormal pressure in the refrigerant cycle that leads to breakage and even injury.
Outline of the Unit and Main Parts Standard Accessory Parts Table 1 Drainage To connect with the hard PVC Connecter drain pipe Outdoor Unit Drain Plug To plug the unused drain hole Other Instructions Outdoor unit(12K-42K) Air inlet Air inlet Handle Air outlet NOTE...
Page 6
Outline of the Unit and Main Parts Outdoor unit(48K-60K) Air inlet Air inlet Front Grill Front Side Plate Air outlet Handle Air outlet Valve cover NOTE: Actual product may be different from above graphics,please refer to actual products.
Preparative for Installation Selection of the Installation Location WARNING! The unit must be installed where strong enough to withstand the weight of the unit and fixed securely, otherwise the unit would topple or fall off. CAUTION! ● Do not install where there is a danger of combustible gas leakage. ●...
Preparative for Installation Connection Pipe Requirement CAUTION! The maximum length of the connection pipe is listed in the table below. Do not place the units between which the distance exceeds the maximum length of the connection pipe. Table 2 Size of Fitting Pipe Max.height Difference between Max.Pipe Length (Inch)
Preparative for Installation Electrical Requirement Electric Wire Size and Fuse Capacity. Table 3 Minimum Minimum Capability of Sectional Area of Sectional Area of Model Power Supply Air Switch(A) Power Cable and Power Cable and Earth line (mm Earth line (mm SAVH12A-A1NA(O) SAVH18A-A1NA(O) 220-240V~,50Hz...
Installation of the Unit Installation of the Outdoor Unit WARNING! ● Install the unit where it will not be tilted by more than 5°. ● During installation, if the outdoor unit has to be exposed to strong wind, it must be fixed securely.
Page 11
Installation of the Unit Fig.3 Table 5 Units: mm Item Model SAVH48A-E1NA(O) 1020 1350 SAVH60A-E1NA(O) 1020 1350 2. Condensate Drainage of the Outdoor Unit(Only for the heat pump unit) (1). It is required to install a drain pipe for the outdoor unit to drain out the condensate water during heating operation.
Installation of the Unit Installation of the Connection Pipe 1. Flare Processing (1). Cut the connection pipe with the pipe cutter and remove the burrs. (2). Hold the pipe downward to prevent cuttings from entering the pipe. (3). Remove the flare nuts at the stop valve of the outdoor unit and inside the accessory bag of the indoor unit, then insert them to the connection pipe, after that, flare the connection pipe with a flaring tool.
Page 13
Installation of the Unit 3. Connecting the Pipe at the Indoor Unit Side Detach the caps and plugs from the pipes. CAUTION! ● Be sure to apply the pipe against the port on the indoor unit correctly. If the centering is improper, the flare nut cannot be tightened smoothly.
Installation of the Unit 7. Liquid Pipe and Drain Pipe Sealed If the outdoor unit is installed lower than the indoor unit (See Fig.9 Saddle (1). A drain pipe should be above ground and the end of the pipe does not dip into water. All pipes must be restrained to the wall by saddles.
Page 15
Installation of the Unit (6). Wait for some time to see if the system pressure can remain unchanged, 3 minutes for the units less than 18K, 5 minutes for the 18K~24K units,10 minutes for the 36/42/48/60K units. During this time, the reading of the pressure gauge at the low pressure side can not be larger than 0.005Mp (0.38cmHg).
Installation of the Unit When the height difference between the indoor unit and outdoor unit is larger than 10 meters, an oil bend should be employed for every 6 meters. Outdoor Oil bend Fig.12 Indoor Oil bend Electrical Wiring 1. Wiring Precautions WARNING! ●...
Page 17
Installation of the Unit 2. Electrical Wiring (1). For solid core wiring (Fig.13) 1). Cut the wire end with a wire cutter or wire-cutting pliers, then strip the insulation about 25mm (15/16") . 2). Using a screwdriver, remove the terminal screw(s) on the terminal board. 3).
Page 18
Installation of the Unit CAUTION! ● Before starting work, check that power is not being supplied to the indoor unit and outdoor unit. ● Match the terminal block numbers and connection cord colors with those of the indoor unit side. ●...
Test Running Trial Operation and Testing The meaning of error codes as shown below: Table 8 Error Code Name Filter filth blockage alert High exhaust temp. protection Overcapacity protection Compressor overload protection System high pressure protection System low pressure protection Lack refrigerant/valve stop protection Jumper malfunction No feedback signal of indoor unit fan...
Test Running Working Temperature Range Table 9 The unit may not work properly temperature range Outdoor side temperature: Outdoor side temperature: above 43°C or below 15°C above 24°C or below -15°C Cooling Heating operation operation Indoor side temperature: Indoor side temperature: below 21°C above 27°C Note:...
Troubleshooting and Maintenance Troubleshooting If your air-conditioning unit suffers from abnormal operation or failure, please first check the following points before repair: Table 10 Failure Possible Reasons 1. The power supply is not connected. 2. Electrical leakage of air-conditioning unit The unit cannot be started.
Troubleshooting and Maintenance Routine Maintenance Only a qualified service person is allowed to perform maintenance. Before accessing to terminal devices, all power supply circuits must be disconnected. Do not use water or air of 50°C or higher for cleaning air filters and outside panels. Note: 1.
Page 23
SHENZHEN SKYWORTH AIR CONDITIONING TECHNOLOGY CO.,LTD NO.12 GAOKE AVENUE BAOLONG INDUSTRIAL CITY LONGGANG DISTRICT SHENZHEN GUANGDONG CHINA. Web: www.skyworth-ac.com E-mail: swac@skyworth.com K52420057 Tel: (+86-755)26743958...
