IQBoard IQAio Sync Solution Quick Manual

IQAio Sync Solution
—Quick Guide—

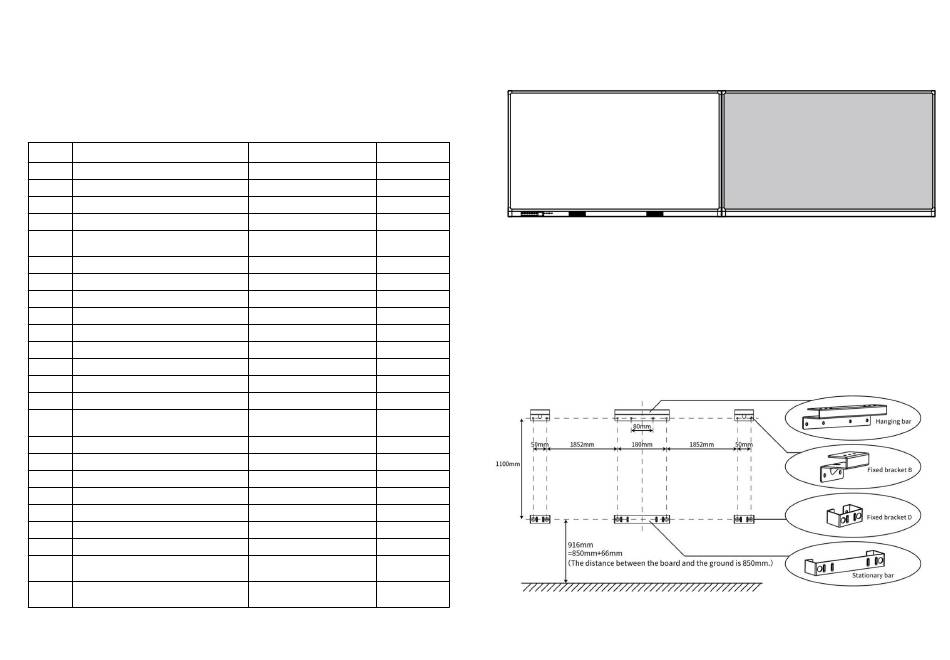

1. Packing List

No. Name
1 IQAio
2 Green board
3 RFID card
4 Colorless pen
5 Expansion bolts (self-tapping screws
and expansion rubber included)
6 Round head screw with gasket
7 Round head screw with gasket
8 Fixed bracket B
9 Fixed bracket D
10 Hanging bar
11 Stationary bar
12 Power adapter
13 Power cord
14 Printer cable (A B Type USB cable)
15 DB9 female head cable
16 DB9 male to male switch head
17 Quick guide
18 Warranty card
19 Certificate
20 Whiteboard pen
21 Eraser (optional)
22 Telescopic pointer (optional)
23 Wireless MIC (optional)
24 Wireless keyboard & mouse
(optional)
Specification Quantity
GR519
2031mm*1226mm
Card
10mm pen tip
M8*70 14
M4*16
M6*10
70mm*42mm*58.2mm
74mm*30mm*44.2mm
200mm*47mm*42mm
204mm*30mm*44.2mm
19V
1.5m (wabbler)
2.5m
Two DB9 heads,
L=3.0m
Adapter converter
A4 size
150mm*75mm
50mm*50mm
Black
120mm*50mm*35mm
10mm pen tip
Charging cable and
headset included
Keyboard and mouse
1
2.Appearance
1
1
2
2

3.Installation

8
3.1 Draw the center line and the drilling horizontal line and the drilling position on the same horizontal on the
4
installation wall. Make sure the accuracy of correlative length is ±2mm.
2
2
3.2 After confirming the position of installation, use Φ8mm electric drill to make fourteen 80mm deep holes on the wall.
1
3.3 Insert the expansion rubber into the holes. Then install two fixed brackets B, two fixed brackets D, one hanging bar
1
and one stationary bar on the wall with self-tapping screw in the accessories box.
1
1
2
1
1
1
1
1
2
1
1
1
1
2
