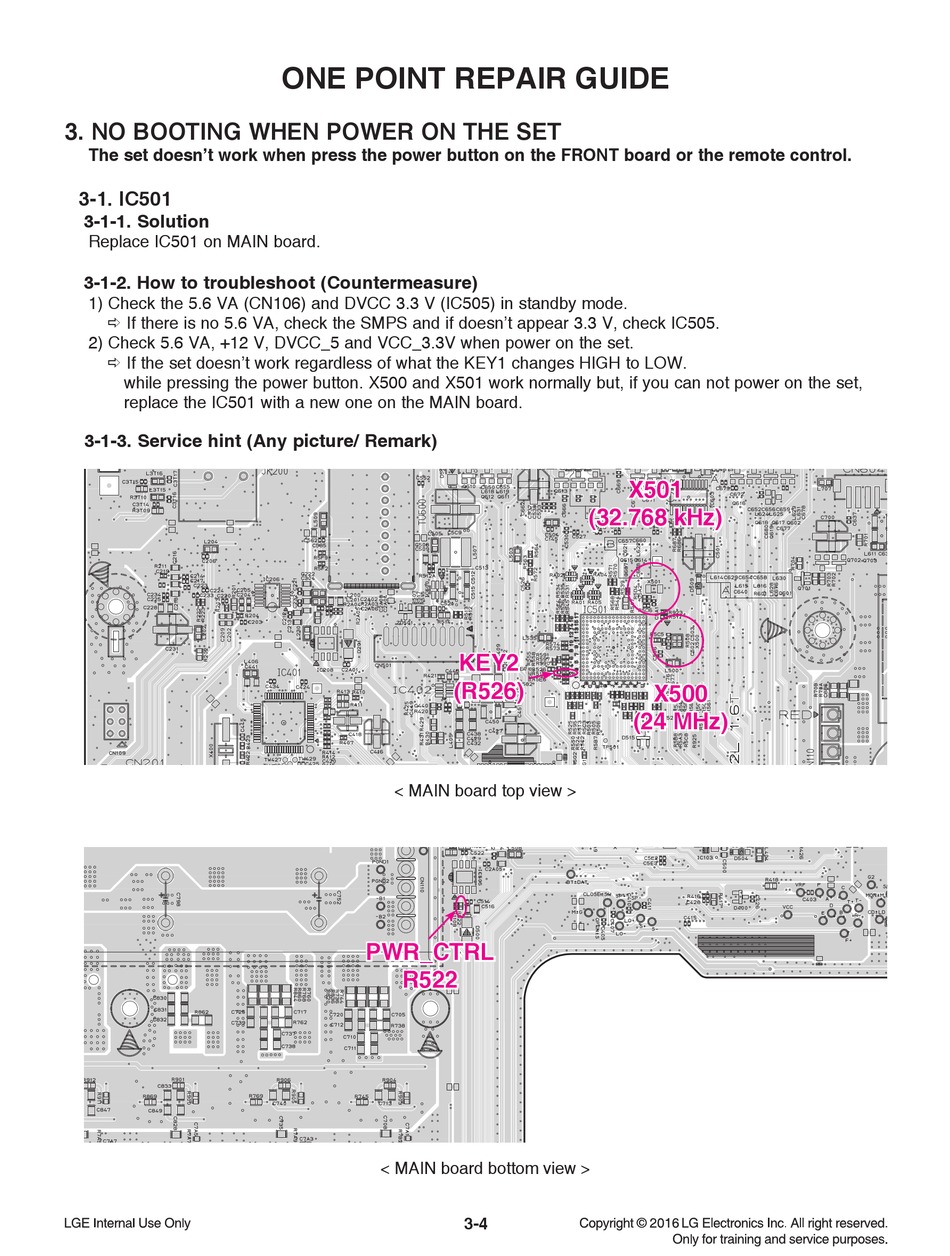

3. NO BOOTING WHEN POWER ON THE SET
The set doesn't work when press the power button on the FRONT board or the remote control.
3-1. IC501
3-1-1. Solution
Replace IC501 on MAIN board.
3-1-2. How to troubleshoot (Countermeasure)
1) Check the 5.6 VA (CN106) and DVCC 3.3 V (IC505) in standby mode.
  If there is no 5.6 VA, check the SMPS and if doesn't appear 3.3 V, check IC505.
2) Check 5.6 VA, +12 V, DVCC_5 and VCC_3.3V when power on the set.
  If the set doesn't work regardless of what the KEY1 changes HIGH to LOW.
while pressing the power button. X500 and X501 work normally but, if you can not power on the set,
replace the IC501 with a new one on the MAIN board.
3-1-3. Service hint (Any picture/ Remark)
ONE POINT REPAIR GUIDE
KEY2 KEY2
(R526) (R526)
< MAIN board top view >
PWR_CTRL PWR_CTRL
R522 R522
< MAIN board bottom view >
X501 X501
(32.768 kHz) (32.768 kHz)
(24 MHz) (24 MHz)
3-4
X500 X500
