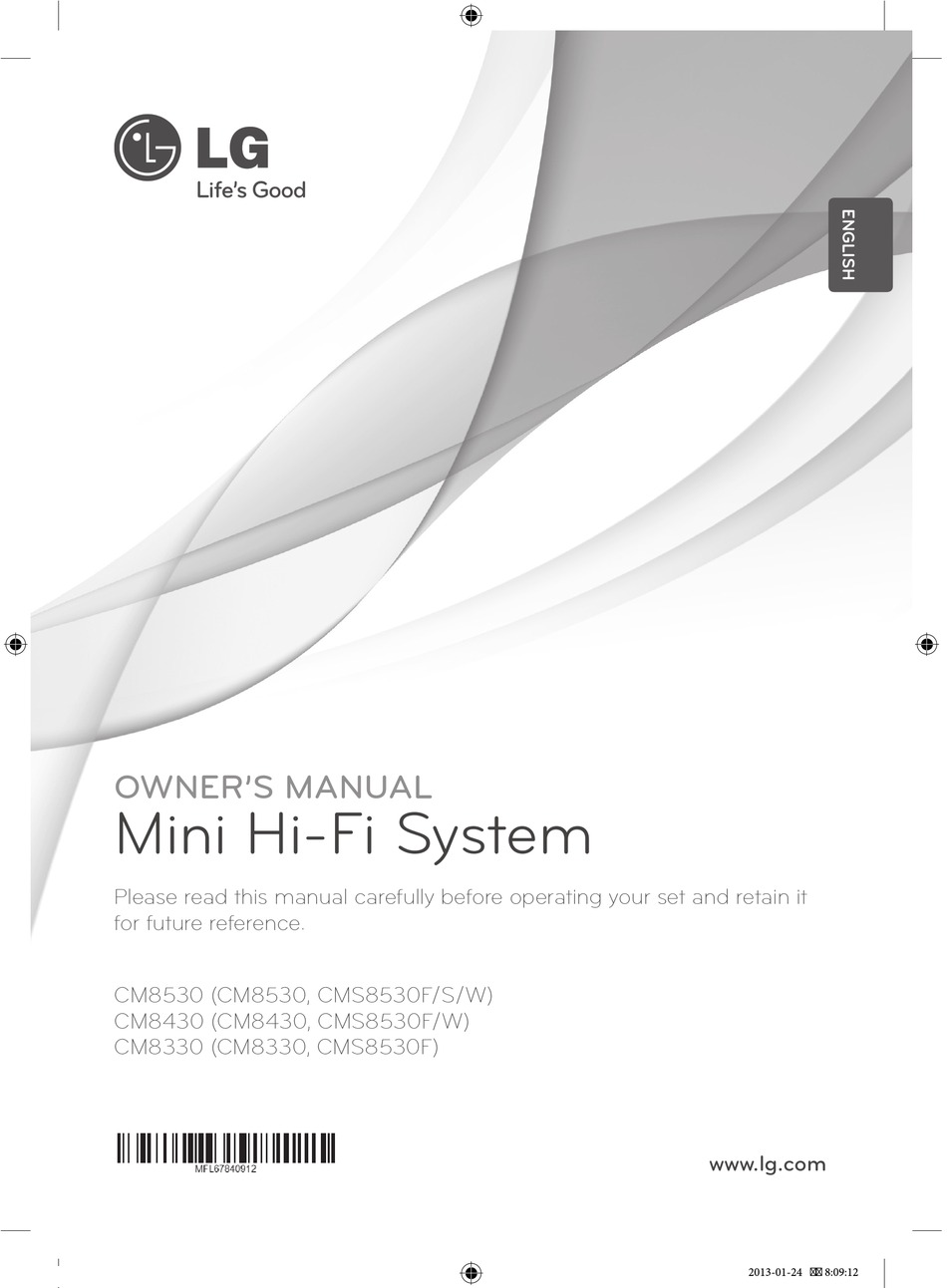

- Page 1 OWNER’S MANUAL Mini Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. CM8530 (CM8530, CMS8530F/S/W) CM8430 (CM8430, CMS8530F/W) CM8330 (CM8330, CMS8530F) www.lg.com CM8430-AB_DUSALLK_ENG.indd 1 2013-01-24 �� 8:09:12...
-
Page 2: Safety Information
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. CM8430-AB_DUSALLK_ENG.indd 2 2013-01-24 �� 8:09:13... - Page 3 To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible. CM8430-AB_DUSALLK_ENG.indd 3 2013-01-24 �� 8:09:13...
-
Page 4: Important Safety
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. CM8430-AB_DUSALLK_ENG.indd 4 2013-01-24 �� 8:09:14... - Page 5 Reorient or relocate the receiving antenna. Responsible Party : y Increase the separation between the equipment LG Electronics USA, Inc. 1000 Sylvan Avenue and receiver. Englewood Cliffs, NJ 07632 y Connect the equipment into an outlet on a TEL.
-
Page 6: Table Of Contents
Unique Features only) Accessories – Affix the Ferrite Core for power cord Playable file Requirement (For EMI only, CM8530, CM8430) – Affix the Ferrite Core for lighting – MP3/WMA music file requirement – Compatible USB Devices cable (For EMI only, CM8530, –... - Page 7 – Setting the surround mode – Setting the USER EQ Setting the Clock – Setting the Clock Manually – Setting the Clock through “LG Bluetooth Remote” App – Using your player as an alarm clock – Sleep Timer Setting – Dimmer Advanced Operations –...
-
Page 8: Unique Features
Batteries (2) USB Direct Recording Records music to your USB device. LG Bluetooth Remote LG Bluetooth Remote is an App designed to let you take control of some of LG’s latest Audio devices. Non-skid pad(1)- Refer to the page 28. -
Page 9: Playable File Requirement
When setting the option to Live File hard type USB devices are not supported. System, you cannot use it on LG players. y USB port of the unit cannot be connected to PC. (Mastered/Live File System : Disc format system The unit cannot be used as a storage device. -
Page 10: Front Panel
Getting Started Front panel CM8430-AB_DUSALLK_ENG.indd 10 2013-01-24 �� 8:09:15... - Page 11 - Stops playback or recording. SMART DJ - Cancels DELETE function. Selects SMART DJ mode. (For more information SPK Lighting / DEMO (CM8530 / CM8430) refer to the page 24 - Changes speaker’s lighting effect. AUTO DJ - Shows demo Selects the AUTO DJ mode.
-
Page 12: Rear Panel (Cm8530)
ANTENNA (FM, AM) or 230 V / 15 A, otherwise the unit may not operate properly because of the lack of f Power cord power supply. y Do not overload the extension cord with excessive electrical load. CM8430-AB_DUSALLK_ENG.indd 12 2013-01-24 �� 8:09:16... -
Page 13: Rear Panel (Cm8430)
Getting Started Rear panel (CM8430) > Caution a Cooling fan y Connect the power cord to wall outlet b Speakers connector directly if possible. Or when you use an c SPEAKER LIGHTING SYSTEM extension cable, it is highly recommended d AUX IN connectors (L/R) -
Page 14: Rear Panel (Cm8330)
110 V / 15 A e Power cord or 230 V / 15 A, otherwise the unit may not operate properly because of the lack of power supply. y Do not overload the extension cord with excessive electrical load. CM8430-AB_DUSALLK_ENG.indd 14 2013-01-24 �� 8:09:17... -
Page 15: Remote Control
Remove the battery cover on Z ENTER : the rear of the Remote Control, - Stops playback or recording. and insert two (size R03(AAA)) batteries with 4 and 5 matched - Cancels DELETE function. correctly. CM8430-AB_DUSALLK_ENG.indd 15 2013-01-24 �� 8:09:18... -
Page 16: Connecting
Connecting How to Affix the Affix the Ferrite Core for lighting cable (For EMI only, Ferrite Core(For EMI CM8530, CM8430) only) Before connecting speaker’s lighting cable, you should affix ferrite core in order to reduce or eliminate electrical interference. Affix the Ferrite Core for... -
Page 17: Connecting To Speakers
3. Put the stacking board on the subwoofer. 4. Place the front and the surround speakers on the stacking board firmly. 5. Attach the non-skid pads between the front and the surround speakers for preventing scratchs. CM8430-AB_DUSALLK_ENG.indd 17 2013-01-24 �� 8:09:21... -
Page 18: Connecting To Speakers
Orange SUB WOOFER 2 Blue SURR L White FRONT L CM8430 Color Speaker FRONT R Orange SUB WOOFER White FRONT L CM8330 Color Speaker FRONT R White FRONT L CM8430-AB_DUSALLK_ENG.indd 18 2013-01-24 �� 8:09:21... -
Page 19: The Unit (For Cm8530, Cm8430)
Connecting Attaching the speaker light cables to the unit (For CM8530, CM8430) Connect the speaker’s lighting cables on the speakers to the SPEAKER LIGHTING SYSTEM jack on the unit. > Caution y Make sure to connect the cables to connectors tightly on the unit. -
Page 20: Optional Equipment Connection
2. Turn the power on by pressing 1/!. 3. Select the PORTABLE or AUX function by using FUNCTION. 4. Turn on the portable player or external device and start it playing. CM8430-AB_DUSALLK_ENG.indd 20 2013-01-24 �� 8:09:22... -
Page 21: Usb Connection
2. Remove the USB device from the unit. Note y To prevent noise pickup, keep the AM Loop antenna away from the unit and other components. y Be sure to fully extend the FM wire antenna. CM8430-AB_DUSALLK_ENG.indd 21 2013-01-24 �� 8:09:23... -
Page 22: Operating
1. Press PRESET.FOLDER W/S repeatedly until a repeatedly repeatedly. Refer desired folder appears. to the note for randomly details about the 2. Press d/M to play it. The first file of folder will display change. play. CM8430-AB_DUSALLK_ENG.indd 22 2013-01-24 �� 8:09:24... -
Page 23: Deleting An Mp3/Wma File
Files and folders will be presented in order recorded and may be presented differently according to the record circumstances. y *ROOT : It is “ROOT” which is the first screen you can see when a computer recognizes the storage device. CM8430-AB_DUSALLK_ENG.indd 23 2013-01-24 �� 8:09:24... -
Page 24: Playback Effect
If SMART DJ is turned off, you should turn it on again to enjoy the effect. y It is impossible to operate SMART DJ and AUTO DJ at the same time. If you select one, another will be turned off automatically. CM8430-AB_DUSALLK_ENG.indd 24 2013-01-24 �� 8:09:24... -
Page 25: Dj Effect
AUTO DJ function is not supported in the music file whose length is less than 60 seconds. y During recording, AUTO DJ function is not available. y Only AUTO DJ SEQUENTIAL is selected when played JUKE BOX list. CM8430-AB_DUSALLK_ENG.indd 25 2013-01-24 �� 8:09:24... -
Page 26: Juke Box Playback (Program Play)
- Removing the disc or the USB device. on the unit. - Deleting or recording music files in the To cancel it, press JUKE BOX twice. “JUKE BOX OFF” USB device. appears on the display window. CM8430-AB_DUSALLK_ENG.indd 26 2013-01-24 �� 8:09:25... -
Page 27: Using A Bluetooth Wireless Technology
XX:XX means the last four digits of BT address. For example, if your unit has a BT Bluetooth Profiles address such as 9C:02:98:4A:F7:08, you will see “LG MINI(F7:08)” on your Bluetooth In order to use Bluetooth wireless technology, device. devices must be able to interpret certain profiles. - Page 28 Using Bluetooth App y The sound may be interrupted when Note the connection interfered by the other Only Android OS is available to use “LG remote” electronic wave. app with this unit. y You cannot control the Bluetooth device with this unit.
- Page 29 Store)” icon. 1. Tap “LG Bluetooth Remote” app icon on the home screen to open “LG Bluetooth Remote” 2. In the search bar, type in the “LG Bluetooth app, and go to the main menu. Remote” and search it. 2. Tap [Setting] and select the unit you want.
-
Page 30: Radio Operations
2. Press TUNER MEMORY to erase all the saved radio stations. Press on the unit or d/M on the remote control. This will change the tuner from stereo to mono and usually improve the reception. CM8430-AB_DUSALLK_ENG.indd 30 2013-01-24 �� 8:09:25... -
Page 31: Other Operations
You can enjoy other functions during You can select various types of the speaker light by the DEMO. Then the DEMO will pause to pressing SPK Lighting / DEMO (CM8530 / CM8430) temporary. on the unit. - Without input key in 10 sec, the DEMO will play back automatically. -
Page 32: Sound Adjustment
MP3 file. It improves the treble sound. Reinforces the treble, bass and BASS BLAST surround sound effect. Improves the bass and treble LOUDNESS sound. You can enjoy the sound BYPASS without equalizer effect. CM8430-AB_DUSALLK_ENG.indd 32 2013-01-24 �� 8:09:25... -
Page 33: Setting The Clock
Setting the Clock through “LG setting status. Bluetooth Remote” App Note Install “LG Bluetooth Remote” app on your Android y If you set the clock time, you can check the device. (see page 28 - 29) time by pressing CLOCK even when the player is turned off. -
Page 34: Sleep Timer Setting
4. To stop recording, press I on the unit or Z ENTER on the remote control. Pausing recording USB REC on the During recording, press unit or USB REC on the remote control to pause recording. Press it again to restart recording. (TUNER/AUX/AUX-MIC/PORTABLE only) CM8430-AB_DUSALLK_ENG.indd 34 2013-01-24 �� 8:09:25... - Page 35 - You can just record the music file. This equipment should not be used for such purposes. USB REC on the unit or USB REC on 5. Press Be responsible the remote control to finish the setting. Respect copyrights CM8430-AB_DUSALLK_ENG.indd 35 2013-01-24 �� 8:09:25...
- Page 36 A file is recorded by about 512 Mbyte when you record for a long term. y You may not store more than 999 files. y It’ll be stored as follows. The other AUDIO CD MP3/WMA source* * : TUNER, AUX and the like. CM8430-AB_DUSALLK_ENG.indd 36 2013-01-24 �� 8:09:26...
-
Page 37: Troubleshooting
Check whether the speaker light cables are connected to the unit correctly. No speaker light Connect the speaker light cables to the unit correctly. (CM8530, 8430 only) y Check the speaker light effects by pressing SPK Lighting/DEMO. CM8430-AB_DUSALLK_ENG.indd 37 2013-01-24 �� 8:09:26... -
Page 38: Appendix
400 W x 2 (THD 10 %) 400 W x 2 (THD 10 %) Surround Surround 180 W x 2 (THD 10 %) mode Subwoofer 360 W x 2 (THD 10 %) 400 W (THD 10 %) CM8430-AB_DUSALLK_ENG.indd 38 2013-01-24 �� 8:09:26... -
Page 39: Speakers Specifications
Appendix Speakers specifications Front speaker (CM8530, CM8430, CM8330) Model CM8530 CM8430, CM8330 Type 2 Way 2 speaker Impedance 6 Ω Rated Input Power 360 W 400 W Max. Input power 720 W 800 W 264 mm x 448 mm x 331 mm Net Dimensions (W x H x D) (10.4 inches x 17.6 inches x 13 inches) -
Page 40: Trademarks And Licenses
Bluetooth® wireless technology. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. CM8430-AB_DUSALLK_ENG.indd 40... -
Page 41: Maintenance
The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center. CM8430-AB_DUSALLK_ENG.indd 41 2013-01-24 �� 8:09:27... - Page 42 LG Customer Information Center 1-800-243-0000 USA, Consumer 1-888-865-3026 USA, Commercial Register your product Online! www.lg.com Printed in China CM8430-AB_DUSALLK_ENG.indd 42 2013-01-24 �� 8:09:27...
