Saugstrahlsystem 750 Die Ideale Lösung für Staubfreies und wirtschaftliched Sandstrahlen Saugstrahlsystem 750 ist kein traditionelles Sandstrahlgerät. Es bietet Ihnen einen Sauger und eine gesunde Arbeitsumgebung. Geringere Ausgaben für Strahlmaterial durch Recycling. Installierter Partikel Filter, geringere Belastung der Atmungsorgane. Der geschlosseneSandstrahlprozess interagiert nicht mit anderen Aktivitäten in Ihrer Werkstatt. Staubfrei Sandstrahlen bedeutet weniger Ausgaben für die Werkstattreinigung.
Page 2
Kompaktes Design einfache Handhabung Einfacher und Zusätzliche Lüftkühlung für den schneller Zugang Das Strahlgut wird in der Düse Antriebsmotor garantiert lange zum Motor, beschleunigt und trifft so die zu Lebensdauer Partikelfilter und Sandstrahlende Fläche Auffangbehäter. Motorkopf und Filterreinigung leicht abnehmbar Staub und Strahlgut werden in den Geräte- körper zurüclgefördert...
Page 3
Die Lösung für Staubfreies Sandstrahlen Sandstrahlen ist ein hocheffektives Verfahren um Rost, alte Farbe, Schweißnähte etc. zu entfernen. Sehr oft kann es eine mechanische und chemische Reinigung ersetzen. Das Strahlen hinterlässt eine perfekt gesäu- berte Arbeitsfläche und optimale Haftung für die anschlißende Oberflächenbearbeitung.
Page 6
Schaltplan Mit Funken lter Mit Funken lter Ersatzteilliste Pos Artikel-Nr. Beschreibung 373750 Kohlebürstensatz 230 V 73749 Kohlebürstensatz 120 V 503090 Motor 1 000 W, 230 V 13090 Motor 1 000 W, 120 V 70366200 Filter 70400051 Schlauch 32 mm Dia x 2 m 70795000 Sandstrahlpistole, Air Gunsa 70579931...
Luftverbrauch ........500 l/Min. bei 6 bar Betrieb 1. Legen Sie die vorgeschriebene Schutzausrüstung an. Das SB750 trägt die CE-Kennzeichnung. 2. Richten Sie die Strahlpistole auf das Werkstück. Die Pistole darf nie auf Sie selbst oder auf jemand anderen zeigen. Ersatzteile, siehe Seite 2.
Page 8

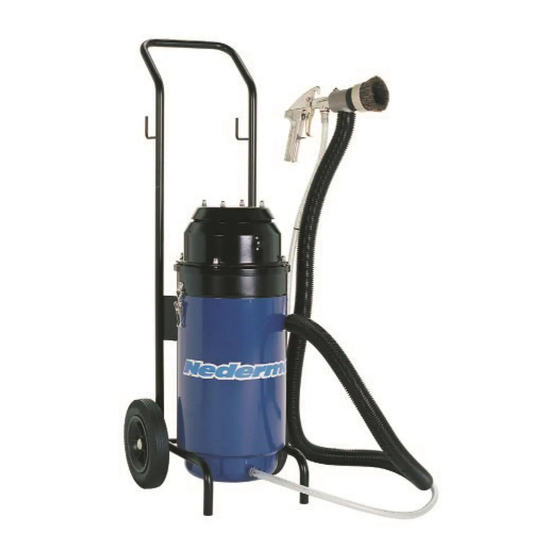

esska-tech.co.uk info@esska-tech.co.uk Suction Blaster 750 The solution for dust free and economical blasting Suction Blaster 750 is not a traditional blasting unit. It provides you with a cleaner and healthier working environment Lower costs for blasting material when it is recycled. Built-in particle filter for less constraint on your respiratory organs.
Page 9
A compact design for easy handling Fast and easy The blasting material Separately air cold access for service accelerates in the motor for long lifetime. of motor, particle nozzle and hits the filter and coarse surface to be blasted. separator. The motor package is easily deassembled for service and filterchange.
The solution for for dust free blasting Blasting is a highly effective way of removing rust, old paint, welding scale etc. and can often replace mechanical or chemical grinding/cleaning. Blasting gives you a perfectly cleaned surface providing an outstanding grip for the following surface treatment.
Technical Description Suction Blaster 750 Euro-plug 230V 50/60Hz Part. no. 750070 Technical Data Gun Pressure, max. 8 bar Air consumption 500 l/min. (6 bar) Compressor required, min. 2 hp (air receiver) Technical Data Unit Voltage 230V 50/60 Hz Power 1000W Filtration 99.9% (3 µm) Weight...
Page 13
Wiring diagram With radio lter With radio lter Spare Parts List Pos Part no Description 373750 Carbon brushes 230 V 73749 Carbon brushes 120 V 503090 Motor 1 000 W, 230 V 13090 Motor 1 000 W, 120 V 70366200 Filter 70400051 Hose 32 mm Dia x 2 m...
Air consumption ..500 l/min at 6 bar (17 cfm at 88 psi) Using the machine 1. Put on the required safety equipment. SB750 is CE-marked. 2. Move the blasting gun towards the work piece. You must never point the gun at yourself nor at anyone else.
