- Page 1 GCB65 CRY BABY CUSTOM BADASS DUAL-INDUCTOR EDITION WAH ® ™...

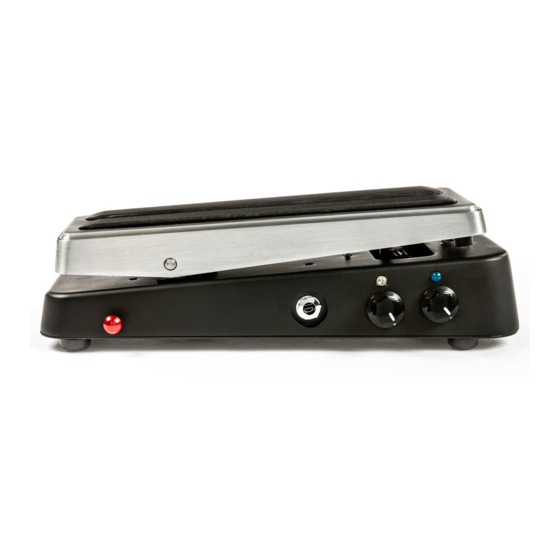

- Page 2 EXTERNAL CONTROLS 1 BYPASS/WAH ON LED indicates on/bypass status (white LED indicates on) ™ ® 2 HALO / FASEL inductor status LED indicates inductor selection 3 HALO-IN/FASEL-OUT kickswitch toggles between Halo (indicated by blue LEDs) & Fasel (indicated by red LEDs) inductors 4 FASEL FINE-TUNE knob adjusts toe-down frequency of Fasel Inductor mode 5 HALO FINE-TUNE knob adjusts toe-down frequency of Halo Inductor mode GCB65 CRY BABY...
- Page 3 ® ™ counterclockwise for a smoother sound. Edition Wah is powered by one 9-volt battery (accessed via underside of pedal), the Dunlop 6. Rotate the FASEL FINE-TUNE knob clockwise ECB003 9-volt adapter, or the DC Brick ™ for a more aggressive Fasel Inductor sound or counterclockwise for a smoother sound.
- Page 4 SPECIFICATIONS IMPEDANCE Input Impedance 1 MΩ Output Impedance < 10 kΩ NOISE FLOOR* Heel Down < -99 dBV Toe Down < -90 dBV CENTER FREQ (FASEL INDUCTOR) Heel Down 550 Hz Toe Down 1.2 to 1.8 kHz CENTER FREQ (HALO INDUCTOR) Heel Down 380 Hz Toe Down...
