- Page 2 92503010850revB...

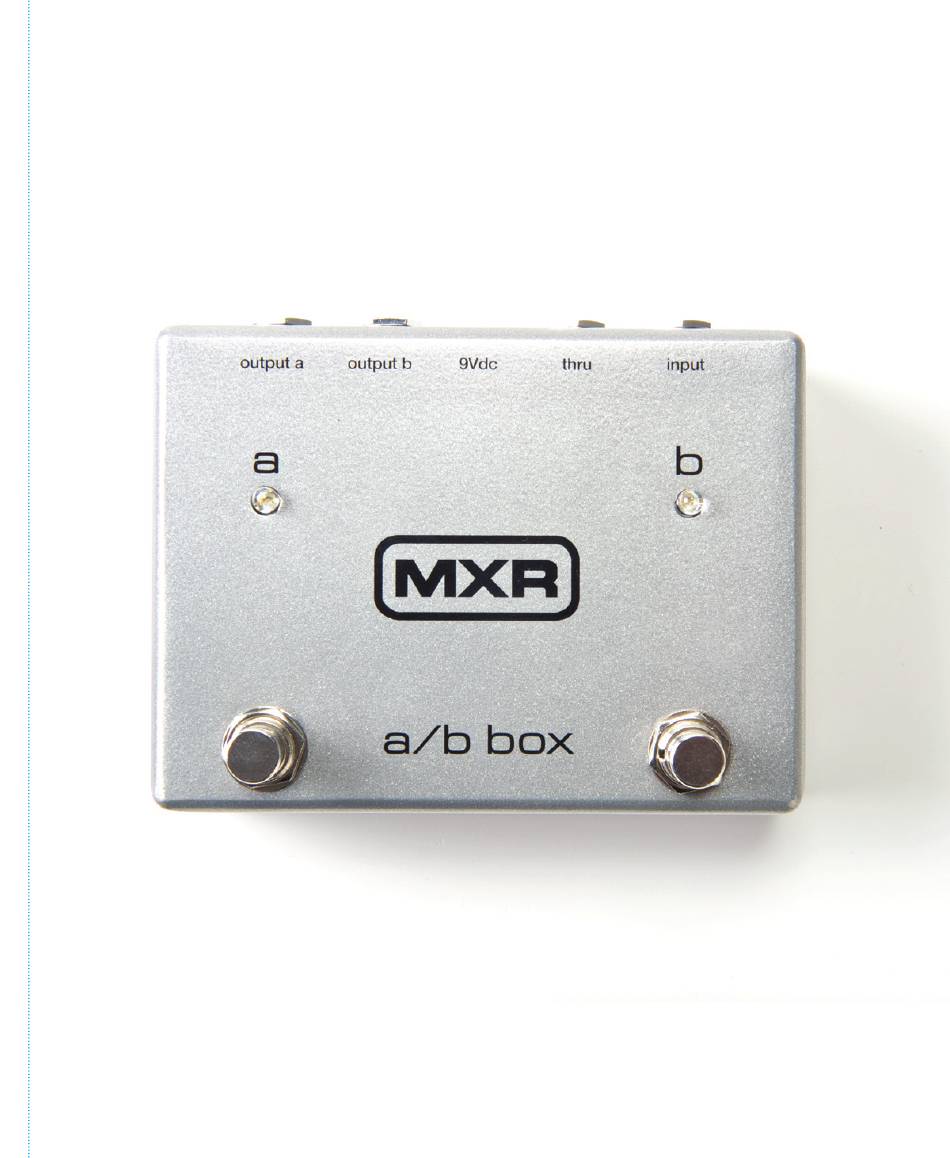

- Page 3 M196 A/B BOX...

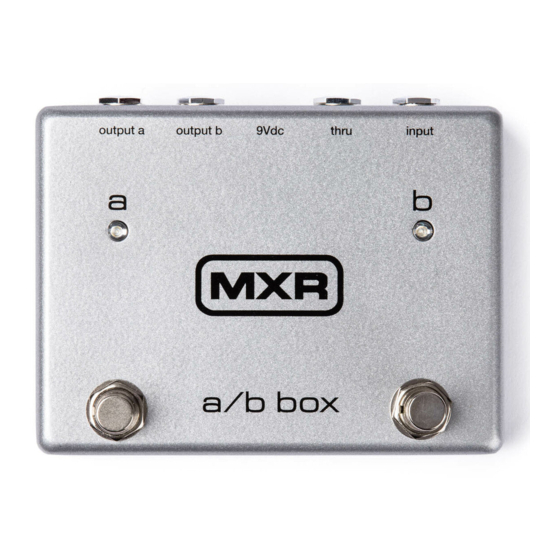

- Page 4 M196 A/B BOX DESCRIPTION POWER • Routes instrument signal to two The MXR A/B BOX is powered separate output paths by one 9 volt battery (remove bottom plate to install), a 9 volt • Select between two separate AC Adapter such as the Dunlop...
- Page 5 DIRECTIONS • Run a cable from Amp A to • Run a cable from your instrument the A/B Box’s Output A jack, to the A/B Box’s Input jack. and another from Amp B to • OPTIONAL: If you want to the Output B jack.
-
Page 6: Specifications
SPECIFICATIONS Switching True hardwire Current Draw 1.4 mA Power Supply DC 9 volts DUNLOP MANUFACTURING, INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A. TEL: 1-707-745-2722 FAX: 1-707-745-2658...
