Tennsco Z Series Assembly Instructions/Parts Manual

REPLACEMENT PARTS

Front-to-Back
End Support
(Ref No. 3)
Particleboard Decking
(Ref No. 6)
Left-to-Right
Shelf Support
(Ref No. 4)
(Ref No. 2)
REF.
NO. DESCRIPTION PART NO.
1 Angle Post (single or starter units only) EUR-60
OR EUR-84
2 "T" Post (adder units only)
ZTP-60
OR ZTP-84
3 Front-to-Back End Support LRA-15
OR
LRA-30
4 Left-to-Right Shelf Deck Support LRA-42G
OR LRA-69
5 Shelf Deck Support SDS-15
OR SDS-30
6 Optional Particleboard Decking PB-4215
OR PB-4230
OR PB-6915
OR PB-6930
7 Optional Wiring Decking ZWD-4215
OR
ZWD-4230
OR ZWD-6915
OR ZWD-6930
NOTE: Additional hardware may be included for replacement purposes.
Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged.
However, should your unit contain missing or damaged parts, please contact your purchase location.
49B200
Wire Decking
(Ref No. 7)
Front-to-Back Shelf
Deck Support
(Ref No. 5)
ZTP
Upright
QTY. 60" HIGH QTY.
42w 42w 69w 69w x 42w 42w
x 15d x 30d x 15d 30d x 15d x 30d
4 4 4 4
4 4
2 2 2 2
2 2
6 6 8
6 6 8
6 6 8 8
6 6
3 4
3
3 4
3 4
3
3
3 4
3
4
3
3
ASSEMBLY INSTRUCTIONS & PARTS MANUAL

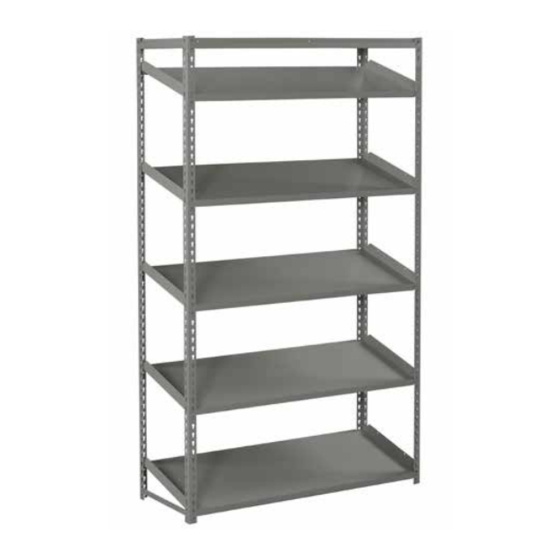

Z-Line Record Archive Storage Racks
ZA421560-3D, ZA421584-4D, ZA423060-3D, ZA423084-4D,
ZA691560-3D, ZA691584-4D, ZA693060-3D, ZA693084-4D
EUR Upright
(Ref No. 1)
84" HIGH
69w 69w
x 15d x 30d
4 4
2 2
8
8
8 8
4 Some parts may have sharp edges. CARE must be taken when handling various pieces to avoid injury.
4
For safety, wear a pair of work gloves when assembling or performing any maintenance on carts.
4
4
Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder. This warranty shall not apply in
4
the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification or repair by persons not authorized by Seller, where goods are damaged during
shipment, or where the date stamps on the goods have been defaced, modified or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:
a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED:
4
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS AT SELLER'S OPTION, AND SHALL IN NO
4
EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place of business or require Buyer to return the
goods to Seller for inspection on Seller's premises. Transportation charges covering returned goods will be borne by Seller only if such goods are proven to be defective, are covered by this warranty
and are returned within the warranty period stated above.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE

GENERAL SAFETY INFORMATION

LIMITED WARRANTY

Tennsco LLC., Dickson, TN 37056-1888 • (866) 446-8686
PK-2000919
