ASSEMBLY INSTRUCTIONS & PARTS MANUAL

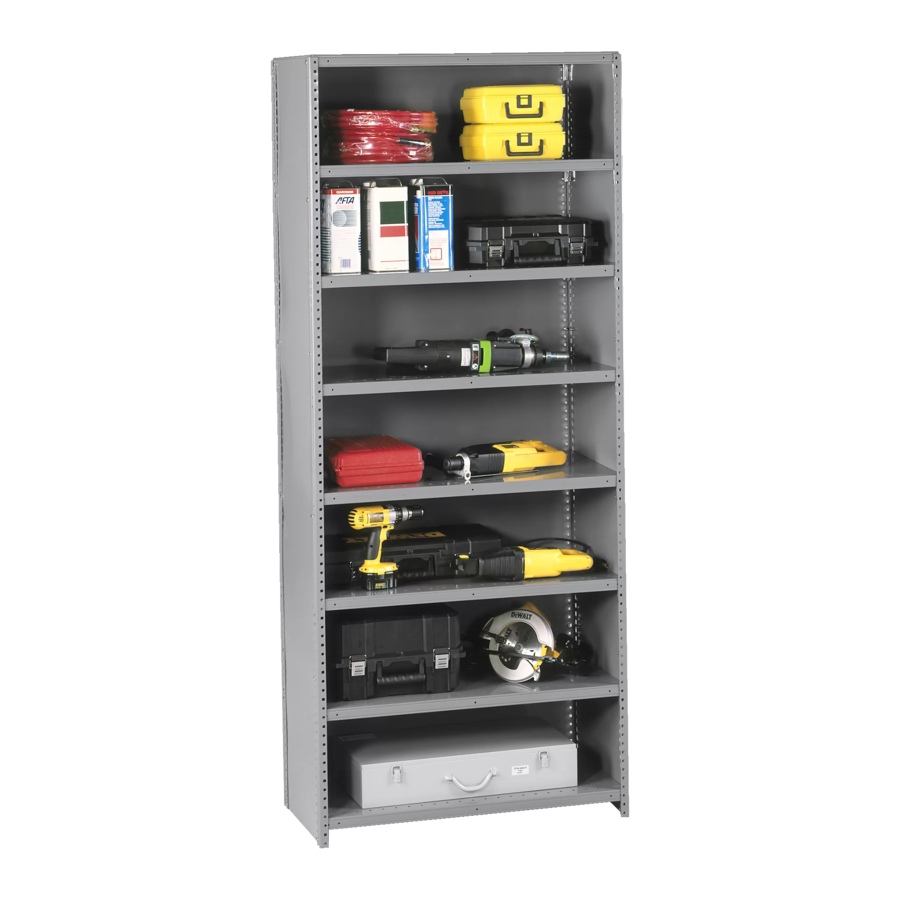

Q-Line Closed Style

Industrial Shelving

QC6-3612S

Starter unit

Some parts may have sharp edges. CARE must be taken when handling various pieces to avoid injury.

For safety, wear a pair of work gloves when assembling or performing any maintenance on units.

Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder. This warranty shall not apply in

the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification or repair by persons not authorized by Seller, where goods are damaged during

shipment, or where the date stamps on the goods have been defaced, modified or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:

ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED:

BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS AT SELLER'S OPTION, AND SHALL IN NO

EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place of business or require Buyer to return the

goods to Seller for inspection on Seller's premises. Transportation charges covering returned goods will be borne by Seller only if such goods are proven to be defective, are covered by this warranty

and are returned within the warranty period stated above.

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE

GENERAL SAFETY INFORMATION

LIMITED WARRANTY

QC5-3612S and QC5-3612AB

Starter unit and Adder unit

Tennsco LLC., Dickson, TN 37056-1888 • (866) 446-8686

PK-2070919

Need help?

Do you have a question about the Q Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tennsco Q Series

Page 1 LIMITED WARRANTY Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder. This warranty shall not apply in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification or repair by persons not authorized by Seller, where goods are damaged during shipment, or where the date stamps on the goods have been defaced, modified or removed.
Page 2 ASSEMBLY OF CLOSED Q-LINE INDUSTRIAL SHELVING Two people are recommended for assembly. Approximate assembly time: 20-30 minutes. Tools required: or nut driver or socket and a flathead screwdriver. ” The reference numbers used throughout this sheet refer to the illustration on the back cover. This is to help you to identify the various parts as they are mentioned.
Page 3 Bolt the panels into the small holes near the edge of both Lay the unit back (Ref. No. 3) on a flat surface and attach on uprights using ”-20 x ” bolts and nuts (Ref. No. 6). end to it using ”-20 x ”...
Page 4 With an associate still holding the two uprights, insert four shelf Insert four shelf clips into the bottom slots of the uprights in the clips (Ref. No. 4) into the top two slots of each side of each same way that you did in the top of the uprights in step 9. upright.
Page 5 Position the remaining shelf clips according to your desired shelf If you purchased the optional label holder (Ref. No. 8) on the heights, then place the shelves over the clips. Keep in mind front edge of the shelf and secure with three provided P-38F while placing the clips, that the post hole pattern of two plastic plugs.
Page 6 For added strength, place two ”-20 x ” bolts and nuts through each corner of each shelf, and into the small holes of the uprights. If more than one unit is to be used in a row, assemble a new unit end, and then connect this new end to the existing unit (which you already built with the proper uprights if you followed the instructions in step 3) with a top and bottom shelf.
Page 7 If two units are to be used back-to-back, and you have only one back panel, the two units may share the same back panel by attaching it on the outside of the uprights. If you have ordered two units, each with a back, you can use both backs on the inside of the uprights. NOTE: When attaching units back-to-back, you will have to unscrew some of the nuts and bolts you have already attached, as both units will share the same nuts and bolts in the back.
Page 8: Replacement Parts
NOTE: Additional hardware may be included for replacement purposes. Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged. Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged.

This manual is also suitable for:

Qc6-3612sQc5-3612sQc5-3612ab
