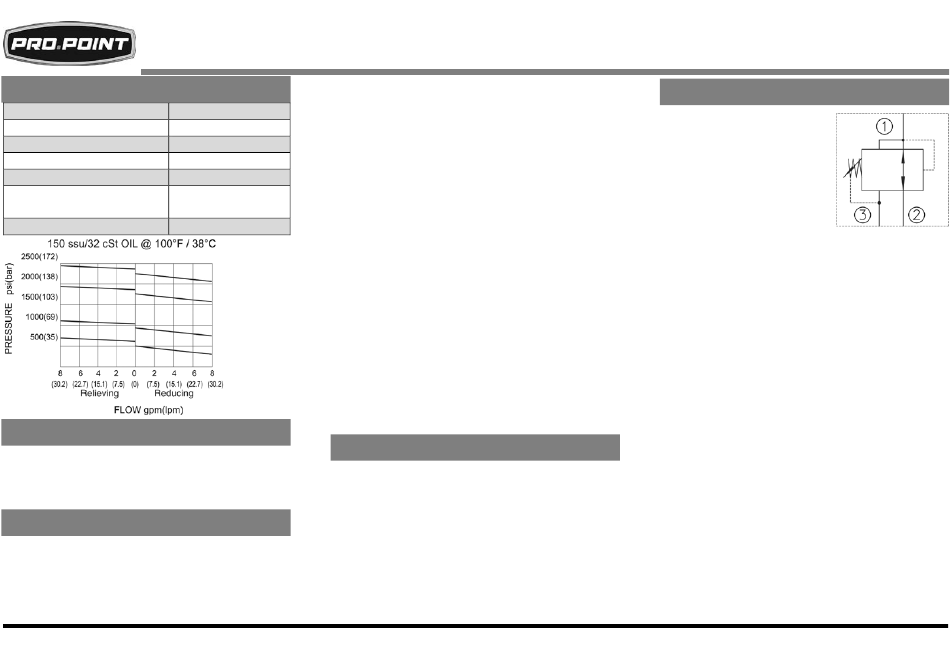

pro.point 8689499 Assembly

V1.0
8 GPM PRESSURE REDUCING VALVE

SPECIFICATIONS

Rated Input Flow 8 GPM
Maximum Pressure 3,000 PSI
Adjustable Pressure Range 400 to 2,100 PSI
Preset Pressure 2,100 PSI
Filtration Requirement 10 Micron minimum
Temperature Range -30°C to 120°C
(-22°F to 250°F)
Port Size 8 ORB

INTRODUCTION

The Pressure Reducing Valve decreases the
hydraulic oil pressure on downstream
components such as a cylinder or motor that
require a pressure reduction to operate.

SAFETY

WARNING! Read and understand all
instructions before using this device. The
operator must follow basic precautions to
reduce the risk of personal injury and/or
damage to the equipment.
Please read and understand all instructions before use. Retain this manual for future reference.
Keep this manual for safety warnings,
precautions, operating or inspection and
maintenance instructions.
1. Use the correct device for the job. This
device was designed for a specific function.
Do not modify or alter this device or use it
for an unintended purpose.
2. Operate in a safe work environment.
Keep your work area clean, well-lit and free
of distractions.
3. Do not operate any device when tired
or under the influence of drugs, alcohol
or medications.
4. Always wear impact safety goggles that
provide front and side protection for the eyes.
Eye protection equipment should comply
with CSA Z94.3-07 or ANSI Z87.1 standards
based on the type of work performed.
5. Wear protective clothing designed for the
work environment and device.
6. Consult the safety precautions for your
hydraulic system when installing and
operating this valve.

UNPACKING

WARNING! Do not operate the device if any
part is missing. Replace the missing part before
operating. Failure to do so could result in a
malfunction and personal injury.
Remove the parts and accessories from the
packaging and inspect for damage. Make sure
that all items in the parts list are included.
Contents: Pressure Reducing Valve
ASSEMBLY
1. Connect the hose from
the pump side of the
hydraulic circuit to the
reducing valve's Port 1.
2. Connect the hose from
the hydraulic circuit
section that needs a
pressure reduction to
the reducing valve's
Port 2
3. Connect the reducing valve's port 3 to the
reservoir, either directly or with a return
hose.
4. Set the pressure by turning the
adjustment screw inward to increase
pressure and outward to decrease
pressure. One full turn will
increase/decrease pressure by approx.
360 PSI.
8689499
