Child Craft Wadsworth 1316 Instructions For Future Use

Dressing table

Advertisement

Available languages

Available languages

Quick Links

5216 Portside Dr, Medina Oh 44256 USA • PH: 1 330.722.5033 • FAX: 1 330.722.5037
Read all instructions BEFORE assembly and USE of product.
FOR CUSTOMER SERVICE CALL
1-877-716-2757
(outside of U.S. 330-722-5033). DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR WARRANTY AND FEDERAL SAFETY STANDARD
COMPLIANCE CERTIFICATES, PLEASE VISIT OUR
WEBSITE AT
www.foundations.com
ASSEMBLY ASSISTANCE
IMPORTANT: retain for future reference read
carefully.
Foundations
strives for the highest quality in our
®
products but occasionally a missing part or problem
can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.foundations.com or Call Foundations
assistance at 1-877-716-2757 (U.S. Only) or
1-330-722-5033 (Monday through Friday, 9:00
a.m.– 4:00 p.m. Eastern Time). Please have the
model number and manufacture date available
when you call or write us at: Foundations
5216 Portside Dr. Medina Oh. 44256
ASSEMBLY INSTRUCTIONS
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product. KEEP INSTRUCTIONS FOR FUTURE
USE.
• Unpack carton, remove packing materials,
including poly bag. Identify and check all parts.
Foundations
www.childcraftbaby.com
Wadsworth Dressing Table
Models Covered: 1316
KEEP INSTRUCTIONS FOR FUTURE USE.
for
®
,
®
Worldwide, Inc.
®
Assembled Dressing Table
Record the information for your product here:
Model number:
Manufacture date:
PO number:
1
AB20041_G1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wadsworth 1316 and is the answer not in the manual?

Questions and answers

Summary of Contents for Child Craft Wadsworth 1316

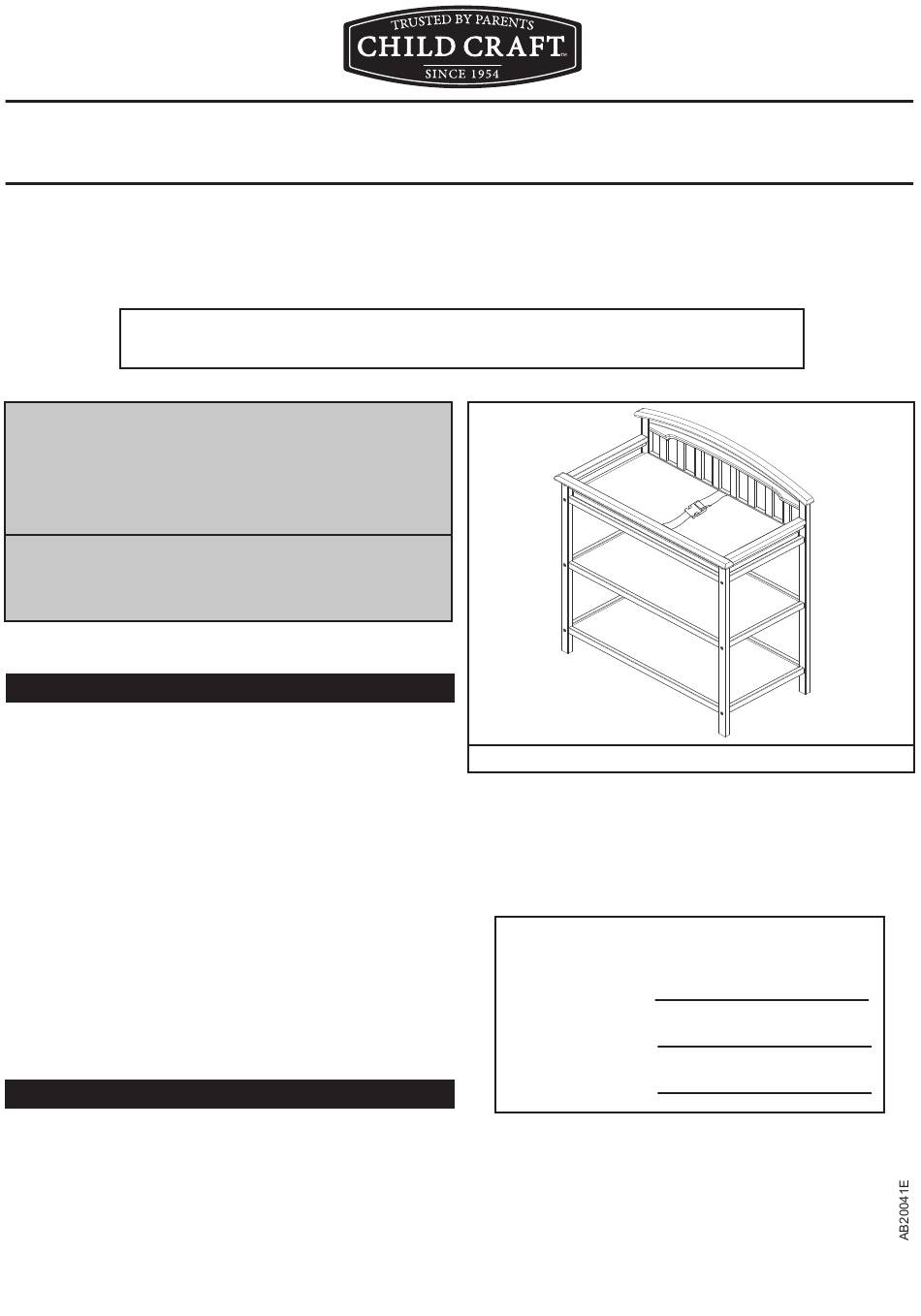

  • Page 1 Foundations Worldwide, Inc. ® 5216 Portside Dr, Medina Oh 44256 USA • PH: 1 330.722.5033 • FAX: 1 330.722.5037 www.childcraftbaby.com Wadsworth Dressing Table Models Covered: 1316 Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. FOR CUSTOMER SERVICE CALL 1-877-716-2757 (outside of U.S.
  • Page 2: Parts List

    PARTS LIST Part Number Quantity Part Description A. 4mm Allen Wrench 11200070 B. 6mm x 35mm Allen Head Bolt 11200325 C. 6mm x 20mm Allen Head Bolt 11200349 D. 6mm Hex Nut 11200350 E. Nylon Washer 11200009 F. Dressing Pad 21100110 G.
  • Page 3 STEP 1 Attach the parts shown in Figure 1 using Allen Head Parts are Bolts (B). Note: each Allen Head Bolt (B) will be shown threaded into a metal threaded insert as shown in assembled the enlarged diagram. Also install a Dowel Pin (H) on right side of Front in the receiving holes in End Top Rail - Left (K), End...
  • Page 4 STEP 3 Attach Back Assembly (J) as shown. Install Dowel Pins (H) into receiving holes in End Top Rail - Left K), End Top Rail - Right (L) and Back Assembly (J) as shown. Also guide edge of Top Shelf (O) and Lower Shelves (P) into receiving grooves in rails on Back Assembly (J).
  • Page 5 STEP 5 Align the holes in each end of Belt (G) with the holes NOTE: Style of Dressing Table may vary. in the Top Shelf (O). Attach by inserting Washer (E) on Allen Head Bolt (C) then through the hole in the Top Shelf (O).
  • Page 6 WARNING ● Read all instructions before use of the changing table. ● Failure to follow these warnings and assembly instructions could result in serious injury or death. ● FALL HAZARD: Children have suffered serious injuries after falling from changing tables. Falls can happen quickly.
  • Page 7 Foundations Worldwide, Inc. ® 5216 Portside Dr, Medina Oh 44256 É-U • Téléphone: 1 330.722.5033 • Télécopieur: 1 330.722.5037 www.childcraftbaby.com Table à langer Wadsworth Modèles couverts : 1316 Veuillez lire toutes les instructions AVANT de commencer l’assemblage et l’UTILISATION de ce produit. CONSERVEZ CES INSTRUCTIONS À...
