Summary of Contents for Bartscher Powerfresh

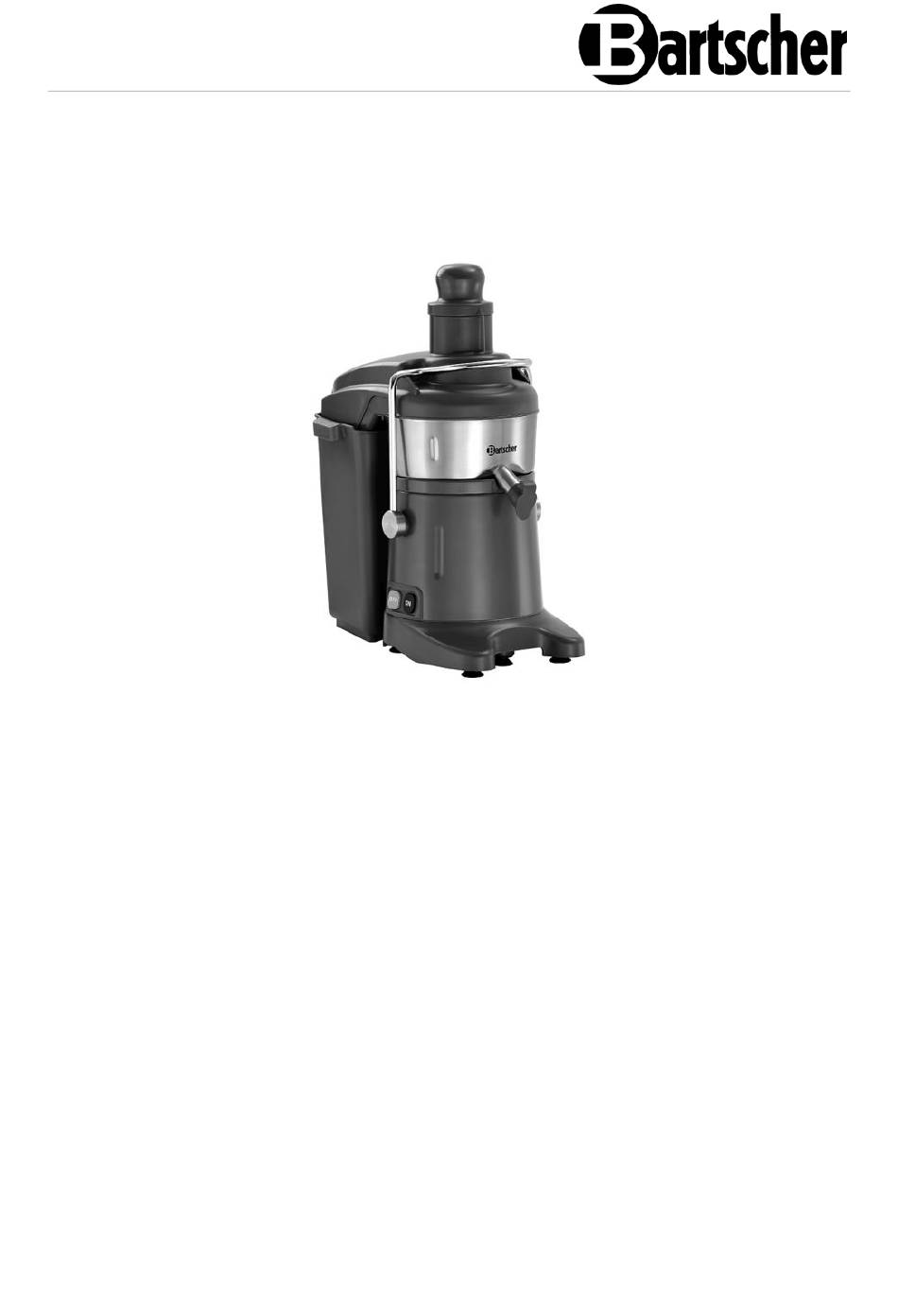

- Page 1 Powerfresh 150197...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-10-21...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 4 Unintended Use ..................4 General information ..................6 Liability and Warranty ................6 Copyright Protection ................6 Declaration of Conformity ................ 6 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages, which may occur if safety instructions are not observed. NOTE! The symbol NOTE indicates subsequent information and guidelines for the user on usage of the appliance. -
Page 6: Intended Use
Safety • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. Operating personnel •... - Page 7 Safety An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. The appliance may only be used to perform tasks described in this instruction manual. The following is an unintended use: –...
-
Page 8: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 9: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 10: Technical Data
Technical Data Technical Data Technical Specifications Name: Juicer Powerfresh 150197 Art. No.: Material: Plastic, stainless steel Speed levels: Rotational speed (RPMs), max.: 3000 Volume of pulp container, in l: Diameter of filling shaft, in mm: Spout height, in mm: Power supply:... -
Page 11: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 1. Pulp container 2. Operating elements 3. Motor drive 4. Locking bracket 5. Base unit / motor block 6. Base with rubber feet (5 pcs) 7. Filling shaft 8. Lid 9. Cleaning brush 10. -
Page 12: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 13: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 14 Installation and operation Fruit/Vegetables Preparation Carrots Peal and leave in whole, introduce 2–3 pieces a time Apples Wash and leave in whole (remove leaf stalks and labels) Beets Wash, cut into suitable pieces Strawberries Remove leaf stalks Grapes Remove leaf stalks Bananas Remove skin Mangos...
- Page 15 Installation and operation Indications and tips • When squeezing juice from various fruit and vegetables, it may be helpful to create different variations/combinations, e.g. when squeezing apple and orange juice, it is best to start with soft fruit (oranges) and then proceed with the hard fruit (apples).
- Page 16 Installation and operation Before First Use 1. Prior to first use, clean all the removable components of the appliance thoroughly, observing instructions in section 6 'Cleaning'. 2. Rinse the washed elements in clean water and then wipe with a linen-free cloth or leave to dry in open air.
- Page 17 Installation and operation 3. Place the pulp container on the 4. Place the middle ring on the edge of motor block. the juice bowl. With it, make sure that the hollow for pulp discharge is located opposite to the juice spout pipe with a locking. 5.
- Page 18 Installation and operation 6. Then, place the lid, making sure that 7. To end with, pull the locking bracket the ribbing on the lid are correctly over the lid until it snaps in place. aligned with recesses in the middle Thus the connection with safety ring.
- Page 19 Installation and operation 4. Fill the filling shaft with the prepared fruit and vegetables. 5. Introduce the pusher into the filling shaft, pressing it lightly. To obtain the maximum amount of juice, press the pusher down slowly. WARNING! Injury hazard! Never push the fruit nor vegetables with your fingers nor kitchen utensils.
-
Page 20: Cleaning
Cleaning 8. Observe the filling level of the pulp container during operation. As soon as it is filled up, switch the appliance off with the use of the orange 'OFF' button and empty the pulp container. CAUTION! Overfilled pulp container may cause that the appliance will cease to operate correctly. - Page 21 Cleaning – remove the middle ring from the juice bowl, – remove the juice bowl from the motor block, – remove the pulp container and remove the pulp. 3. Clean all the removed elements of the appliance under warm, running water, using a gentle washing agent.
-
Page 22: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
