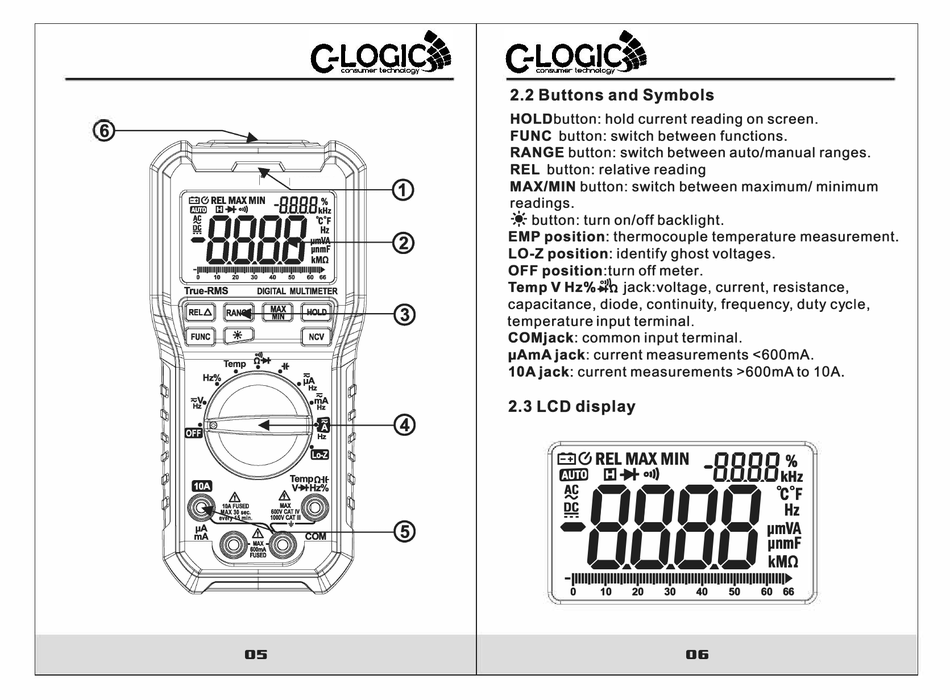

2.2 Buttons and Symbols

HOLDbutton: hold current reading on screen.
FUNC button: switch between functions.
RANGE button: switch between auto/manual ranges.
REL button: relative reading
MAX/MIN button: switch between maximum/ minimum
readings.
-:+:- button: turn on/off backlight.
EMP position: thermocouple temperature measurement.
LO-Z position: identify ghost voltages.
OFF position:turn off meter.
Temp V Hz%.l!b jack:voltage, current, resistance,
capacitance, diode, continuity, frequency, duty cycle,
temperature input terminal.
COMjack: common input terminal.
¡.iAmAjack: current measurements <600mA.
1 OAjack: current measurements >600mA to 1 DA.
