EAN 8423055007336 / 8423055007343 / 8423055007350
The device which you just have purchased passed several tests and control in order to
ensure its quality.
It is conceived to bring you an optimal comfort, without any maintenance.
Thank you for choosing us and your trust.
1. SAFETY INSTRUCTIONS
- Means for disconnection must be incorporated in
the fixing wiring in according with the wiring rules.
- A means of disconnection from the power supply
Instruction Manual
ASPEN
Model no.:
HT10PD, HT15PD, HT20PD
1
Advertisement

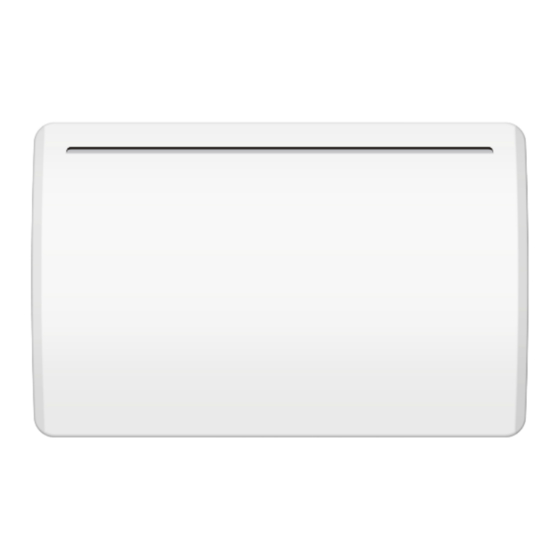

Related Manuals for Haverland ASPEN
Summary of Contents for Haverland ASPEN

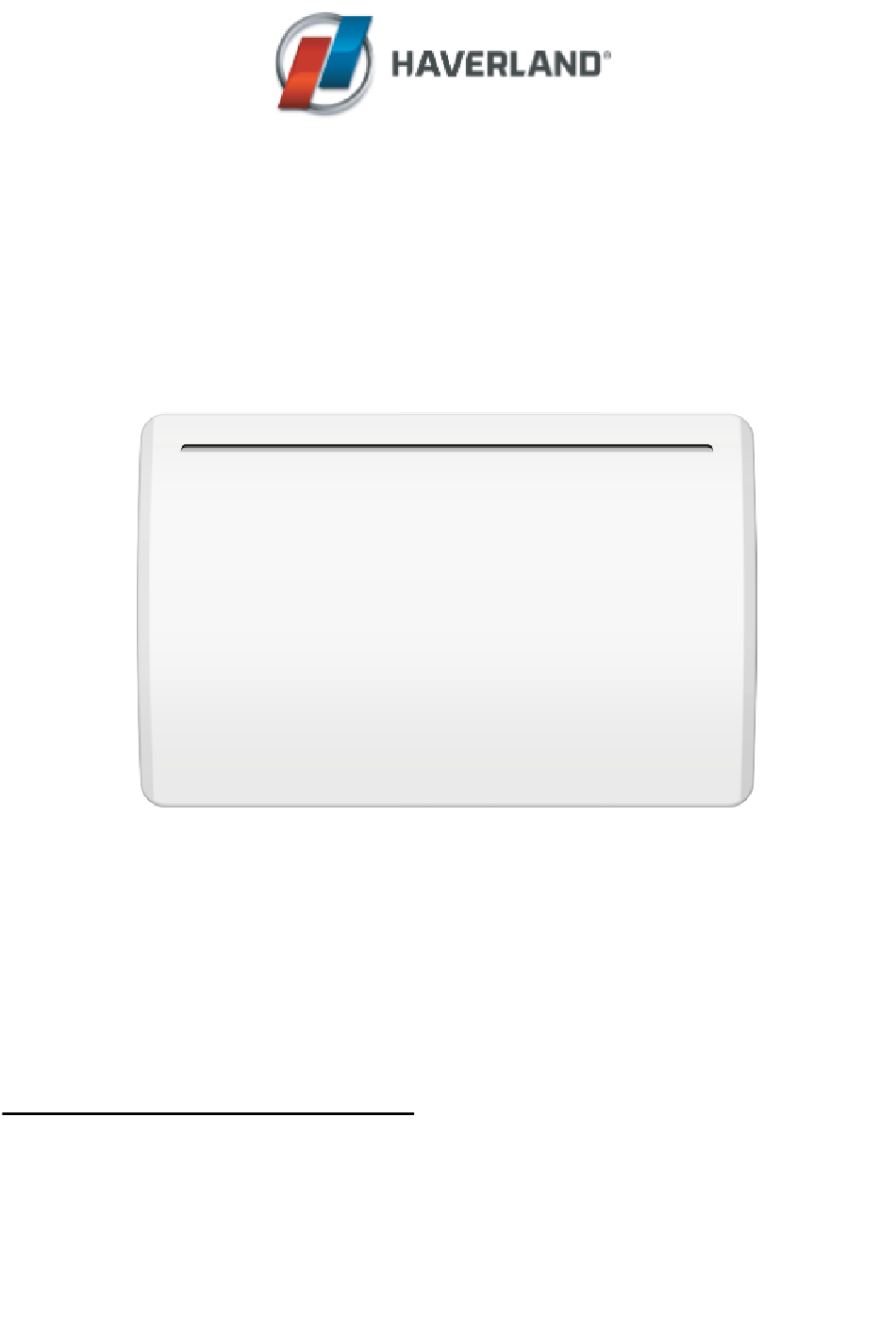

- Page 1 Instruction Manual ASPEN Model no.: HT10PD, HT15PD, HT20PD EAN 8423055007336 / 8423055007343 / 8423055007350 The device which you just have purchased passed several tests and control in order to ensure its quality. It is conceived to bring you an optimal comfort, without any maintenance.
- Page 2 having a contact opening distance of all poles must be included in the fixed wiring in accordance with the installation requirements. ： In WARNINGS order avoid overheating, do not cover the heater. - The device must not be exposed to water drops or splash.
- Page 3 physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Page 4 - Clean the device with a slightly humid towel after you switched off the circuit breaker which supplies the device. - Do not use any chemical solvent nor abrasive products to clean the surface of the device at the risk of scratching, damaging, or even distorting it. - The heater must not be located immediately below a socket outlet.
-
Page 5: Electrical Connection
restrict the flowing of the air around it. - Fix vertically the device on the wall as described below: - Choose screws and wall plugs which suit the material of the wall, and the weight of the device. INSTALLATION IN THE BATHROOM Warning: this product shall be used in the volume 2 only according to the national wiring rules (For France... - Page 6 the main circuit breaker. - The installation must be carried out in the rules of the art and meet the standards in force in the country (NF C 15-100 in France). - The unit must be connected to a standard wall box placed at least 25 cm from the floor.
- Page 7 FIXINGS To hang the heater on the wall: 1. Choose a suitable installation location for the heater. (Figure 1) 2. Disassemble the wall bracket by loosening the screw (do not remove, only loosen) and slide the metal plate out of the hole. Take out the bracket by pulling down (Figure 2).
- Page 8 the holes,then screw securely wall mount bracket onto the wall. (Figure 3) 4. Place the heater against bracket (Figure 4): A : Align the heater on the 2 lower hooks that are downwards. B : Pull the heater upwards whilst retaining it in the 2 lower hooks.
-
Page 9: Control Panel
temperature.) Temperature (centigrades) Weekly program setting: Mode Comfort active Mode eco active Standby CONTROL PANEL Button Function Standby Personalized programs Window detector function Comfort mode Economic mode Anti-freeze mode P1/P2/P3/P HOW TO USE 1.Setting the time and turning on the device After connection to the power supply: Press to toggle between hours / minutes / day of the week (1-7). - Page 10 In Pilot mode P, set the heating using the external timer. When the external programmer is set to another mode, the display shows: External Mode Setting Icon Displayed Comfort mode Comfort mode Comfort mode Economic mode Antifreeze mode Standby mode Pre-installed programs P1/P2/P3: Mon-Sun day workables...
- Page 11 1. Press PRG, then buttons to choose day 1. 2. Press the PRG button again, press to choose the hour, to choose comfort mode and then repeat for the entire 24 hours. After 30 seconds without action, the setting is saved. 4.
- Page 12 1) the appliance is put into standby mode by pressing standby button. 2) the appliance suffers power disconnection. You need to set again by pressing M for 3 seconds if you need this function. 6. Window detector function Press to enter window detecor function. Then press “ ”...
- Page 13 integrated thermostat Minimum heat output manual heat charge control with room (indicative) and/or outdoor temperature feedback Maximum electronic heat charge control with max,c continuous heat room and/or outdoor temperature output feedback Auxiliary electricity fan assisted heat output consumption nominal heat Type of heat output/room temperature control output (select one)
- Page 14 (indicative) and/or outdoor temperature feedback Maximum electronic heat charge control with max,c continuous heat room and/or outdoor temperature output feedback Auxiliary electricity fan assisted heat output consumption nominal heat Type of heat output/room temperature control output (select one) [no] minimum heat single stage heat output and no room output...
-
Page 15: Care And Cleaning
continuous heat room and/or outdoor temperature output feedback Auxiliary electricity fan assisted heat output consumption nominal heat Type of heat output/room temperature control output (select one) [no] minimum heat single stage heat output and no room output temperature control [no] In standby mode Two or more manual stages, no room temperature control... - Page 16 appliance supply and wait until it is completely cooled. 2. Use a damp cloth to clean the housing of the device. 3. Clean grilles and air outlet regularly. 4. Do not use water, liquids, abrasive detergents or chemicals (alcohol, petrol, etc.) for cleaning. IMPORTANT : The symbol opposite indicates the device may contain detrimental materials in small quantities to the environment.
