Cornwell Tools CAT355HD Operating Instructions

Operating Instructions • Warning Information • Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
SPECIFICATIONS
Chuck Size . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2"
Rated Horsepower . . . . . . . . . . . . . . . . . 0.5 h.p.
Max. Torque. . . . . . . . . . . . . . . . . . . . . . 8.1 ft-lbs
Free Speed . . . . . . . . . . . . . . . . . . . . . . . 800 RPM
Average Air Consumption . . . . . . . . . . . 3.4 cfm
Sound Pressure Level . . . . . . . . . . . . . . . .82 dBA
Vibration Level M/S
Overall Length. . . . . . . . . . . . . . . . . . . . . . . 8.66"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9 Lbs
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Minimum Hose Size . . . . . . . . . . . . . . . . 3/8" HD
Side Handle Included (yes/no) . . . . . . . . . . . . Yes
Recommended Air Pressure . . . . . . . . . . . . 90 psi
CAT355HD
WARNING
2
. . . . . . . . . . . . . . . .0.4 M/S
2
1
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION

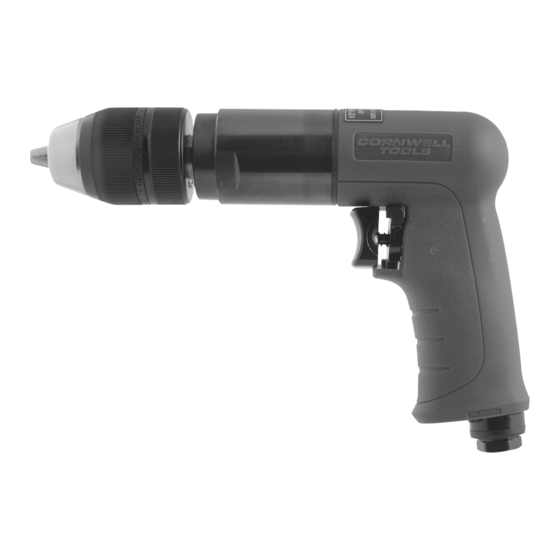

CAT355HD
1/2" Dr.
Heavy Duty
Reversible Air Drill
Copyright © Professional Tool Products, 2016
All rights reserved
rev. 02/05/16
