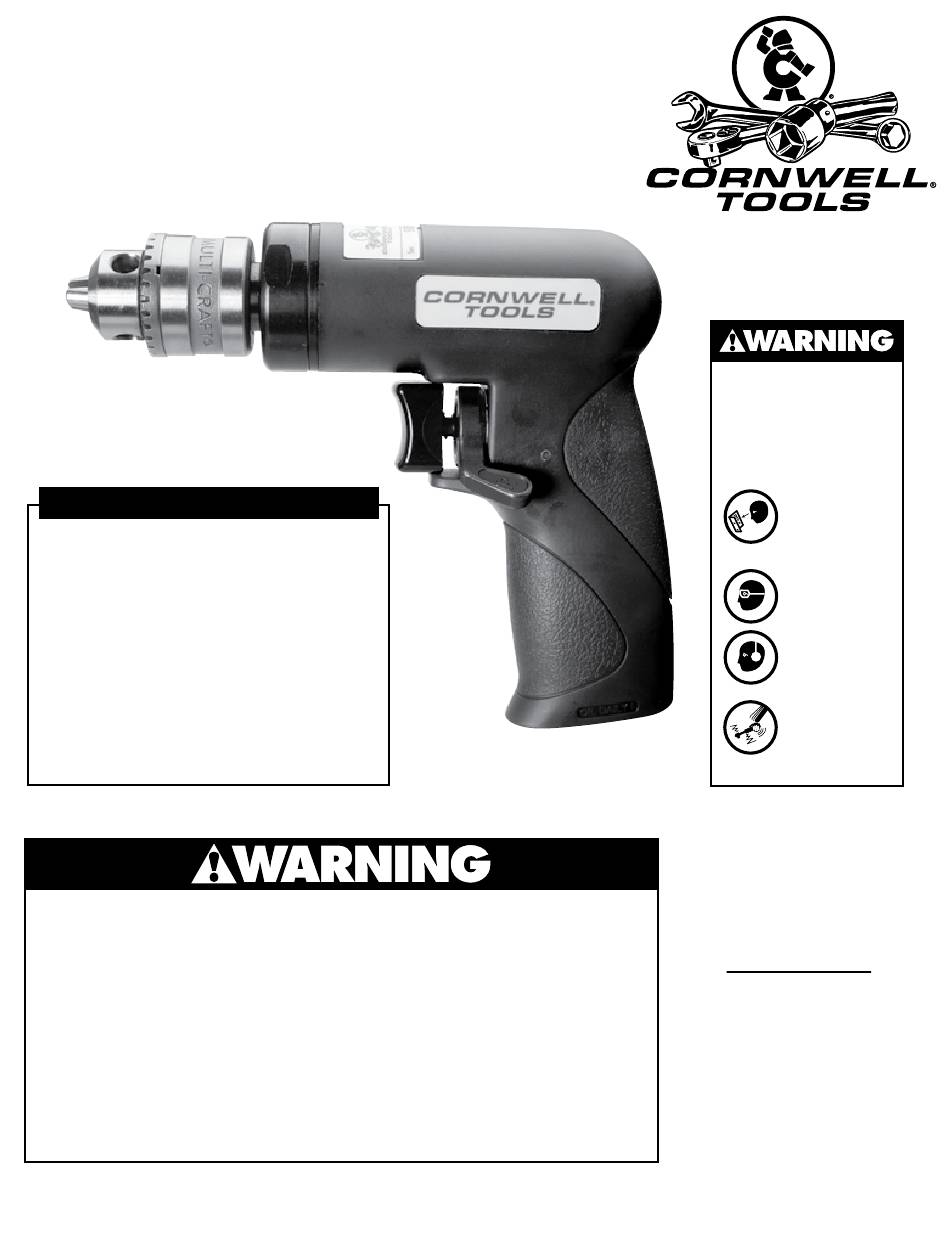

Operating Instructions • Warning Information
SPECIFICATIONS
Free Speed: . . . . . . . . . . . . . . 2600 RPM
Chuck Size: . . . . . . . . . . . . . . . . . . . . 1/4"
Tool Length: . . . . . . . . . . . . . . . . . . . 5 .8"
Weight: . . . . . . . . . . . . . . . . . . . 1 .45 Lbs
Air Consumption: . . . . . . . . . . . . . . .4 cfm
Sound Level: . . . . . . . . . . . . . . . . .84 dBA
Air Inlet: . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size: . . . . . . .3/8" I .D .
Spindle Size . . . . . . . . . . . . . . . .3/8" - 24
Recommended Air Pressure: . . . . . . 90 PSI
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products,
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
CAT240
• Parts Breakdown
Copyright © Professional Tool Products, 2006
1
• MAxiMuM rpM of 2600
• MAx Air pressure:
90 psig, 6.2 bAr
• rpM of the ACCessory
Must exCeed tooL rpM
ALwAys reAd
instruCtions
before using
power tooLs
ALwAys weAr
sAfety goggLes
weAr heAring
proteCtion
Avoid
proLonged
exposure to
vibrAtion
CAT240

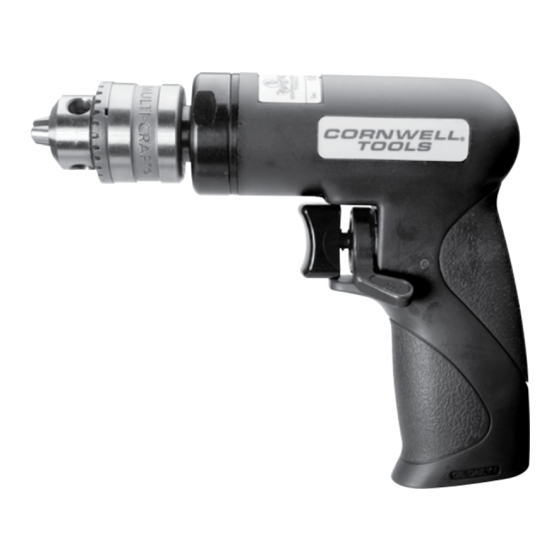

1/4" Reversible
Drill
All rights reserved.
Rev. 02/24/09
