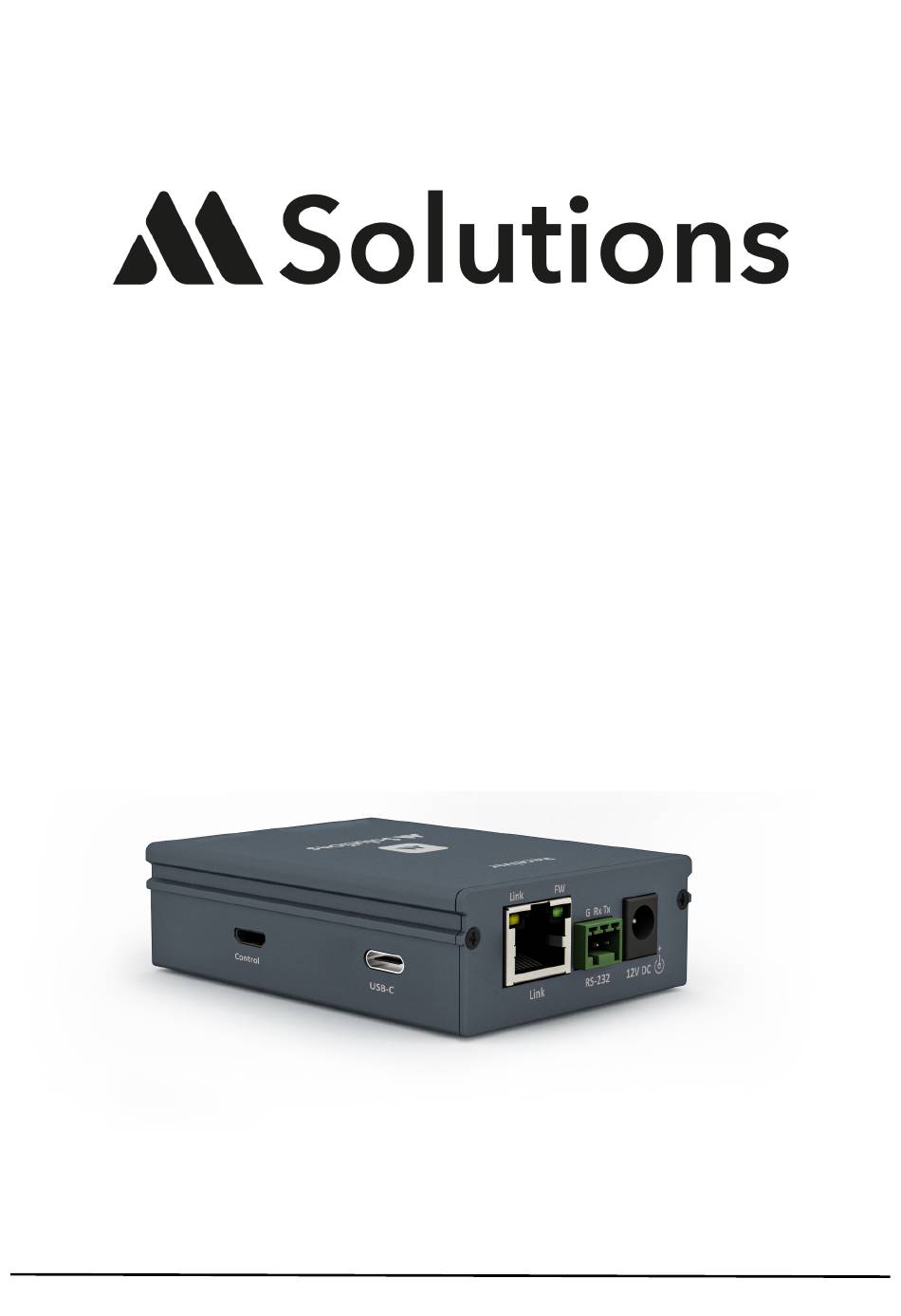

- Page 1 User Guide MS-6U1C USB-C Extender Set - up to 100m. PoC, RS-232 pass through Revision: 1.0 - Jun 2021...
- Page 2 MS-6U1C USER GUIDE Contents Introduction Key Features Connectivity Overview (Host and Device) Understanding the LED’s Cabling for HDBaseT Audio RS-232 Control & Power Specifications & Package Contents Schematic Notices • This MSolutions product contains electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
- Page 3 MS-6U1C USER GUIDE Introduction The MSolutions MS-6U1C is an entry level USB-C extender allowing for a single USB-C data channel to be extended to distances of up to 100m over a single CATx cable infrastructure. The extender features RS-232 serial pass-through and bi-directional 12V PoC (Power over Cable) expand the capabilities of this extender kit for a variety of commercial uses.
- Page 4 MS-6U1C USER GUIDE Connectivity Overview - Device Side panel: • Control - Micro USB for firmware and control (reserved for future use) • USB-C - connect USB-C peripheral Front panel: (rear panel is blank) • CATx Link - connect to Cat cable from receiver •...
- Page 5 MS-6U1C USER GUIDE Understanding the LED’s This MSolutions extender set includes status LED indicators on both the Host and Device products to show active connections and to further help integrators diagnose potential problems with the associated cabling. The RJ45 Link connections on both the host and device units have orange and green LED’s.
- Page 6 Power The MS-6U1C uses bi-directional PoC (Power over Cable) to provide power from either the Host or Device unit to the far side of the link over the Cat cable. Please only use the supplied 12V/2A DC...
- Page 7 MS-6U1C USER GUIDE Specifications Device Host • USB-C connectivity: 1 x USB-C (female) - • USB-C connectivity: 1 x USB-C (female) - peripheral host • USB control: 1 x Micro USB (female) • USB control: 1 x Micro USB (female) •...
- Page 8 MS-6U1C USER GUIDE Schematic...
- Page 9 www.m4sol.com...
